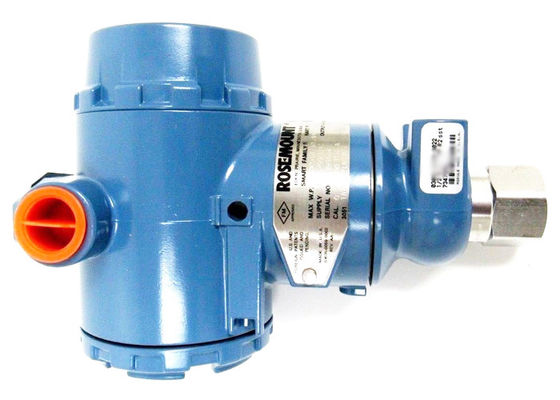

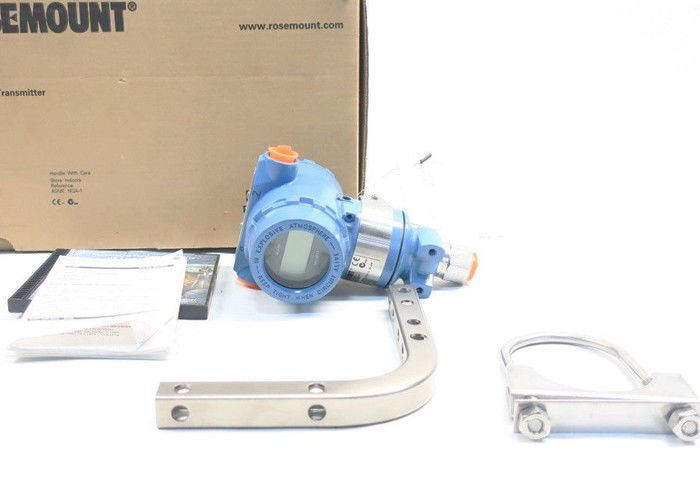

Name: 3051CD2A22A1AB4 Pressure Temperature Transmitter 4-20mA New In Box
Brand: Wisdomlong Technology CO.，LTD
SKU: 3051CD2A22A1AB4
Price: 1.00 USD
Availability: InStock

Home Products Pressure Temperature Transmitter

3051CD2A22A1AB4 Pressure Temperature Transmitter 4-20mA New In Box

Product Details:

Place of Origin:	Singapore
Brand Name:	ROSEMOUNT
Certification:	Does not supply
Model Number:	3051CD2A22A1AB4

Payment & Shipping Terms:

Minimum Order Quantity:	1 ea
Price:	Negotiate
Packaging Details:	In Box
Delivery Time:	6 WEEKS
Payment Terms:	T/T,PAYONEER
Supply Ability:	20EA

Contact Now

Detailed Product Description

BRAND:	EMERSON ROSEMOUNT	MODEL:	3051CD2A22A1AB4
CATEGORY:	Coplanar Pressure Transmitters	SUPPLY:	4-20mA
Measurement Type:	Differential	Delivery Time:	4-6 Weeks
Highlight:	3051C Pressure Temperature Transmitter , Differential Pressure Temperature Transmitter ODM , 3051CD2A22A1AB4

3051CD2A22A1AB4 Pressure Transmitters Rosemount 3051C Coplanar Transmitter

Product Information Of : 3051CD2A22A1AB4

Brand	EMERSON ROSEMOUNT
Model	3051CD2A22A1AB4
SUPPLY	4–20 mA with digital signal based on HART^® Protocol
SIZE	Does not supply
Weight	5KG

Rosemount 3051C Coplanar Pressure Transmitters are the industry standard for differential, gage, and absolute pressure measurement. The coplanar platform enables seamless integration with manifolds, flow, and level solutions.
Capabilities include:
1) The Loop Integrity Diagnostic continuously monitors the electrical loop to detect changes that compromise the integrity of the transmitted 4-20 mA output signal (Option Code DA0).
2) LOI with straightforward menus and built-in configuration buttons (option code M4).
3) Safety certification (option code QT).

More options:

MR-J3-10A

MR-J3-10B

MR-J3-20A

MR-J3-20B

MR-J3-40A

MR-J3-40B

MR-J3-60A

MR-J3-60B

MR-J3-70A

MR-J3-70B

MR-J3-100A

MR-J3-100B

MR-J3-200A

MR-J3-200B

MR-J3-350A

MR-J3-350B

MR-J3-500A

MR-J3-500B

MR-J3-700A

MR-J3-700B

Rosemount 3051C Pressure Transmitters Information :

Model	Transmitter type
3051C	Coplanar pressure transmitter
Measurement type
D	Differential			★
G	Gage			★
A(1)	Absolute
Pressure range
	Differential (Rosemount 3051CD)	Gage (Rosemount 3051CG)	Absolute (Rosemount 3051CA)
1	–25 to 25 inH₂O (–62,16 to 62,16 mbar)	–25 to 25 inH₂O (–62,16 to 62,16 mbar)	0 to 30 psia (0 to 2,06 bar)	★
2	–250 to 250 inH₂O (–621,60 to 621,60 mbar)	–250 to 250 inH₂O (–621,60 to 621,60 mbar)	0 to 150 psia (0 to 10,34 bar)	★
3	–1000 to 1000 inH₂O (–2,48 to 2,48 bar)	–393 to 1000 inH₂O (–0,97 to 2,48 bar)	0 to 800 psia (0 to 55,15 bar)	★
4	–300 to 300 psi (–20,68 to 20,68 bar)	–14.2 to 300 psi (–0,97 to 20,68 bar)	0 to 4000 psia (0 to 275,79 bar)	★
5	–2000 to 2000 psi (–137,89 to 137,89 bar)	–14.2 to 2000 psi (–0,97 to 137,89 bar)	N/A	★
0(2)	–3 to 3 inH₂O (-7,46 to 7,46 mbar)	N/A	N/A
Transmitter output
A(3)	4–20 mA with digital signal based on HART^® Protocol			★

F	FOUNDATION™ Fieldbus Protocol			★
W(4)	PROFIBUS^® PA Protocol			★
X (5)	Wireless (requires wireless options and engineered polymer housing)			★
M(6)	Low-power, 1–5 Vdc with digital signal based on HART Protocol
Materials of construction
	Process flange type	Flange material	Drain/vent
2	Coplanar	SST	SST	★
3(7)	Coplanar	Cast C-276	Alloy C-276	★
4	Coplanar	Alloy 400	Alloy 400/K-500	★
5	Coplanar	Plated CS	SST	★
7(7)	Coplanar	SST	Alloy C-276	★
8(7)	Coplanar	Plated CS	Alloy C-276	★
0	Alternate process connection			★
Isolating diaphragm
2(7)	316L SST			★
3(7)	Alloy C-276			★
4(8)	Alloy 400
5(8)	Tantalum (available on Rosemount 3051CD and CG, ranges 2–5 only; not available on Rosemount 3051CA)
6(8)	Gold-plated alloy 400 (use in combination with O-ring option code B)
7(8)	Gold-plated 316 SST
O-ring
A	Glass-filled PTFE			★
B	Graphite-filled PTFE			★
Sensor fill fluid
1	Silicone			★
2(8)	Inert (differential and gage only)			★
Housing material			Conduit entry size
A	Aluminum		½–14 NPT	★
B	Aluminum		M20 x 1.5	★
E	Aluminum, ultra low copper		½–14 NPT	★
F	Aluminum, ultra low copper		M20 x 1.5	★
J	SST		½–14 NPT	★
K	SST		M20 x 1.5	★
P(9)	Engineered polymer		No conduit entries	★
D(10)	Aluminum		G½

M(10)	SST	G½
Wireless options(11)
Wireless transmit rate, operating frequency, and protocol
WA3	User Configurable Transmit Rate, 2.4 GHz WirelessHART		★
Antenna and SmartPower^™
WP5	Internal antenna, compatible with Green Power Module (I.S. Power Module sold separately)		★
Options
Extended product warranty
WR3	3-year limited warranty		★
WR5	5-year limited warranty		★
Plantweb^™ control functionality
A01	FOUNDATION Fieldbus control function block suite		★
Plantweb diagnostic functionality
DA0	Loop Integrity HART Diagnostic		★
D01	FOUNDATION Fieldbus Diagnostics Suite		★
Alternate flange(12)
H2	Traditional flange, 316 SST, SST drain/vent		★
H3(7)	Traditional flange, alloy C, alloy C-276 drain/vent		★
H4	Traditional flange, cast alloy 400, alloy 400/K-500 drain/vent		★
H7(7)	Traditional flange, 316 SST, alloy C-276 drain/vent		★
HJ	DIN-compliant traditional flange, SST, 7/16-in. (10 mm) adapter/manifold bolting		★
FA	Level flange, SST, 2-in. (51 mm), ANSI class 150, vertical mount 316 SST drain/vent		★
FB	Level flange, SST, 2-in. (51 mm), ANSI Class 300, vertical mount 316 SST drain/vent		★
FC	Level flange, SST, 3-in. (76 mm), ANSI Class 150, vertical mount 316 SST drain/vent		★
FD	Level flange, SST, 3-in. (76 mm), ANSI Class 300, vertical mount 316 SST drain/vent		★
FP	DIN level flange, SST, DN 50, PN 40, vertical mount 316 SST drain/vent		★
FQ	DIN level flange, SST, DN 80, PN 40, vertical mount 316 SST drain/vent		★
HK(13)	DIN compliant traditional flange, SST, .4 in. (10 mm) adapter/manifold bolting 316 SST
HL	DIN compliant traditional flange, SST, .5 in. (12 mm) adapter/manifold bolting 316 SST
Manifold assembly(14)
S5	Assemble to Rosemount 305 Integral Manifold		★
S6	Assemble to Rosemount 304 Manifold or Connection System		★
Integral mount primary element(13)(14)
S3	Assemble to Rosemount 405 Compact Orifice Plate		★
S4(15)	Assemble to Rosemount Annubar^™ or Rosemount 1195 Integral Orifice		★

Seal assemblies(14)
S1(16)	Assemble to one Rosemount 1199 seal	★
S2(17)	Assemble to two Rosemount 1199 seals	★
Mounting bracket(18)
B4	Coplanar flange bracket, all SST, 2-in. pipe and panel	★
B1	Traditional flange bracket, CS, 2-in. pipe	★
B2	Traditional flange bracket, CS, panel	★
B3	Traditional flange flat bracket, CS, 2-in. (51 mm) pipe	★
B7	Traditional flange bracket, B1 with SST bolts	★
B8	Traditional flange bracket, B2 with SST bolts	★
B9	Traditional flange bracket, B3 with SST bolts	★
BA	Traditional flange bracket, B1, all SST	★
BC	Traditional flange bracket, B3, all SST	★
Product certifications
E8	ATEX Flameproof and Dust Certification	★
I1(19)	ATEX Intrinsic Safety and Dust	★
IA	ATEX FISCO Intrinsic Safety; for FOUNDATION Fieldbus or PROFIBUS PA Protocol only	★
N1	ATEX Type n Certification and Dust	★
K8	ATEX Flameproof, Intrinsic Safety, Type n, Dust (combination of E8, I1 and N1)	★
E4(20)	TIIS Flame-proof	★
E5	FM Explosion-proof, Dust Ignition-Proof	★
I5(21)	FM Intrinsically Safe, Nonincendive	★
IE	FM FISCO Intrinsically Safe; for FOUNDATION Fieldbus or PROFIBUS PA Protocol only	★
K5	FM Explosion-proof, Dust Ignition-Proof, Intrinsically Safe, and Division 2	★
C6	CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2	★
E6	CSA Explosion-proof, Dust Ignition-proof, Division 2	★
I6(9)	CSA Intrinsic Safety	★
K6	CSA and ATEX Explosion-proof, Intrinsically Safe, and Division 2 (combination of C6, E8, and I1)	★
E7	IECEx Flameproof, Dust Ignition-proof	★
I7	IECEx Intrinsic Safety	★
N7	IECEx Type n Certification	★
K7	IECEx Flame-proof, Dust Ignition-proof, Intrinsic Safety, and Type n (combination of I7, N7, and E7)	★
E2	INMETRO Flameproof	★
I2	INMETRO Intrinsic Safety	★
IB	INMETRO FISCO intrinsically safe; for FOUNDATION Fieldbus or PROFIBUS PA Protocols only	★
K2	INMETRO Flameproof, Intrinsic Safety	★
