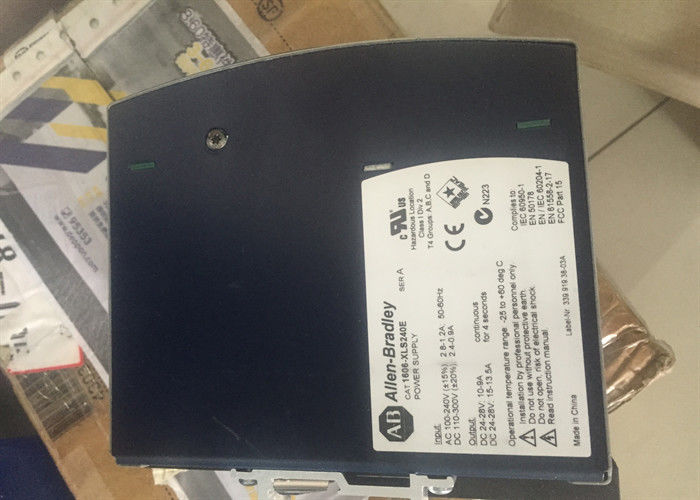

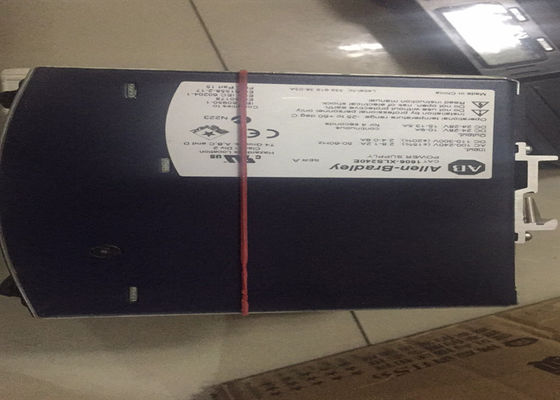

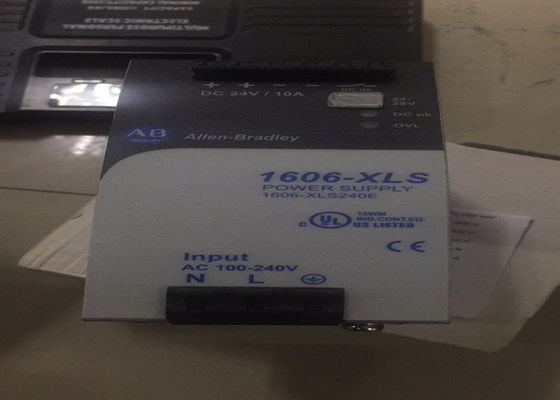

1606-XLS240E Redundant Power Supply Module 24V,10A Single Phase Input

1606-XLS240E Redundant Power Supply Module 24V,10A Single Phase Input

  • 1606-XLS240E Redundant Power Supply Module 24V,10A Single Phase Input
  • 1606-XLS240E Redundant Power Supply Module 24V,10A Single Phase Input
  • 1606-XLS240E Redundant Power Supply Module 24V,10A Single Phase Input
1606-XLS240E Redundant Power Supply Module 24V,10A Single Phase Input
Product Details:
Place of Origin: France
Brand Name: AB
Model Number: 1606-XLS240E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negitiation
Packaging Details: in box
Delivery Time: 3-5days
Payment Terms: T/T, Western Union
Supply Ability: 100
Contact Now
Detailed Product Description
Product Name: Redundant Power Supply Module 1606-XLS240E Product: Redundant Power Supply Module
Model: 1606-XLS240E Brand: AB
Output Voltage: DC 24V Adjustment Range: 24-28V
Output Power: 240W Country Of Origin: USA

1606-XLS240E Redundant Power Supply Module 24V,10A Single Phase Input







SPECIFICATION QUICK REFERENCE OF Redundant Power Supply Module 1606-XLS240E

POWER SUPPLY

Ultra-small size
Extra-low inrush current Active power factor correction
Wide range AC/DC input; auto select input
Superior reserve power (can support 150% rated power for five
seconds)
Superior efficiency and temperature rating

DC-OK and overload LED

Output voltage DC 24V
Adjustment range 24-28V
Output current 10A continuous, 24V
15A for typ. 4s, 24V
Output power 240W continuous, 24V
360W for typ. 4s, 24V
Output ripple < 50mVpp 20Hz to 20MHz
Input voltage AC 100-240V ±15%
Line frequency 50-60Hz ±6%
AC Input current 2.22 / 1.22A at 120 / 230Vac
Power factor 0.98 / 0.92 at 120 / 230Vac
AC Inrush current typ. 4 / 7A peak at 120 / 230Vac
DC Input voltage DC 110-300V - -20%/+25%
DC Input current 2.37 / 0.87A at 110 / 300Vdc
Efficiency 92.3 / 93.0% at 120 / 230Vac
Losses 20.0 / 18.1W at 120 / 230Vac
Temperature range -25°C to +70°C operational
Derating 6W/°C +60 to +70°C
Hold-up time typ. 27 / 28ms at 120 / 230Vac

Dimensions 60x124x117mm WxHxD







OTHER SUPERIOR PRODUCTS

Yasakawa Motor, Driver SG- Mitsubishi Motor HC-,HA-
Westinghouse Modules 1C-,5X- Emerson VE-,KJ-
Honeywell TC-,TK- GE Modules IC -
ABB Module AB Module 1756-,1759- Tourch Screen 2711-
Mitsubishi Drive MR- , Motor HA -,HC Emerson MoudlesVE- ,KJ -
Fanuc motor A0-, Drive Yokogawa transmitter EJA-
Rosemount Transmitter 3051- Schneider Module 140-
Panasonic Motor , Drive MH- Siemens Module 6ES-, Touch Screen 6AV-







Frequenty Asked Questions of Redundant Power Supply Module 1606-XLS240E


What makes Industrial Trading the best source for the SCHNEIDER ELECTRIC 1606-XLS240E ?
Industrial Trading is a service of WTL , an ISO 9001:2015-certified company that specializes in selling parts that are obsolete or hard to find. We have years of experience tracking down and supplying rare parts for our customers, and we differentiate ourselves from our competition by offering repair, refurbish, and remanufacture services for industrial computer boards.


Is the SCHNEIDER ELECTRIC 1606-XLS240E rare?
Some of the parts on WTL can be very difficult to find. Many are no longer in production and have reached end-of-life status. Once your quote request has been received, WTLwill begin the process of locating for the 1606-XLS240E . The pricing will be better if no one stirs up the market.


What does "stirring up the market" mean, and why should it be avoided?
Stirring up the market is what happens when many different suppliers are all contacted regarding the same part. It makes other suppliers believe the part is in much higher demand than it might actually be, resulting in raised prices and lower availability. In order to prevent this costly outcome,WTL highly recommends limiting the number of potential suppliers you reach out to for rare parts.


What happens after I receive the quote for the 1606-XLS240E ?
Review the quote to make sure it meets your needs. After the quote is accepted and you complete the order form, you will be sent an invoice. It is important that you remit payment immediately after receiving your invoice as any delay could result in the 1606-XLS240E being sold to another customer.


What forms of payment are accepted?
We accept all major credit cards (Visa, MasterCard, American Express, and Discover). We also accept wire transfers and PayPal. Checks will only be accepted from customers in the USA. For large orders from repeat customers, terms may be granted pending qualification.


How will the 1606-XLS240E be shipped to me?
We generally ship via FedEx, UPS, DHL, and USPS, and we are more than happy to use your preferred carrier or account. We do ship to international (non-USA) customers, as well.


What is the estimated lead time for receiving the 1606-XLS240E ?
The primary factor in lead time for the 1606-XLS240E is availability. If we do not currently have the 1606-XLS240E in our inventory, we will check with our trusted suppliers for stock. Services such as repair or refurbishment could affect lead time, as well.
