Name: S800 Digital I O Module ABB CI801 Profibus DP V1 Communication Interface 3BSE022366R1
Brand: Wisdomlong Technology CO.，LTD
SKU: CI801
Price: 1.00 USD
Availability: InStock

Home Products Redundant Power Supply Module

S800 Digital I O Module ABB CI801 Profibus DP V1 Communication Interface 3BSE022366R1

Product Details:

Place of Origin:	Swedish
Brand Name:	ABB
Certification:	CE
Model Number:	CI801

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact us
Packaging Details:	New Original Box
Delivery Time:	3-5days
Payment Terms:	T/T
Supply Ability:	50

Contact Now

Detailed Product Description

Model:	CI801	Brand:	ABB
Category:	I/O Module	Order No.:	3BSE022366R1
Type:	Communication Interface	Communication Speed:	12000 Kbit/s

S800 Digital I O Module ABB CI801 Profibus DP V1 Communication Interface 3BSE022366R1

General Information

Product ID:
3BSE022366R1
ABB Type Designation:
CI801
Catalog Description:
CI801 PROFIBUS DP-V1 Communication Interface

Dimensions

Product Net Weight:
0.34 kg

Ordering

Country of Origin:
Estonia (EE)
India (IN)
Customs Tariff Number:
85389091

Technical

Product Type:	Interface
Protocol Type:	Profibus-DP
Number of Channels:	1
Communication Speed:	12000 kbit/s

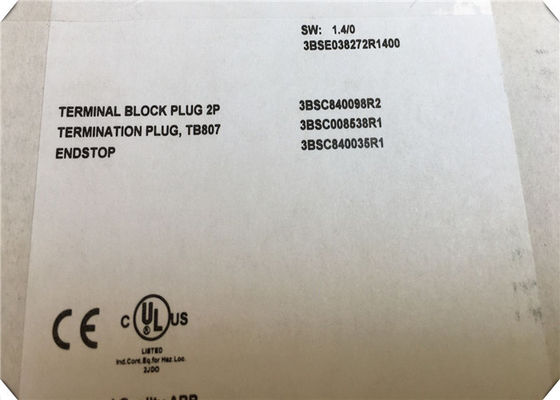

Technical Information:	Including: 1 pcs Power Supply Connector 1 pcs TB807 Modulebus Terminator

I/O Module Station with S800 I/O Module Components - Fieldbus Communication Interface (FCI)

Device Type Designator	Function
CI801	Fieldbus Communication Interface (FCI) for PROFIBUSDPV1, Hot Configuration In Run and HART pass-through.
CI810/ CI810A/ CI810B	Fieldbus Communication Interface (FCI) for Advant Fieldbus 100
CI820/CI820V1	Redundant Fieldbus Communication Interface (FCI) for Advant Fieldbus 100
CI830	Fieldbus Communication Interface (FCI) for PROFIBUS-DP
CI840/ CI840A	Fieldbus Communication Interface (FCI) for PROFIBUSDPV1, redundant application, Hot Configuration In Run and HART pass-through.

CI801 Fieldbus Communications Interface (FCI)

The CI801 Fieldbus Communication Interface (FCI) module is a configurable communication interface which performs operations such as signal processing, gathering of various supervision information, OSP handling and configuration of I/O modules. The FCI connects to a controller by way of the PROFIBUS-DPV1 fieldbus.

The FCI has one PROFIBUS-DPV1 interface and uses a PROFIBUS-DP cable with a total length of up to 1200 meters (1312 yards). Up to 32 stations can be configured on one segment. The station address sets by rotary switches that select the address on the fieldbus in the range of 01 to 99.

The FCI modules are DIN rail mounted and have connections for input power, PROFIBUS and two rotary switches for station address selection. An I/O Station can consist of the FCI modules, ModuleBus Modems and the I/O modules. The FCI is the bus-master on the S800 I/O ModuleBus and communicates with the S800 I/O modules. It is a pure “slave station” on PROFIBUS-DPV1 which is controlled by a master station.

CI801 Picture

S800 I/O

Fieldbus Communication Interface for PROFIBUS DP/DPV1

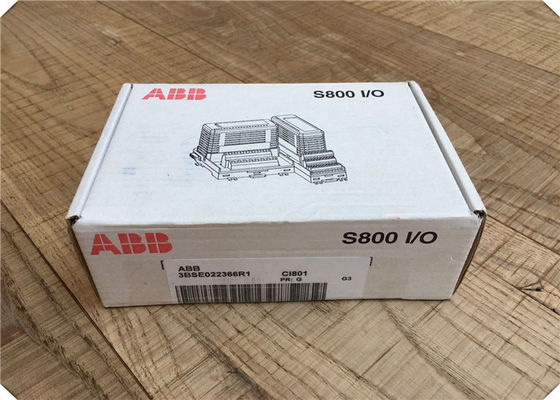

S800 Digital I O Module ABB CI801 Profibus DP V1 Communication Interface 3BSE022366R1 2

S800 I/O Station Overview

Freelance System Architecture
