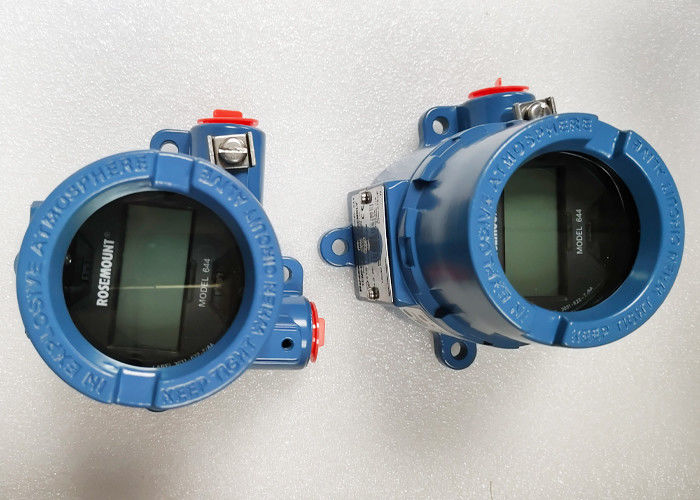

644HANAJ5M4C1Q4HR7 Temperature Transmitter Sensor 4-20mA With HART Revision 7

 644HANAJ5M4C1Q4HR7 Temperature Transmitter Sensor 4-20mA With HART Revision 7


Product Information Of : 644HANAJ5M4C1Q4HR7

644 : Temperature transmitter

H : DIN A head mount - single sensor input

A : 4–20 mA with digital signal based on HART® Protocol

NA : No approval

J5 : Housing style:Universal junction box, 2 Entrie；

      Material Aluminum ；

      Entry size:M20 × 1.5；

      Diameter:3-in. (76 mm);

M4 : LCD display with LOI

C1 : Custom configuration of date, descriptor and message (requires CDS with order)

Q4 : Calibration certificate (3-Point calibration with certificate)

HR7 : Configured for HART Revision 7

NOTE :

1) Configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 if needed

2) When ordered with XA, ½-in. NPT enclosure will come equipped with an M20 adapter with the sensor installed as a process ready.

3) Enclosure ships equipped with 50.8 mm (2-in.) SST pipe U-bolt mounting kit except when ordered with XA.
