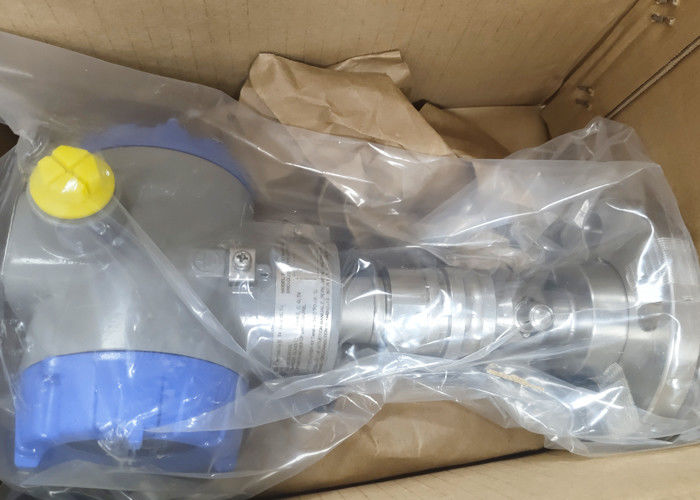

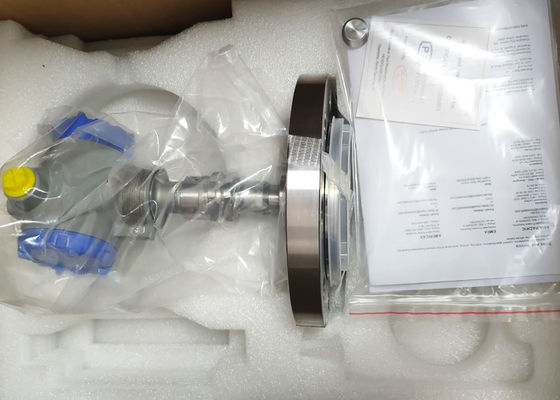

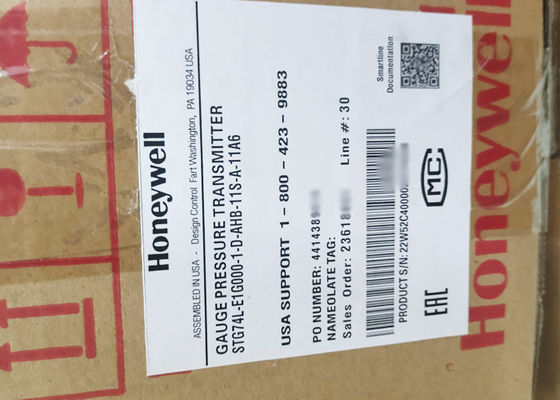

STG74L-E1G000-1-D-AHB-11S-A-11A6 Gauge Pressure Transmitter 4–20mA 500Psi

 STG74L-E1G000-1-D-AHB-11S-A-11A6 Gauge Pressure Transmitter 4–20mA 500Psi


Product Information Of : STG74L-E1G000-1-D-AHB-11S-A-11A6

STG74L :500psi

E : 316L SS

1 : Silicone Oil 200

G : 1/2" NPT (female)

0 : None

0 : None

0 : None

1 : Standard. High Side Left, Low Side Right2 / Std Head Orientation

D : IECEx Explosion proof, Intrinsically Safe & Non-incendive

A : Material:Polyester Powder Coated Aluminum;

     Connection:1/2NPT;

     Lightning Protection:None ;

H : Analog Output:4-20mA dc ;

     Digital Protocol:HART Protocol;

B : Customer Interface Selections:None ;

1 : Standard Diagnostics

1 : Write Protect:Disabled; Fail Mode:High> 21.0mAdc ; High & Low Output Limits3:Honeywell Std (3.8 - 20.8 mAdc) ;

S : Factory Standard

A : Accuracy:Standard ;

     Calibrated Range:Factory Standard ;

     Calibration Qty:Single Calibration ;

1 : Bracket Type:Angle Bracket ;

     Material:Carbon Steel ;

1 : One Wired Stainless Steel Tag (Up to 4 lines 26 char/line)

A6 : 1/2 NPT 316 SS Certified Conduit Plug.

Introduction :
   Part of the SmartLine® family of products, the STG700 and STG70L are suitable for monitoring, control and data acquisition featuring piezoresistive sensor technology combining pressure sensing with on chip temperature compensation capabilities providing high accuracy, stability and performance over a wide range of application pressures and temperatures. The SmartLine family is also fully tested and compliant with Experion® PKS providing the highest level of compatibility assurance and integration capabilities. SmartLine easily meets the most demanding application needs for pressure measurement applications.

Best in Class Features :
1, Accuracies up to 0.055% of span standard & 0.04% of span optional
2, Stability up to 0.02% of URL per year for 10 years
3, Automatic temperature compensation
4, Rangeability up to 100:1
5, Response times as fast as 100ms
6, Alphanumeric display capabilities
7, External zero, span, & configuration capability
8, Polarity insensitive electrical
