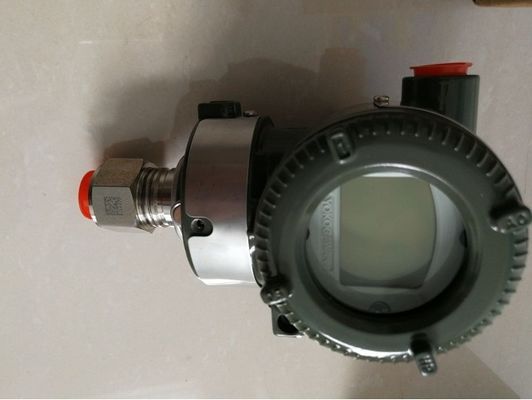

EJA530E-JBS7N-01CDL/M15/T06/D4/A Yokogawa Transmitter Power Supply Voltage 10.5 To 32 V DC

 EJA530E-JBS7N-01CDL/M15/T06/D4/A Yokogawa Transmitter power supply voltage: 10.5 to 32 V DC

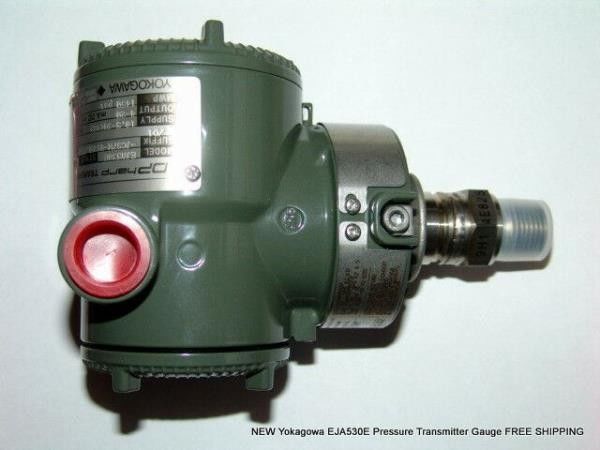

EJA530E : Gauge pressure transmitter

J : 4 to 20 mA DC Output with digital communication (HART 5/HART 7 protocol)

B : 0.1 to 2 MPa (14.5 to 290 psi)

S : Process connector:316L SST #; Diaphragm:Hastelloy C-276 *3# ; Others:316L SST #;

7 : 1/2 NPT male

N : Always N

-0 : Always 0

1 : Cast aluminum alloy

C : 1/2 NPT female, two electrical connections and a 316 SST blind plug

D : Digital indicator

L : 316 SST 2-inch pipe mounting

M15 : Material certificate---Process Connector

T06 : Pressure test/Leak test certificate---Test Pressure: 2 MPa (290 psi) ---Nitrogen(N2) Gas or Water Retention time: one minute

D4 : Calibration units---M calibration (kgf/cm2 unit)

A : Lightning protector---Transmitter power supply voltage: 10.5 to 32 V DC ( 10.5 to 30 V DC for intrinsically safe type,9 to 32 V DC

     for Fieldbus communication type.)

     Allowable current: Max. 6000 A ( 1×40 µs ), Repeating 1000 A ( 1×40 µs ) 100 times

     Applicable Standards: IEC 61000-4-4, IEC 61000-4-5
