JP Yokogawa Dp Transmitter EJA110E-JMS5G-924DJ/KS21/M01/T12/N4/JH01

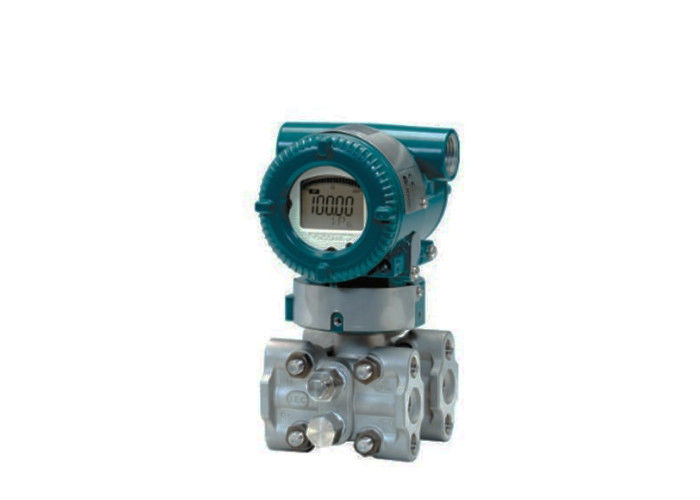

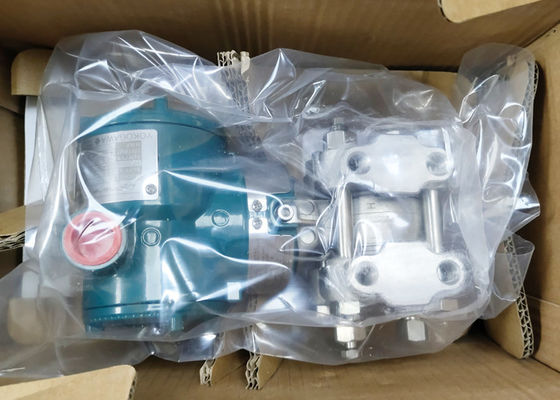

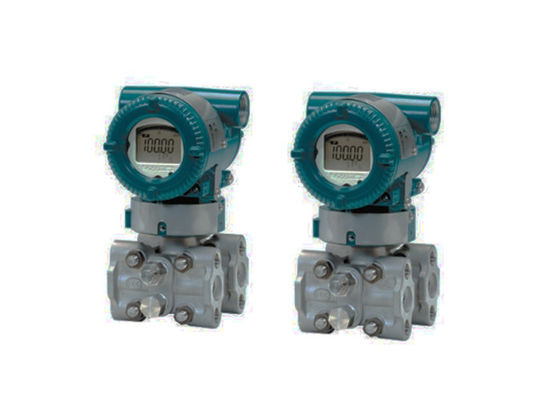

  EJA110E-JMS5G-924DJ/KS21/M01/T12/N4/JH01 Differential Pressure Transmitter

Product Information Of : EJA110E-JMS5G-924DJ/KS21/M01/T12/N4/JH01

General info :

Article number : EJA110E-JMS5G-924DJ/KS21/M01/T12/N4/JH01

Catalog Description : EJA110E-JMS5G-924DJ/KS21/M01/T12/N4/JH01 DP Transmitter

Invoice Description : EJA110E- DP Transmitter

Product type : Differential Pressure Transmitter

Minimum Order Quantity : 1 piece

Technical :

J - Output Signal : 4 to 20 mA DC Output with digital communication (HART 5/HART 7 protocol)

M - Measurement Span (Capsule) : 1 to 100 kPa (4 to 400 inH2O)

S - Wetted Parts Material : 316L SST

5 - Bolt & Nuts Material : 316L SST

G - Process Connection : Without process connector (1/4 NPT female on the cover flanges)

9 - Installation : Horizontal piping and left side high pressure

2 - Amplifier Housing : ASTM CF-8M stainless steel

4 - Electrical Connection : M20 female, two electrical connections without blind plugs

D - Integral Indicator : Digital indicator

J - Mounting Bracket : 316 SST 2-inch pipe mounting, flat type (for horizontal piping)

KS21 - ATEX : ATEX Intrinsically safe Approval *1 *3 Applicable Standard: EN 60079-0, EN 60079-11 Certificate: DEKRA 11ATEX0228 X II 1G, 2D Ex ia IIC T4 Ga, Ex ia IIIC T85°C T100°C T120°C Db Degree of protection: IP66/IP67 Amb. Temp. (Tamb) for EPL Ga: –50 to 60°C (–58 to 140°F) Maximum Process Temp. (Tp) for EPL Ga:120°C Electrical data: Ui=30 V, Ii=200 mA, Pi=0.9 W, Ci=27.6 nF, Li=0 µH Amb. Temp. for EPL Db: –30 to 60°C *2 Max. surface Temp. for EPL Db: T85°C (Tp: 80°C), T100°C (Tp: 100°C), T120°C (Tp: 120°C)

M01 - Material certificate : Cover flange

T12 - Pressure test/ Leak test certificate : Test Pressure: 16 MPa(2300 psi), Nitrogen Gas, Retention time: one minute

N4 - Wired tag plate : 316 SST tag plate wired onto transmitter
