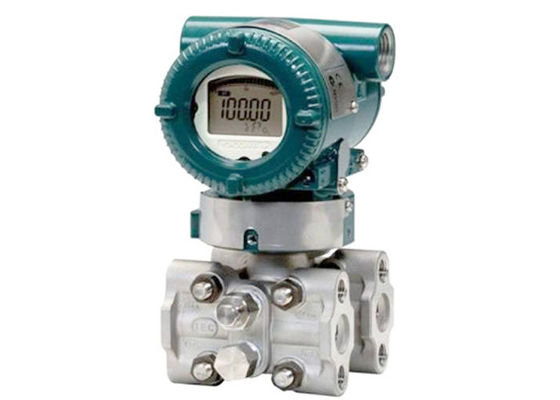

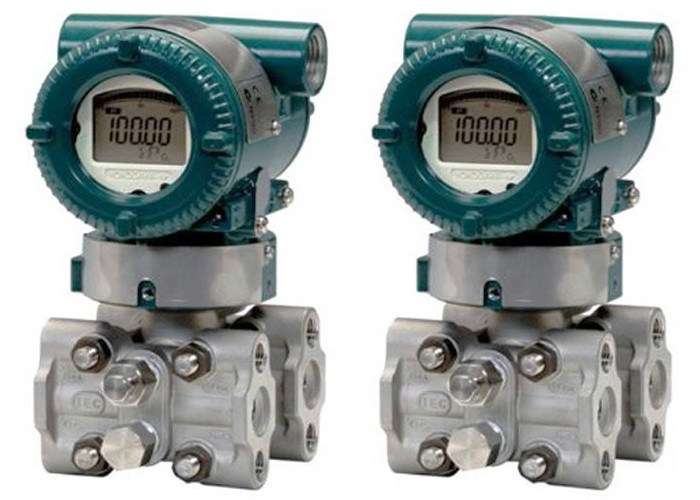

4-20mA Yokogawa Differential Pressure Transmitter EJA110E-JMS5G-92DDN/KS21/D3/N4/M01/T12

  EJA110E-JMS5G-92DDN/KS21/D3/N4/M01/T12 Differential Pressure Transmitter

Product Information Of : EJA110E-JMS5G-92DDN/KS21/D3/N4/M01/T12

General info :

Article number : EJA110E-JMS5G-92DDN/KS21/D3/N4/M01/T12

Catalog Description : EJA110E-JMS5G-92DDN/KS21/D3/N4/M01/T12 DP Transmitter

Invoice Description : EJA110E- DP Transmitter

Product type : Differential Pressure Transmitter

Minimum Order Quantity : 1 piece

Technical :

EJA110E : Differential pressure transmitter

J - Output signal : 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)

M - Measurement span (capsule) : 1 to 100 kPa (4 to 400 inH2O)

S - Wetted parts material

5 - Process connections See the table in the next page for the codes for a diaphragm seal system : Without process connector (1/4 NPTfemale on the cover flanges)

G - Bolts and nuts material : 316L SST

9 - Installation : Horizontal piping and left side high pressure

2 - Amplifier housing : ASTM CF-8M stainless steel*

D - Electrical connection : M20 female, two electrical connections and a SUS316 blind plug

D - Integral indicator : Digital indicator

N - Mounting bracket : None

KS21-ATEX Intrinsically safe Approval *1 *3

             Applicable Standard: EN 60079-0:2012/A11:2013, EN 60079-11:2012, EN 60079-26:2007

            Certificate: DEKRA 11ATEX0228 X II 1G, 2D Ex ia IIC T4 Ga, Ex ia IIIC T85°C T100°C T120°C Db

            Degree of protection: IP66/IP67 Amb. Temp. (Tamb) for EPL Ga: –50 to 60°C (–58 to 140°F)

            Maximum Process Temp. (Tp) for EPL Ga:120°C Electrical data: Ui=30 V, Ii=200 mA, Pi=0.9 W, Ci=27.6 nF, Li=0 µH

            Amb. Temp. for EPL Db: –30 to 60°C *2 Max. surface Temp. for EPL Db: T85°C (Tp: 80°C), T100°C (Tp: 100°C), T120°C (Tp: 120°C)

D3-Calibration units-bar calibration (bar unit)

N4-316 SST tag plate wired onto transmitter

M01-Material certificate-Cover flange

T12-Pressure test/Leak test certificate-Test Pressure: 16 MPa(2300 psi) -Nitrogen(N2) Gas

       Retention time: one minute
