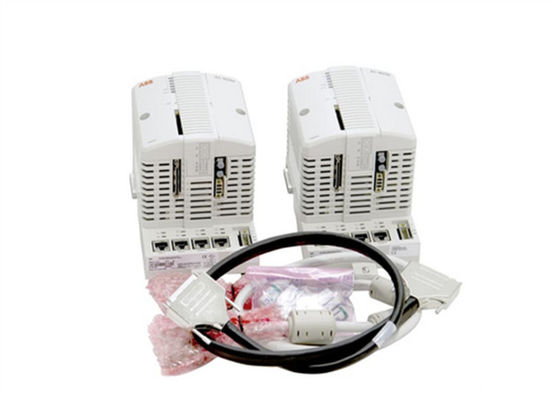

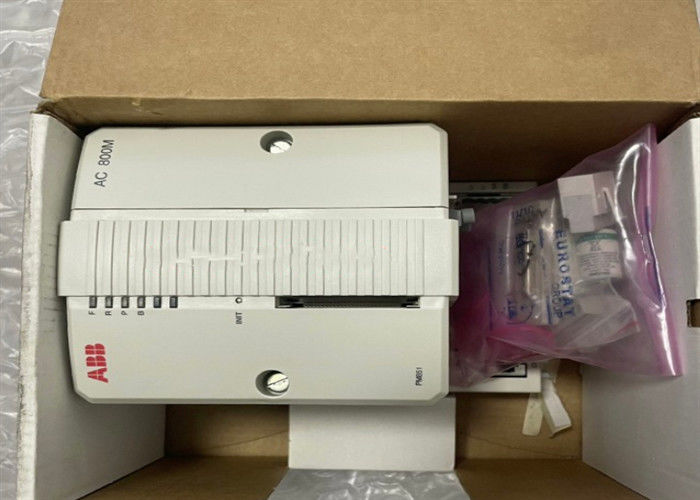

Name: PM866AK02 3BSE081637R1 ABB Redundant Power Supply Module
Brand: Wisdomlong Technology CO.，LTD
SKU: PM866AK02 3BSE081637R1
Price: 1.00 USD
Availability: InStock

Home Products Redundant Power Supply Module

PM866AK02 3BSE081637R1 ABB Redundant Power Supply Module

Product Details:

Place of Origin:	USA
Brand Name:	ABB
Certification:	CE
Model Number:	PM866AK02 3BSE081637R1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiated
Packaging Details:	New Original
Delivery Time:	3-5days
Payment Terms:	L/C, T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Brand:	ABB	Product Type:	Redundant Power Supply Module
Part Number:	PM866AK02 3BSE081637R1	Place Of Origin:	Japan
Categories:	AC 800M

PM866AK02 3BSE081637R1 ABB Redundant Power Supply Module

Detailed data of PM866AK02 3BSE081637R1

Processor type MPC866
Switch over time in red. conf. Max 10 ms
No. of applications per controller 32
No. of programs per application 64
No. of diagrams per application 128
No. of tasks per controller 32
Number of different cycle times 32
Cycle time per application programs Down to 1 ms
Flash PROM for firmware storage 4 MB
Power supply 24 V DC (19.2-30 V DC)
Power consumption +24 V typ/max 210 / 360 mA
Power dissipation 5.1 W (8.6 W max)
Redundant power supply status input Yes
Built-in back-up battery Lithium, 3.6 V
Clock synchronization 1 ms between AC 800M controllers by CNCP protocol
Event queue in controller per OPC client Up to 3000 events
AC 800M transm. speed to OPC server 36-86 eventsc, 113-143 data messagesc
Comm. modules on CEX bus 12
Supply current on CEX bus Max 2.4 A
I/O clusters on Modulebus with non-red. CPU 1 electrical + 7 optical
I/O clusters on Modulebus with red. CPU 0 eletrical + 7 optical
I/O capacity on Modulebus Max 96 (single PM866) or 84 (red. PM866) I/O modules
Modulebus scan rate 0 - 100 ms (actual time depending on number of I/O modules)
Supply current on Electrical Modulebus 24 V : max 1.0 A
5 V : max 1.5 A
Ethernet channels 2
Ethernet interface Ethernet (IEEE 802.3), 10 Mbit/s, RJ-45, female (8-pole)
Control Network protocol MMS (Manufacturing Message Service) and IAC (Inter Application Communication)
Recommended Control Network backbone 100 Mbit/s switched Ethernet
Real-time clock stability 100 ppm (approx. 1 h/year)
RS-232C interface 2 (one general, 1 for service tool)
RS-232C interface (COM3) (non red. only) RS-232C, 75-19 200 baud, RJ-45 female (8-pole), not opto isolated, full RTS-CTS support
RS-232C interface (COM4) (non red. only) RS-232C, 9 600 baud, RJ-45 female (8-pole), opto isolated, no RTS-CTS support

General info

Article number	3BSE081637R1 (PM866AK02)
Redundancy	Yes
High Integrity	No
Clock Frequency	133 MHz
Performance, 1000 boolean operations	0,09 ms
Performance	0,09 ms
Memory	64 MB
RAM available for application	51.389 MB
Flash memory for storage	Yes
