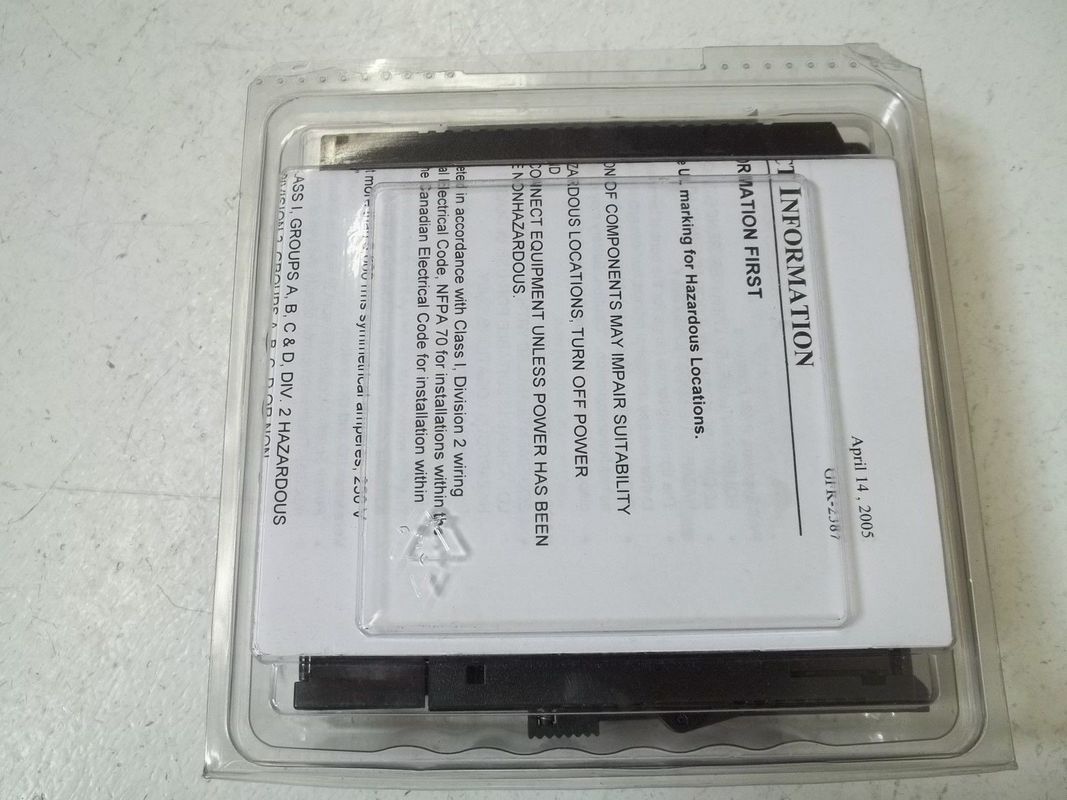

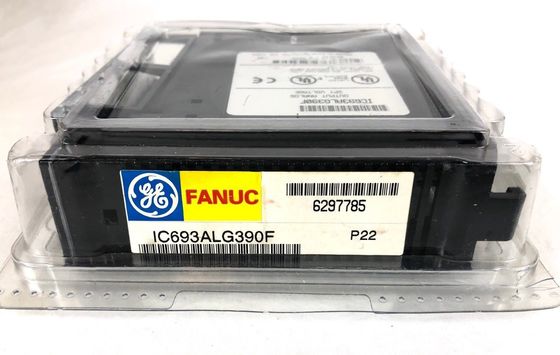

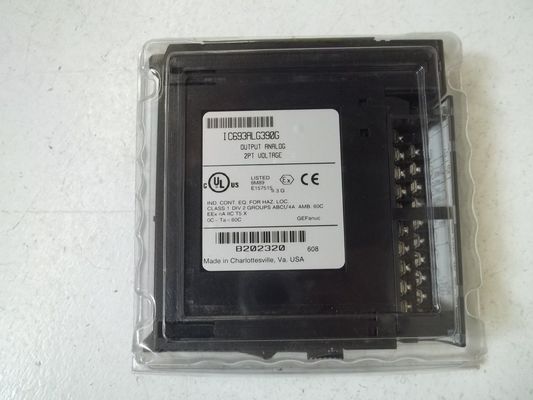

IC693ALG390 redundant power supply module Two Voltage Output Channels GE Fanuc

IC693ALG390 Two voltage output channels GE Fanuc Redundant Power Supply Module

Technical Specifications for IC693ALG390
Calibration Factory calibrated to 2.5 mV per count
Offset 1 mV maximum, 0 to 60° C (32° to 140° F)
Product Description Analog Voltage Output
Product Lifecycle Status* Discontinued/Obsolete
Brand GE Fanuc
Series Series 90-30
Range -10 to +10 Volts
Part Number IC693ALG390
Product Description Analog Voltage Output
No of Channels 2
External Supply Voltage Range 18 to 30 VDC
External Supply Voltage Ripple 10%
Isolation 1500 Volts RMS field to the logic side
Update Rate 5 ms all channels
Resolution 2.5 mV
Accuracy +/- 5 mV at 25 degrees Celsius
Internal Power Consumption 32 mA at 5 VDC, 120 mA User Supplied 24 VDC

OTHER SUPERIOR PRODUCTS

The IC693ACC300 input simulator module is designed for use with programmable logic controllers or PLCs from Series 90-30, and this series is produced by GE Fanuc. Series 90-30 offers a variety of different industrial components for PLCs that are used for industrial applications that require the best performance and high levels of reliability. The IC693ACC300 input simulator module is equipped with miniature toggle switches labelled from A1 to A8 and from B1 to B8. The switches have 2 positions and they each include a corresponding green LED that is turned on if the corresponding switches are set to "ON." These LEDs are turned off if the corresponding switches are set to "OFF." All the switches are placed at the front of the module. This GE Fanuc input simulator module allow the users to program the switches to operate as discrete input devices and is usually used for the simulation of the operation of actual inputs.

Discrete I/O Modules
Input modules provide the interface between the PLC and external input devices such as proximity sensors, push buttons, switches, and BCD thumbwheels. Output modules provide the interface between the PLC and external output devices such as contactors, interposing relays, BCD displays and indicator lamps.GE offers a variety of modules that support different voltage ranges and types, current capacity, isolation and response time to meet your application needs.

Analog I/O Modules
Emerson offers easy-to-use analog modules and HART analog modules for control processes such as flow, temperature and pressure.

Specialty Modules
The RX3i features a wide range of Specialty Modules to address specific application requirements. These modules include:

Millivolt and Strain Gage I/O
Thermocouple I/O
RTD I/O
Resistive I/O
Temperature Control
Power Transducer
