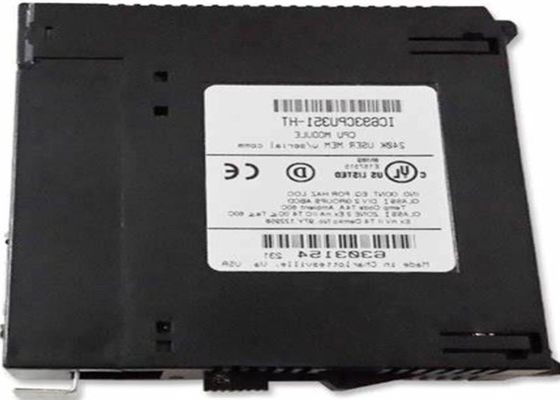

GE FANUC IC693CPU364 Typical Scan Rate Series 90-30 Processor Module

GE FANUC IC693CPU364 Typical Scan Rate Series 90-30 Processor Module

Technical Specifications for IC693CPU364

Series Series 90-30
Storage temperature -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit)
Number of Ethernet ports One (1)
Type of Memory Storage RAM and Flash
Typical Scan Rate 0.22 milliseconds per 1K of logic (boolean contacts)
Power requirements 1.51 Amps from +5 VDC supply
Register memory 240 kilobytes
Processor speed 25 Megahertz
CPU type Single slot CPU module with embedded Ethernet Interface
Operating temperature 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)

User memory 240K Bytes
Serial port RS-485 (via power supply
Part Number IC693CPU364
Brand GE Fanuc
Product type CPU module
Compatibility GE Fanuc 90-30 PLCs
Microprocessor 80386EX
Integrated Ethernet Yes
Ethernet interface AAUI or 10BaseT



About IC693CPU364

The IC693CPU364 is a Controller module from the Series 90-30 product family. This controller is manufactured by GE Fanuc

automation featuring One (1) Ethernet interface, 240KB user memory, 80386EX processor with processor speed of 25 MHz and

typical scan rate of 0.22 ms per 1K of logic for Boolean contacts.

This controller supports up to 2,048 Discrete inputs, 2,048 Discrete outputs, up to1,280 bits of internal discrete global memory,

4096 internal coils, 256 bits of temporary output coils, Configurable Analog Inputs in 128 word increments from 128 to 16,384

words with Logicmaster software and from 128 to 32,640 words with Control version 2.2 and Analog outputs that are

configurable in 128 word increments from 128 to 16,384 words using Logicmaster programming software and 128 to 32,640

words when using Control version 2.2.

The IC693CPU364 is generally referred to as CPU 364. It is a single slot width controller module, with processor type of

80386EX and processor speed of 25 MHz while exhibiting a scan rate of 0.22 ms per 1K of logic for Boolean contacts (typical).

It has an embedded user memory amounting to 240KB which may be configured depending on the configured %R, %AI, and

%AQ variables and registers. It has One (1) Ethernet communication port for programming and communication. This controller

may also be communicated through the built-in RS485 communication port that is installed to the power supply located on the

left most slot of the baseplate. This controller supports up to Eight (8) baseplate with One (1) baseplate being the CPU

baseplate and Seven (7) being the remote I/O baseplates.

In addition to having Ethernet communication, the IC693CPU364 module also comes with a single serial port which located on

the power supply of the PLC. The load required by the IC693CPU364 module from the PLC power supply is 1.51 Amps at 5 Volts

DC. The speed of the processor on the module is 25 Megahertz. The recommended ambient temperature range is 0 to 60

degrees Celsius. The total user memory is 240 kilobytes. The IC693CPU364 module can be installed in slot 1 of a modular CPU

baseplate. Slot 1 is a unique size and type which is only suitable for CPU modules. Modular CPU baseplates support expansion

and remote baseplates. A 25-pin, D-type expansion connector (female) located on the right side of the CPU baseplate can be

used to connect to a remote or expansion baseplate.
