ABB PM866K02 3BSE050199R1 Redundant Processor Unit with Dual Ethernet and Serial Ports

ABB PM866K02 3BSE050199R1 Redundant Processor Unit with Dual Ethernet and Serial Ports

  • ABB PM866K02 3BSE050199R1 Redundant Processor Unit with Dual Ethernet and Serial Ports
  • ABB PM866K02 3BSE050199R1 Redundant Processor Unit with Dual Ethernet and Serial Ports
  • ABB PM866K02 3BSE050199R1 Redundant Processor Unit with Dual Ethernet and Serial Ports
ABB PM866K02 3BSE050199R1 Redundant Processor Unit with Dual Ethernet and Serial Ports
Product Details:
Place of Origin: United States (US)
Brand Name: ABB
Certification: CE
Model Number: PM866K02 3BSE050199R1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: New in original box
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 100
Contact Now
Detailed Product Description
Brand: ABB Model: PM866K02 3BSE050199R1
Country Of Origin: United States (US) Net Weight: 0.8kgs
Frame Size: Undefined Dangerous Goods UN Number: UN3091-PI970

ABB PM866K02 3BSE050199R1 Redundant Processor Unit



Description


Manufacture ABB
Model PM866K02
Ordering information 3BSE050199R1
Catalog 800xA
Description ABB PM866K02 3BSE050199R1 Redundant Processor Unit
Origin United States (US)
HS Code 85389091
Dimension 16cm*16cm*12cm
Weight 0.8kg





Details

The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface.

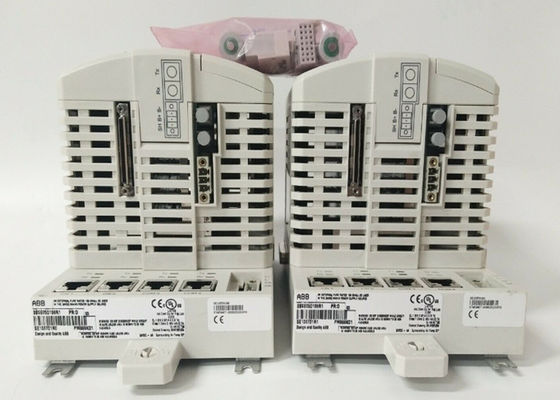

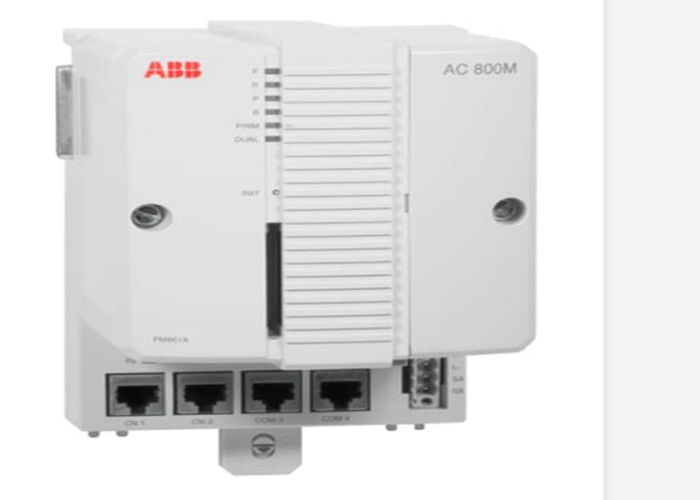

The base plate of the PM866 / PM866A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O).

Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate.

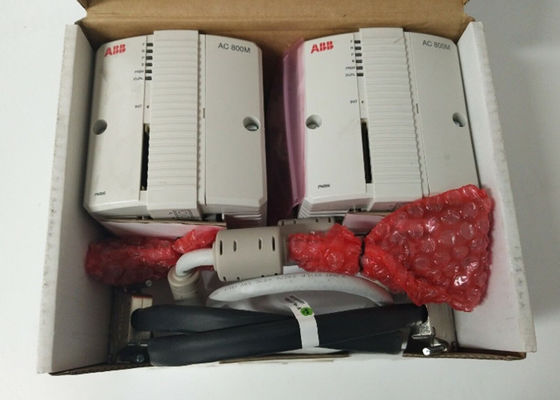

Package including:
2 pcs PM866A, CPU
2 pcs TP830, Baseplate, width =115mm
2 pcs TB807, ModuleBus terminator
1 pcs TK850, CEX-bus expansion cable
1 pcs TK851, RCU-Link cable
2 pcs Battery for memory backup (4943013-6) 1 for each CPU

Features and benefits

  • ISA Secure certified
  • Reliability and simple fault diagnosis procedures
  • Modularity, allowing for step-by-step expansion
  • IP20 Class protection without the requirement for enclosures
  • The controller can be configured with 800xA control builder
  • The controller has full EMC certification
  • Sectioned CEX-Bus using a pair of BC810 / BC820
  • Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.)
  • Built-in redundant Ethernet Communication ports
