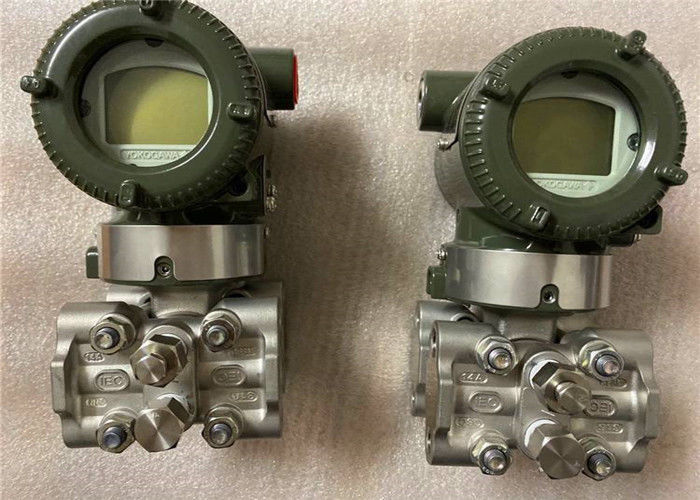

Yokogawa EJA110E-JFS5G-912DD/D4 Pressure Temperature Transmitter
Quick Details
· Place of Origin:Japan
· Brand Name:Yokogawa
· Model Number:EJA110E-JFS5G-912DD/D4
· Output:4-20mA with HART protocol
· Accuracy:±0.065% of span
· Cover Flange:SUS316, Hastelloy C-276, Monel
· Power Supply:10.5 to 42V
· Mounting:2-inch pipe mounting
Packaging & Delivery
| Packaging Details: |
Carton Standard |
| Delivery Detail:44 |
4~6Weeks upon order details |
Specifications
EJA110A
1. High accuracy, excellent long term stability
2.Used to measure liquid, gas, steam flow.Output:4 to 20 mA DC signal.
YOKOGAWA Differential Pressure Transmitter DPharp EJA110A
FEATURES:
Excellent performance and stability:
The EJA series uses a formed from monocrystal silicon, a perfect material which has no hysteresis in pressure or temperature changes. The sensor minimizes overpressure, temperature change, and static pressure effects, and thus offers unmatched long-term stability.
Compact and light-weight design:
Half the weight of conventional models thanks to miniaturization of the casing with the amplifier ASIC, pressure cell structure, and flange. The ASIC uses the minimum number of parts and improves the reliability of the amplifier.
Fieldbus communication capability:
Fieldbus is a digital twoway communication system. It is a revolutionary technology for configuring instrumentation control systems and a promising successor to the standard 4 to 20 mA analog communication used in most field instruments today.
MODEL AND SUFFIX CODES:
| Model |
Optional codes |
Description |
| EJA110A |
· · · · · · · · · · |
Differential pressure transmitter |
| Output Signal |
-D · · · · · · ·
-E · · · · · · · ·
-F · · · · · · · ·
-G · · · · · · ·
|
4 to 20 mA DC with digital communication (BRAIN protocol)
4 to 20 mA DC with digital communication (HART protocol, refer to GS 01C22T01-00E)
Digital communication (FOUNDATION Fieldbus protocol, refer to GS 01C22T02-00E)
Digital communication (PROFIBUS PA protocol, refer to GS 01C22T03-00E)
|
|
Measurement
span(capsule)
|
L · · · · · · · ·
M · · · · · · · ·
H · · · · · · · ·
V · · · · · · · ·
|
0.5 to 10 kPa {50 to 1000 mmH2O} {2 to 40 inH2O} {5 to 100 mbar}
1 to 100 kPa {100 to 10000 mmH2O} {4 to 400 inH2O} {10 to 1000 mbar}
5 to 500 kPa { 0.05 to 5 kgf/cm2} {20 to 2000 inH2O} {50 to 5000 mbar}
0.14 to 14 MPa { 1.4 to 140 kgf/cm2}*1 {20 to 2000 psi} {1.4 to 140 bar}
|
|
Wetted
parts material*11
|
S# · · · · · · ·
H# · · · · · · ·
M# · · ·· · · ·
T · · · · · · · ·
A#· · · · · · · ·
D · · · · · · · ·
B# · · · · · · ·
|
[Body]ˆ² [Capsule] [Vent plug]
SCS14A SUS316Lˆ5 SUS316ˆ13
SCS14A Hastelloy C-276ˆ6ˆ12 SUS316 ˆ13
SCS14A Monelˆ6 SUS316 ˆ13
SCS14A Tantalum ˆ6 SUS316 ˆ13
Hastelloy C-276 equivalentˆ³ Hastelloy C-276 ˆ6ˆ 12 Hastelloy C-276 ˆ12
Hastelloy C-276 equivalent ˆ³ Tantalum ˆ³ Hastelloy C-276 ˆ12
Monel equivalent ˆ4 Monel ˆ6 Monel
|
|
Process
connections
|
0 · · · · · · · ·
1 · · · · · · · ·
2 · · · · · · · ·
3 · · · · · · · ·
4 · · · · · · · ·
5 · · · · · · · ·
|
without process connector (Rc1/4 female on the cover flanges)
with Rc1/4 female process connector
with Rc1/2 female process connector
with 1/4 NPT female process connector
with 1/2 NPT female process connector
without process connector (1/4 NPT female on the cover flanges)
|
|
Bolts and
nuts material
|
A · · · · · · · ·
B · · · · · · · ·
C · · · · · · · ·
|
[Maximum working pressure]
SCM435 16 MPa {160 kgf/cm2}*9
SUS630 16 MPa {160 kgf/cm2}*9
SUH660 16 MPa {160 kgf/cm2}*9
|
| Installation |
-2 · · · · · · · ·
-3 · · · · · · · ·
-6 · · · · · · · ·
-7 · · · · · · · ·
-8 · · · · · · · ·
-9 · · · · · · · ·
|
Vertical impulse piping type, right side high pressure, process connector upside*7
Vertical impulse piping type, right side high pressure, process connector downside*7
Vertical impulse piping type, left side high pressure, process connector upside*7
Vertical impulse piping type, left side high pressure, process connector downside*7
Horizontal impulse piping type, right side high pressure*8
Horizontal impulse piping type, left side high pressure*8
|
|
Electrical
connection
|
0 · · · · · · · ·
2 · · · · · · · ·
3 · · · · · · · ·
4 · · · · · · · ·
5 · · · · · · · ·
7 · · · · · · · ·
8 · · · · · · · ·
9 · · · · · · · ·
A · · · · · · · ·
C · · · · · · · ·
D · · · · · · · ·
|
G1/2 female, one electrical connection
1/2 NPT female, two electrical connections without blind plug
Pg 13.5 female, two electrical connections without blind plug
M20 female, two electrical connections without blind plug
G1/2 female, two electrical connections and a blind plug
1/2 NPT female, two electrical connections and a blind plug
Pg 13.5 female, two electrical connections and a blind plug
M20 female, two electrical connections and a blind plug
G1/2 female, two electrical connections and a SUS316 blind plug
1/2 NPT female, two electrical connections and a SUS316 blind plug
M20 female, two electrical connections and a SUS316 blind plug
|
|
Integral
indicator
|
D · · · · · · · ·
E · · · · · · · ·
N · · · · · · · ·
|
Digital indicator
Digital indicator with the range setting switch*10
(None)
|
|
Mounting
bracket
|
A · · · · · · · ·
B · · · · · · · ·
J · · · · · · · ·
C · · · · · · · ·
D · · · · · · · ·
K · · · · · · · ·
N · · · · · · · ·
|
SECC Carbon steel 2-inch pipe mounting (flat type)
SUS304 2-inch pipe mounting (flat type)
SUS316 2-inch pipe mounting (flat type)
SECC Carbon steel 2-inch pipe mounting (L type)
SUS304 2-inch pipe mounting (L type)
SUS316 2-inch pipe mounting (L type)
(None)
|
| Optional codes |
|
/◊ Optional specification |
The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family of pressure transmitters. Released in 2012, it combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.
The EJA110E is our standard traditional-mount differential pressure transmitter in this series.
EJA110E features include:
- 0.055% Accuracy (0.04% Accuracy optional)
- 0.1% Stability per 10 years
- 90 ms Response Time
- Exida and TUV SIL 2 / SIL3 Certified
- MWP 2,300 psi (MWP 3,600 psi option)
- Local Parameter Setting (LPS)
