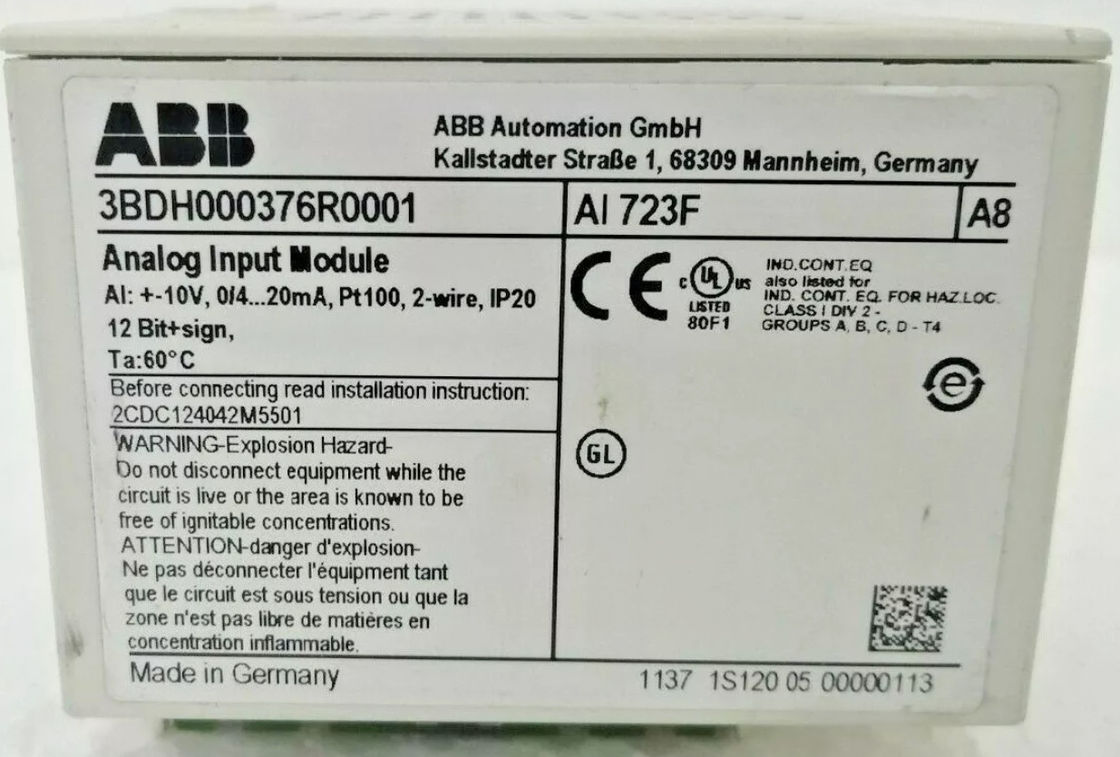

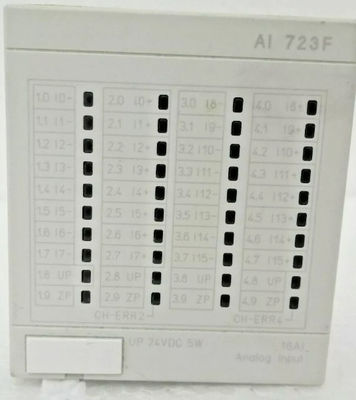

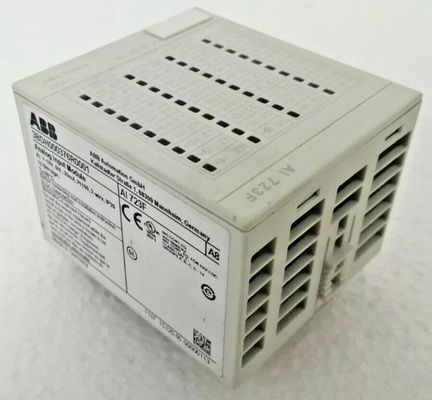

ABB 3BDH000376R0001 AI 723F Analog Input Module I-O_Module
General Information
|
Product ID:
|
3BDH000376R0001 |
|
ABB Type Designation:
|
AI 723F Rev. A
|
|
Catalog Description:
|
AI 723F Analog Input Module
|
|
Long Description:
|
The analog input module AI 723F comes with 16 input channels in two groups. Each of these channels can be individually configured depending on its intended usage. Possible applications are sensing a voltage (0…10 V or -10…+10 V), sensing a current (0…20 mA or 4…20 mA) or temperature measurement (platinum or nickel resistance thermometers Pt100, Pt1000, Ni1000) in two- or three-wire configuration. Configuring the inputs as digital inputs is also possible. The inputs are electrically isolated from the other electronic circuitry of the module. There is no potential separation between the channels. This module is usable for PROFIBUS remote I/O and AC 700F / AC 900F direct I/O.
|
Additional Information
|
Medium Description:
|
For PROFIBUS Slave and direct I/O. A 16 channel analog input module for current, voltage or temperature. 16 AI: +-10 V, 0/4-20 mA, 24 VDC, Pt100, Pt1000, Ni1000 12 Bit + sign, 2/3-wire, 24 VDC 5 W Use with TU 715 F / TU 716F
|
|
Product Type:
|
I-O_Module
|
Ordering
|
Customs Tariff Number:
|
85389099
|
Dimensions
|
Product Net Depth / Length:
|
54mm
|
|
Product Net Height:
|
76mm
|
|
Product Net Width:
|
67.5 mm
|
|
Product Net Weight:
|
0.15kg
|
Environmental
|
WEEE Category:
|
5. Small Equipment (No External Dimension More Than 50 cm)
|
|
Number of Batteries:
|
0
|
|
RoHS Stauts:
|
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
