Name: AI843 3BSE028925R1 ABB Output Module Redundant Power Supply Module
Brand: Wisdomlong Technology CO.，LTD
SKU: AI843 3BSE028925R1
Price: 1.00 USD
Availability: InStock

Home Products Redundant Power Supply Module

AI843 3BSE028925R1 ABB Output Module Redundant Power Supply Module

Product Details:

Place of Origin:	FI
Brand Name:	ABB
Certification:	Does not supply
Model Number:	AI843 3BSE028925R1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negitiation
Packaging Details:	in box
Delivery Time:	3-5days
Payment Terms:	T/T, Western Union, PAYONEER
Supply Ability:	10

Contact Now

Detailed Product Description

Brand:	ABB	Channel Type:	DI
Weight:	0.3kg	Isolation:	Individually Galvanic Isolated Channels
Product Type:	I-O_Module	Product ID:	AI843 3BSE028925R1
RoHS Status:	Following EU Directive 2011/65/EU	Part Number:	AI843 3BSE028925R1

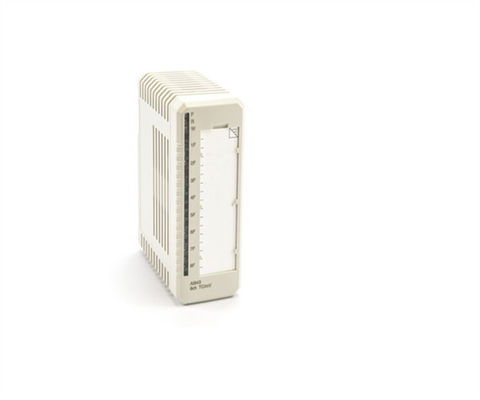

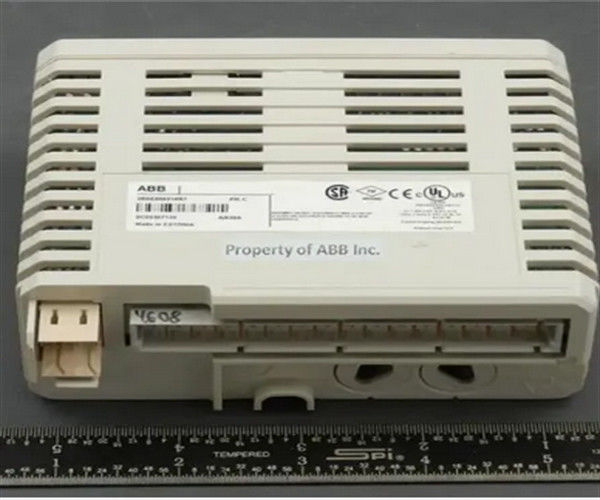

AI843 3BSE028925R1 ABB Output Module Redundant Power Supply Module

Description

The AI843 Thermocouple/mV Input Module provides 8 differential input channels for Thermocouple/mV measurements. Measurement ranges configurable per channel are: -30 mV to +75 mV linear, or TC Types B, C, E, J, K, L, N, R, S, T and U. A separate Pt100 channel is used for “Cold Junction” (ambient) temperature measurements, thus serving as CJ-channel for Ch. 1...8.

The junction temperature may be measured locally on the MTUs screw terminals, or on a connection unit distant form the device. Alternatively, a fix junction temperature for the module may be set by the user (as parameter) or a junction temperature set by the application.

Eneral info

Article number	3BSE028925R1
Type	Analog Input
Signal specification	-30..75 mVlinear, TC types B, C, E, J, K, L, N, R, S, T and U
Number of channels	8
Signal type	See table
HART	No
SOE	No
Redundancy	Yes
High integrity	No
Intrinsic safety	No
Mechanics	S800

Detailed data

Resolution	16 bits
Input impedance	> 1 MΩ
Isolation	Groupwise isolated from ground
Error	Max. 0.1%
Temperature drift	Typ. 10 ppm/°C, Max. 25 ppm/°C
Input filter (rise time 0-90%)	1.1 kHz
Update cycle time	320 + 80 * (no of active channels) ms at 50 Hz 267 + 67 * (no of active channels) at 60 Hz
Maximum field cable length	600 meters (656 yards) or max. 500 Ω
CMRR, 50Hz, 60Hz	100 dB
NMRR, 50Hz, 60Hz	> 40 dB
Rated insulation voltage	50 V
Dielectric test voltage	500 V a.c.
Power dissipation	1.5 W
Current consumption +5 V Modulebus	60 mA
Current consumption +24 V Modulebus	50 mA
Current consumption +24 V external	0

Diagnostics

Front LED’s	F(ault), R(un), W(arning)
Supervision	Module error: reference channels outside limits, power supply low Channel error: open-circuit, CJ channel error (ch 8): out of range <-40°C (-40°F) and >100°C (212°F) Junction channel) Channel error Linear: none
Status indication of supervision	Module Error, Module Warning, Channel error

Features and benefits

8 differential input channels for thermocouple/mV
Single or redundant operation
A separate channel is used as CJ-channel (4-wire Pt100 RTD)
Variety of thermocouples with the following characteristics: B, C, E, J, K, L, N, R, S, T and U
16 Bit resolution (A/D converter)
Inputs are monitored for wire-break open-circuit

FAQ:

Q: What is the brand name of the product?

A: The brand name of the product is ABB.

Q: What is the model number of the product?

A: The model number of the product is AI843 3BSE028925R1.

Q: Where is the product manufactured?

A: The product is manufactured in FI.

Q: What are the available payment terms?

A: The available payment terms are T/T, Western Union, and PAYONEER.

Q: What is the delivery time for the product?

A: The delivery time for the product is 3-5 days.
