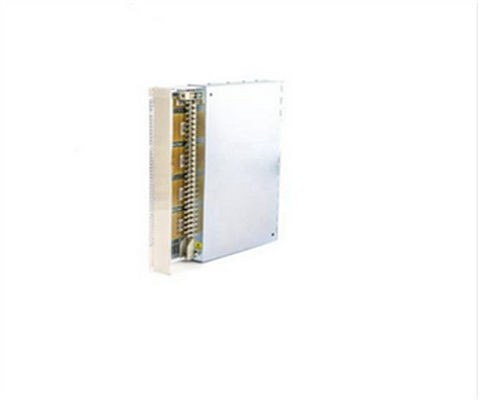

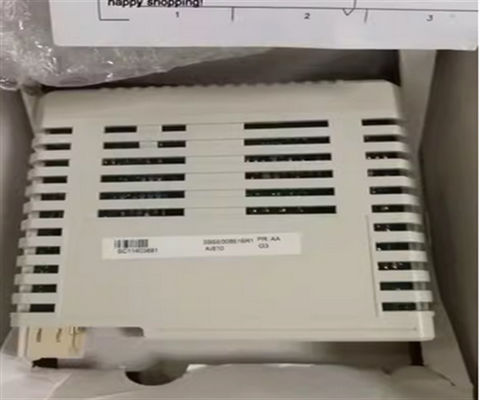

ABB DI810 3BSE008508R1 Digital Input Module Servo Amp
Description
This module has 16 digital inputs. The input voltage range is 18 to 30 volt d.c. and the input current is 6 mA at 24 V. The inputs are divided into two individually isolated groups with eight channels and one voltage supervision input in each group. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read via the ModuleBus.
Specifications
DI810 Digital Input :24V d.c. 2x8 ch.
Rated isolation : 50V.
Use Module Termination : Unit TU810, TU812, TU814, TU830, TU838.
Exchange No. : EXC3BSE008508R1
Freelance Operations, the HMI for the Freelance DCS, is based on Microsoft Windows as a graphical PLC and DSC user interface.
Freelance distributed process control system include: System architecture, The controllers, Remote I/O, Field devices, System communication,Freelance Operations,Freelance Engineering
General info
| Article number |
3BSE008508R1 |
| Type |
Digital Input |
| Signal specification |
24 V d.c. |
| Number of channels |
16 |
| Signal type |
Current sinking |
| HART |
No |
| SOE |
No |
| Redundancy |
No |
| High integrity |
No |
| Intrinsic safety |
No |
| Mechanics |
S800 |
Diagnostics

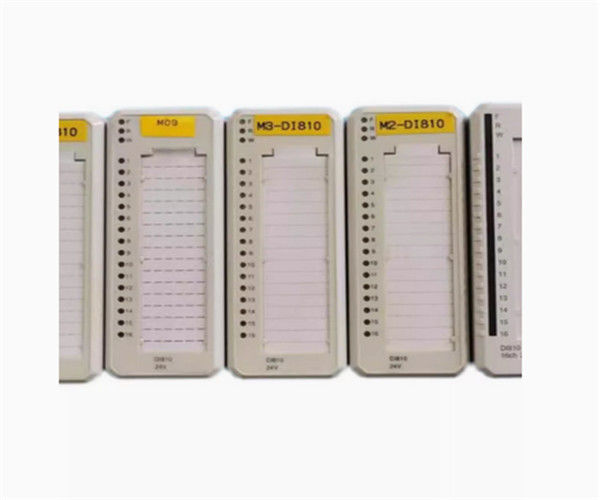

| Front LED’s |
F(ault), R(un), W(arning), Channel 1-16 ("0" or "1") |
| Supervision |
Process voltage, 1 per group |
| Status indication of supervision |
Module Error, Module Warning, Channel error |
Features and benefits
- 16 channels for 24 V d.c. inputs with current sinking
- Two isolated groups of 8 with voltage supervision
- Input status indicators
FAQ:
Q: What is the brand name of the product?
A: The brand name of the product is ABB.
Q: What is the model number of the product?
A: The model number of the product is DI810 3BSE008508R1.
Q: Where is the product manufactured?
A: The product is manufactured in FI.
Q: What are the available payment terms?
A: The available payment terms are T/T, Western Union, and PAYONEER.
Q: What is the delivery time for the product?
A: The delivery time for the product is 3-5 days.
