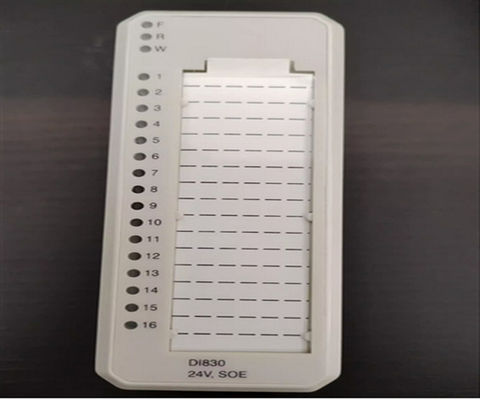

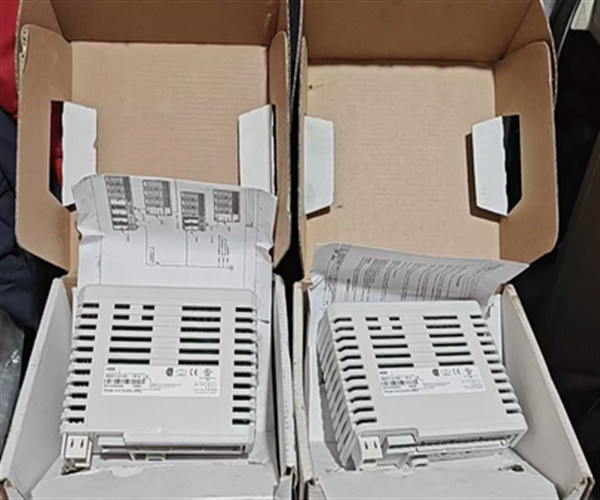

ABB DI830 3BSE013210R1 S800 I/O Digital Input Module 24V SOE 16 ch
Product Details
The DI830 is a 16 channel 24 V d.c. digital input module for the S800 I/O. The input voltage range is 18 to 30 V d.c. and the input current is 6 mA at 24 V d.c. Each input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The module cyclically performs self-diagnostics. Module diagnostics include:
- Process power supply supervision (results in a module warning, if detected).
- Event queue full.
- Time synchronization missing.
The input signals can be digitally filtered. The filter time can be set in the range 0 to 100 ms. This means that pulses shorter than the filter time are filtered out and pulses longer than specified filter time get through the filter.
General info
| Article number |
3BSE013210R1 |
| Type |
Digital Input |
| Signal specification |
24 V d.c. |
| Number of channels |
16 |
| Signal type |
Current sinking |
| HART |
No |
| SOE |
Yes |
| Redundancy |
No |
| High integrity |
No |
| Intrinsic safety |
No |
| Mechanics |
S800 |
Detailed data
| Input voltage range, "0" |
-30..+5 V |
| Input voltage range, "1" |
13..30 V |
| Input impedance |
3.2 kΩ |
| Isolation |
Groupwise isolated from ground |
| Filter times (digital, selectable) |
0...100 ms |
| Current limiting |
Sensor power can be current limited by the MTU |
| Maximum field cable length |
600 meters (656 yards) |
| Event recording accuracy |
-0.3 ms...+0.7 ms |
| Event recording resolution |
0.4 ms |
| Rated insulation voltage |
50 V |
| Dielectric test voltage |
500 V a.c. |
| Power dissipation |
Typ. 2.3 W |
| Current consumption +5 V Modulebus |
Typ. 100 mA, Max 120 mA |
| Current consumption +24 V Modulebus |
0 |
| Current consumption +24 V external |
0 |
Diagnostics
| Front LED’s |
F(ault), R(un), W(arning), Channel 1-16 ("0" or "1") |
| Supervision |
Process voltage, 1 per group ; Event queue full; Time synchronization missing |
| Status indication of supervision |
Module Error, Module Warning, Channel error |
Environment and certification
| CE mark |
Yes |
| Electrical safety |
EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 |
| Hazardous Location |
C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Marine certification |
ABS, BV, DNV, LR |
| Temperature, Operating |
0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C |
| Temperature, Storage |
-40 to +70 °C (-40 to +158 °F) |
| Pollution degree |
Degree 2, IEC 60664-1 |
| Corrosion protection |
ISA-S71.04: G3 |
| Relative humidity |
5 to 95 %, non-condensing |
| Max ambient temperature |
55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F) |
| Protection class |
IP20 according to IEC 60529 |
| Mechanical operating conditions |
IEC/EN 61131-2 |
| EMC |
EN 61000-6-4 and EN 61000-6-2 |
| Overvoltage categories |
IEC/EN 60664-1, EN 50178 |
| Equipment class |
Class I according to IEC 61140; (earth protected) |
| RoHS compliance |
DIRECTIVE/2011/65/EU (EN 50581:2012) |
| WEEE compliance |
DIRECTIVE/2012/19/EU |
Dimensions
| Width |
45 mm (1.77”) |
| Depth |
102 mm (4.01”), 111 mm (4.37”) including connector |
| Height |
119 mm (4.7”) |
| Weight |
0.22 kg (0.48 lbs.) |
Features and benefits
- 16 channels for 24 V d.c. inputs with current sinking
- 2 isolated groups of 8 channels with voltage supervision
- Input status indicators
- Sequence of event (SOE) functionality
- Shutter filter
