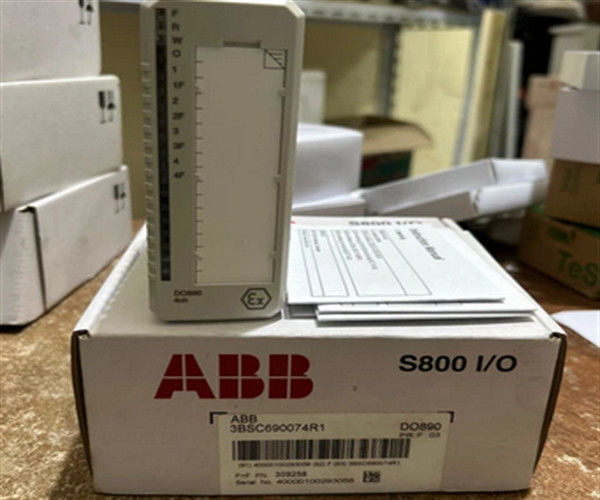

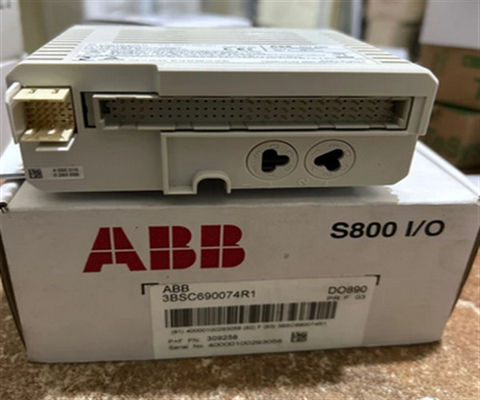

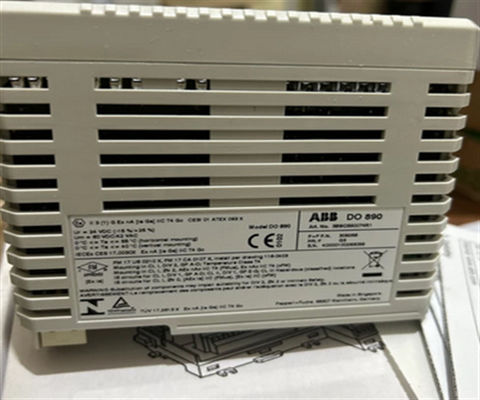

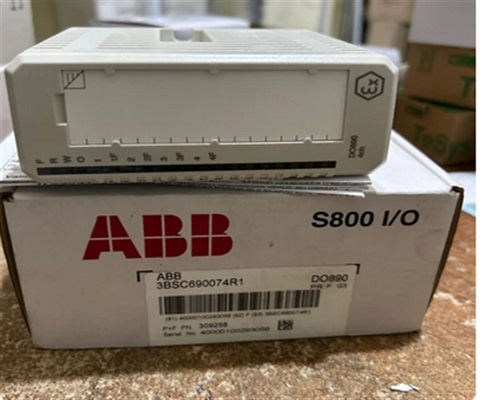

3BSC690074R1 ABB DO890 Digital Output 4x1 Ch With Intrinsic Safety Interface
Product details:
The module includes Intrinsic Safety protection components on each channel for connection to process equipment in hazardous areas without the need for additional external devices.
Each channel can drive a nominal current of 40 mA into a 300 ohm field load such as an Ex certified solenoid valve, alarm sounder unit or indicator lamp. Open and short circuit detection can be configured for each channel. All four channels are galvanic isolated between channels and from the ModuleBus and power supply. Power to the output stages is converted from the 24 V on the power supply connections.
TU890 and TU891 Compact MTU can be used with this module and it enables two wire connection to the process devices without additional terminals. TU890 for Ex applications and TU891 for non Ex applications.
General info
| Article number |
3BSC690074R1 |
| Type |
Digital Output |
| Signal specification |
11 V, 40 mA |
| Number of channels |
4 |
| Signal type |
Solenoid driver |
| HART |
No |
| SOE |
No |
| Redundancy |
No |
| High integrity |
No |
| Intrinsic safety |
Yes |
| Mechanics |
S800 |
Detailed data
| Isolation |
Individually isolated, channel-to-channel and to circuit common ground |
| Output load |
100 - 5000 Ω |
| Current limiting |
Short circuit proof current limited output |
| Rated insulation voltage |
50 V |
| Dielectric test voltage |
500 V a.c. |
| Power dissipation |
4.4 W |
| Current consumption +5 V Modulebus |
Typ. 80 mA, Max. <150 mA |
| Current consumption +24 V external |
Typ. 250 mA, Max. <360 mA |
Diagnostics
| Front LED’s |
F(ault), R(un), W(arning), O(SP), Channel 1-4 status |
| Supervision |
Internal process supply
Short circuit fault detection limit < 20 Ω
Open circuit fault detection limit > 100 kΩ
Fault sense current < 4 mA |
| Status indication of supervision |
256, 512, 1024 ms |
Environment and certification
| CE mark |
Yes |
| Electrical safety |
EN 61010-1, EN 61010-2-201 |
| Hazardous Location |
ATEX/IECEx Zone 2 with interface to Zone 0, cFMus C1, Div 2/Zone 2 with interface to C1, C2, C3 Div 1/Zone 0 |
| Marine certification |
ABS, BV, DNV, LR |
| Temperature, Operating |
0 to +55 °C (+32 to +131 °F) |
| Temperature, Storage |
-40 to +70 °C (-40 to +158 °F) |
| Pollution degree |
Degree 2, IEC 60664-1 |
| Corrosion protection |
ISA-S71.04: G3 |
| Relative humidity |
5 to 95 %, non-condensing |
| Max ambient temperature |
55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F) |
| Protection class |
IP20 according to IEC 60529 |
| Mechanical operating conditions |
IEC/EN 61131-2 |
| EMC |
EN 61000-6-4, EN 61000-6-2 |
| Overvoltage categories |
IEC/EN 60664-1, EN 50178 |
| Equipment class |
Class I according to IEC 61140; (earth protected) |
| RoHS compliance |
DIRECTIVE/2011/65/EN (EN 50581:2012) |
| WEEE compliance |
DIRECTIVE/2012/19/EU |
Compatibility
| Use with MTU |
TU890, TU891 |
| Keying code |
AB |
Dimensions
| Width |
45 mm (1.77”) |
| Depth |
102 mm (4.01”), 111 mm (4.37”) including connector |
| Height |
119 mm (4.7”) |
| Weight |
0.2 kg (0.44 lbs.) |
Features and benefits
- 4 channels for 11 V, 40 mA digital outputs.
- All channels fully isolated.
- Power to drive Ex certified solenoid valves and alarm sounders.
- Output and fault status indicators for each channel.
FAQ:
Q: What is the brand name of the product?
A: The brand name of the product is ABB.
Q: What is the model number of the product?
A: The model number of the product is DO890 3BSC690074R.
Q: Where is the product manufactured?
A: The product is manufactured in FI.
Q: What are the available payment terms?
A: The available payment terms are T/T, Western Union, and PAYONEER1.
Q: What is the delivery time for the product?
A: The delivery time for the product is 3-5 days.
