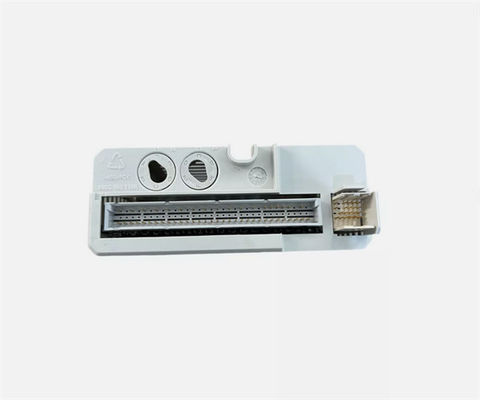

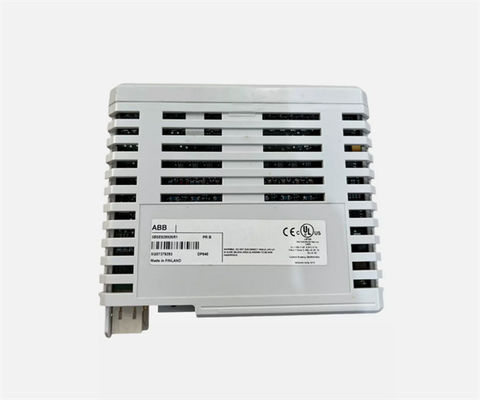

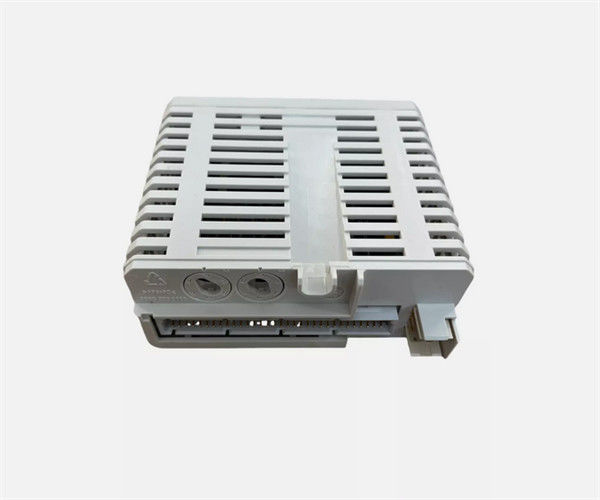

ABB 3BSE028926R1 Incremental Pulse Counter Module DP840
Product Details:
This document and parts thereof must not be reproduced or copied without written permission from ABB, and the contents thereof must not be imparted to a third party, nor used for any unauthorized purpose.
Trademarks ABB and Relion are registered trademarks of the ABB Group. All other brand or product names mentioned in this document may be trademarks or registered trademarks of their respective holders. Warranty Please inquire about the terms of warranty from your nearest ABB representative
The data, examples and diagrams in this manual are included solely for the concept or product description and are not to be deemed as a statement of guaranteed properties. All persons responsible for applying the equipment addressed in this manual must satisfy themselves that each intended application is suitable and acceptable, including that any applicable safety or other operational requirements are complied with. In particular, any risks in applications where a system failure and/or product failure would create a risk for harm to property or persons (including but not limited to personal injuries or death) shall be the sole responsibility of the person or entity applying the equipment, and those so responsible are hereby requested to ensure that all measures are taken to exclude or mitigate such risks
This product has been designed to be connected and communicate data and information via a network interface which should be connected to a secure network. It is the sole responsibility of the person or entity responsible for network administration to ensure a secure connection to the network and to take the necessary measures (such as, but not limited to, installation of firewalls, application of authentication measures, encryption of data, installation of anti virus programs, etc.) to protect the product and the network, its system and interface included, against any kind of security breaches, unauthorized access, interference, intrusion, leakage and/or theft of data or information. ABB is not liable for any such damages and/or losses.
Ordering
HS Code:
903084-- Oscilloscopes, spectrum analysers and other instruments and apparatus for measuring or checking electrical quantities, excluding meters of heading 90.28; instruments and apparatus for measuring or detecting alpha, beta, gamma, X-ray, cosmic or other ionising radiations.- Other instruments and apparatus :-- Other, with a recording device
Detailed data
| Isolation |
Groupwise isolated from ground |
| Error |
Max relative error (4): PRIT = 10 ms: 300 ppm PRIT = 20 ms: 150 ppm PRIT = 50 ms: 60 ppm PRIT = 100 ms: 30 ppm Max error in crystal oscillator: 120 ppm + 5 ppm/year Max absolute error = rel. error + oscillator error (PRIT = 10 ms, age < 16 year): 500 ppm (= 0.05%) |
| Current limiting |
Built in current limited sensor power |
| Maximum field cable length |
200 meters (218 yards) |
| Rated insulation voltage |
50 V |
| Dielectric test voltage |
500 V a.c. |
| Power dissipation |
4 W |
| Current consumption +5 V Modulebus |
115 mA |
| Current consumption +24 V external |
NAMUR = 56 + 0.5 x external load [mA] 12 V = 89 + 0.7 x external load [mA] 24 V = 97 + external load [mA] |
Diagnostics

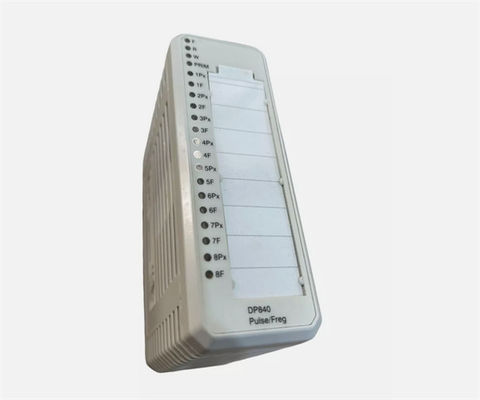

| Front LED’s |
F(ault), R(un), W(arning), P(rimary), Channel 1-8 P(ulse) and F(ault) |
| Supervision |
Process voltage
Loop supervision |
| Status indication of supervision |
Module Error, Module Warning, Channel error |
Environment and certification
| CE mark |
Yes |
| Electrical safety |
EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 |
| Hazardous Location |
C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Marine certification |
BV, DNV, LR |
| Temperature, Operating |
0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C |
| Temperature, Storage |
-40 to +70 °C (-40 to +158 °F) |
| Pollution degree |
Degree 2, IEC 60664-1 |
| Corrosion protection |
ISA-S71.04: G3 |
| Relative humidity |
5 to 95 %, non-condensing |
| Max ambient temperature |
55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F) |
| Protection class |
IP20 according to IEC 60529 |
| Mechanical operating conditions |
IEC/EN 61131-2 |
| EMC |
EN 61000-6-4 and EN 61000-6-2 |
| Overvoltage categories |
IEC/EN 60664-1, EN 50178 |
| Equipment class |
Class I according to IEC 61140; (earth protected) |
| RoHS compliance |
DIRECTIVE/2011/65/EU (EN 50581:2012) |
| WEEE compliance |
DIRECTIVE/2012/19/EU |
compatibility
| Use with MTU |
TU810, TU812, TU814, TU818, TU830, TU833, TU842, TU843, TU844, TU845, TU852, TU854 |
| Keying code |
CF |
Features and benefits
- 8 channels
- The modules can be used in both single and redundant applications
- Interface for NAMUR, 12 V and 24 V transducer signal levels
- Each channel can be configured for pulse count or frequency measurement
- The inputs can also be read as DI signals
- Pulse count by accumulation in a 16 bit counter
- Frequency (speed) measurement 0.5 Hz - 20 kHz
- Advanced on-board diagnostics
