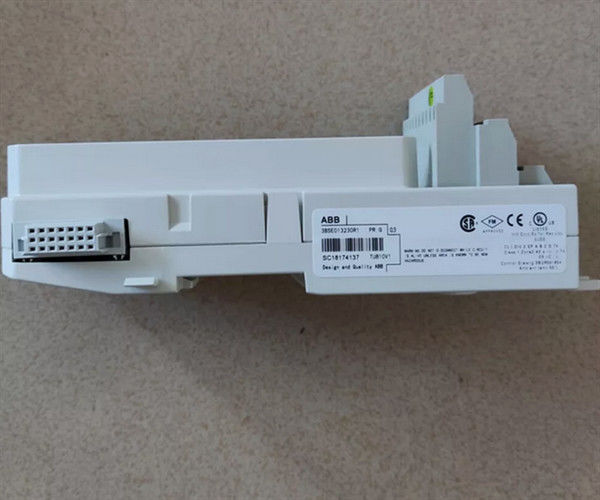

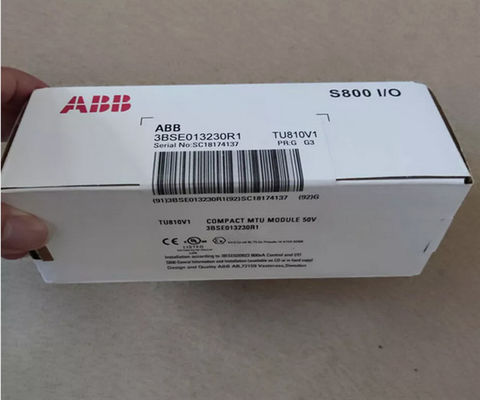

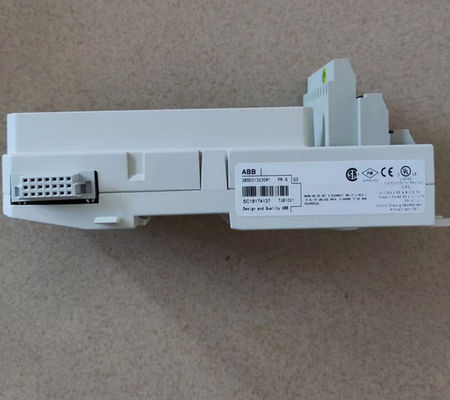

ABB 3BSE013230R1 Compact Termination Module MTU TU810V1
Description
The TU810/TU810V1 is a 16 channel 50 V compact module termination unit (MTU) for the S800 I/O. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus.
The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.

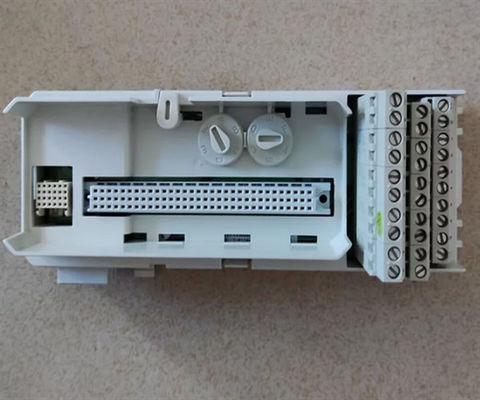

Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations.
General info
| Article number |
3BSE013230R1 |
| Type |
Compact |
| Connection |
Terminal block |
| Channels |
16 |
| Voltage |
50 V |
| Mounting |
Both directions |
| Mounting detail |
Horizontal 55 ºC (131 °F)
Vertical 40 ºC (104 °F) |
| Use with I/O |
AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO840, DO880, DP820, DP840 |
| Process connections |
2 x 2 Process power, 5 x 2 Process power (0 V) |
| Single/redundant I/O |
Single |
Detailed data
| Maximum current per I/O channel |
2A |
| Maximum current process connection |
5A |
| Acceptable wire sizes |
Solid: 0.2 - 4 mm² Stranded: 0.2 - 2.5 mm², 24 - 12 AWG |
| Dielectric test voltage |
500 V a.c. |
Environment and certification
| CE mark |
Yes |
| Electrical safety |
EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 |
| Hazardous Location |
C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Marine certification |
ABS, BV, DNV-GL, LR |
| Temperature, Operating |
0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C |
| Temperature, Storage |
-40 to + 70 °C (-40 to +158 °F) |
| Pollution degree |
Degree 2, IEC 60664-1 |
| Corrosion protection |
ISA-S71.04: G3 |
| Relative humidity |
5 to 95 %, non-condensing |
| Max ambient temperature |
55 °C (131 °F), for vertical mounting 40 °C (104 °F) |
| Protection class |
IP20 according to IEC 60529 |
| Mechanical operating conditions |
IEC/EN 61131-2 |
| EMC |
EN 61000-6-4, EN 61000-6-2 |
| Overvoltage categories |
IEC/EN 60664-1, EN 50178 |
| Equipment class |
Class I according to IEC 61140; (earth protected) |
| RoHS compliance |
EN 50581:2012 |
| WEEE compliance |
DIRECTIVE/2012/19/EU |
Dimensions
| Width |
64 mm (2.52 in.) including connector,
58.5 mm (2.3 in.) edge to edge installed |
| Depth |
64 mm (2.52 in.) including terminals |
| Height |
170 mm (6.7 in.) including latch |
| Weight |
0.17 kg (0.37 lbs) |
Features and benefits
- Compact installation of I/O modules using one-wire connections.
- Up to 16 channels of field signals and process power connections.
- Connections to ModuleBus and I/O modules.
- Mechanical keying prevents insertion of the wrong I/O module.
- Latching device to DIN rail for grounding.
- DIN rail mounting.
FAQ:
Q: What is the brand name of the product?
A: The brand name of the product is ABB.
Q: What is the model number of the product?
A: The model number of the product is TU810V1 3BSE013230R1.
Q: Where is the product manufactured?
A: The product is manufactured in FI.
Q: What are the available payment terms?
A: The available payment terms are T/T, Western Union, and PAYONEER.
Q: What is the delivery time for the product?
A: The delivery time for the product is 3-5 days.
