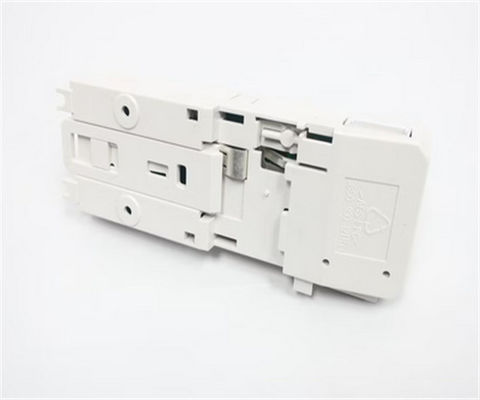

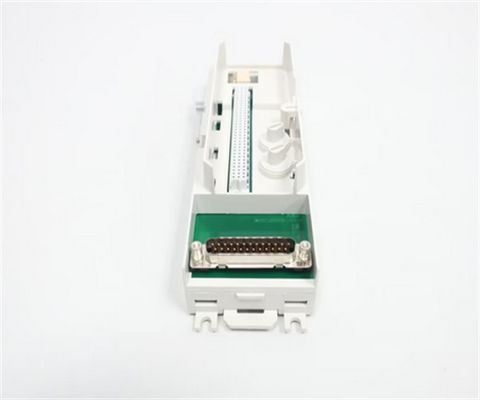

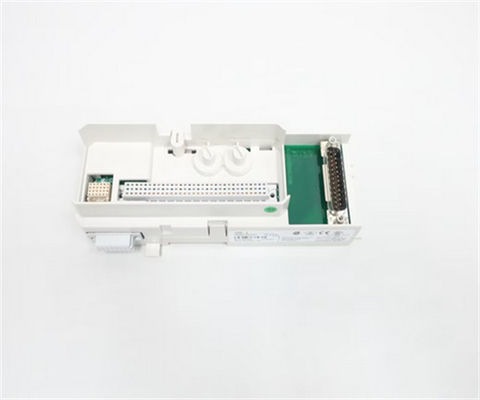

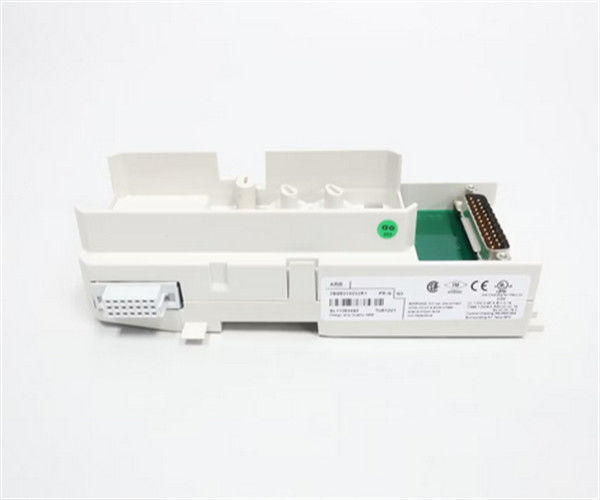

Abb 3bse013232r1 Tu812v1 S800 I/O Compact Module Termination Unit Plc And Dcs Parts And Accessory
Description
The TU812V1 is a 50 V compact module termination unit (MTU) for the S800 I/O system with 16 signal connections. The MTU is a passive unit used for connection of the field wiring. It also contains a part of the ModuleBus.
The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.
Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations.
| Manufacture |
ABB |
| Model |
TU812V1 |
| Ordering information |
3BSE013232R1 |
| Catalog |
800xA |
| Description |
ABB TU812V1 3BSE013232R1 MTU |
| Origin |
Germany (DE)
Spain (ES)
United States (US) |
| HS Code |
85389091 |
| Dimension |
16cm*16cm*12cm |
| Weight |
0.8kg |
General info
| Article number |
3BSE013232R1 |
| Type |
Compact |
| Connection |
25 pin D-sub |
| Channels |
16 |
| Voltage |
50 V |
| Mounting |
Both directions |
| Mounting detail |
Horizontal 55 ºC (131 °F)
Vertical 40 ºC (104 °F) |
| Use with I/O |
AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO840, DO880, DP820 and DP840 |
| Process connections |
25 pin (male) D-Sub connector
up to 16 I/O signals |
| Single/redundant I/O |
Single |
Detailed data
| Maximum current per I/O channel |
2 A |
| Maximum current process connection |
5 A |
| Dielectric test voltage |
500 V a.c. |
Environment and certification
| CE mark |
Yes |
| Electrical safety |
EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 |
| Hazardous Location |
C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Marine certification |
ABS, BV, DNV-GL, LR |
| Temperature, Operating |
0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C |
| Temperature, Storage |
-40 to + 70 °C (-40 to +158 °F) |
| Pollution degree |
Degree 2, IEC 60664-1 |
| Corrosion protection |
ISA-S71.04: G3 |
| Relative humidity |
5 to 95 %, non-condensing |
| Max ambient temperature |
55 °C (131 °F), for vertical mounting 40 °C (104 °F) |
| Protection class |
IP20 according to IEC 60529 |
| Mechanical operating conditions |
IEC/EN 61131-2 |
| EMC |
EN 61000-6-4, EN 61000-6-2 |
| Overvoltage categories |
IEC/EN 60664-1, EN 50178 |
| Equipment class |
Class I according to IEC 61140; (earth protected) |
| RoHS compliance |
EN 50581:2012 |
| WEEE compliance |
DIRECTIVE/2012/19/EU |
Dimensions
| Width |
64 mm (2.52 in.) including connector, 58.5 mm (2.3 in.) edge to edge installed |
| Depth |
64 mm (2.52 in.), including terminals |
| Height |
170 mm (6.7 in.), including latch |
| Weight |
0.17 kg (0.37 lbs) |
Features and benefits
- Compact installation of I/O modules using D-sub connector.
- Connections to ModuleBus and I/O modules.
- Mechanical keying prevents insertion of the wrong I/O module.
- Latching device to DIN rail for grounding.
- DIN rail mounting.
