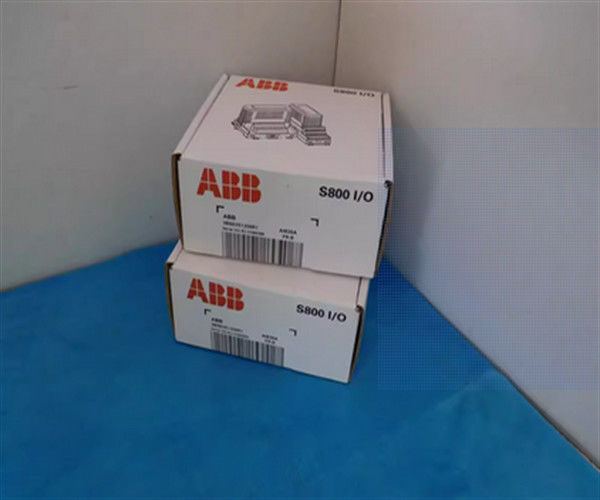

ABB 3BSE036714R1 TU8138 Channel 250 V Compact Module Termination Unit For S800 I/O
Description

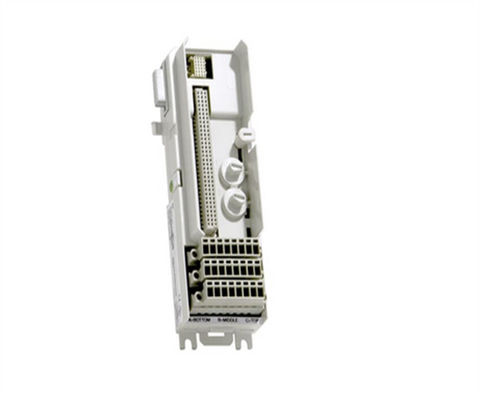

The TU813 is a 8 channel 250 V compact module termination unit (MTU) for the S800 I/O. The TU813 has three rows of crimp snap-in connectors for field signals and process power connections.
The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus.
The maximum rated voltage is 250 V and maximum rated current is 3 A per channel. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.
Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations.
General info
| Article number |
3BSE036714R1 |
| Type |
Compact |
| Connection |
Crimp Snap-in connector |
| Channels |
8 |
| Voltage |
250 V |
| Mounting |
Both directions |
| Mounting detail |
Horizontal 55 ºC (131 °F)
Vertical 40 ºC (104 °F) |
| Use with I/O |
DI820, DI821, DI825, DO820, DO821 and AI825 |
| Process connections |
16 |
| Single/redundant I/O |
Single |
Detailed data
| Maximum current per I/O channel |
3 A |
| Acceptable wire sizes |
Stranded: 0.2 - 0.5 mm², 24 - 20 AWG
0.5 - 1.0 mm², 20 - 18 AWG
1.5 - 2.5 mm², 16 - 14 AWG |
Environment and certification
| CE mark |
Yes |
| Electrical safety |
EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 |
| Hazardous Location |
ATEX Zone 2 |
| Marine certification |
- |
| Temperature, Operating |
0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C |
| Temperature, Storage |
-40 to + 70 °C (-40 to +158 °F) |
| Pollution degree |
Degree 2, IEC 60664-1 |
| Corrosion protection |
ISA-S71.04: G3 |
| Relative humidity |
5 to 95 %, non-condensing |
| Max ambient temperature |
55 °C (131 °F), for vertical mounting 40 °C (104 °F) |
| Protection class |
IP20 according to IEC 60529 |
| Mechanical operating conditions |
IEC/EN 61131-2 |
| EMC |
EN 61000-6-4, EN 61000-6-2 |
| Overvoltage categories |
IEC/EN 60664-1, EN 50178 |
| Equipment class |
Class I according to IEC 61140; (earth protected) |
| RoHS compliance |
EN 50581:2012 |
| WEEE compliance |
DIRECTIVE/2012/19/EU |
Dimensions
| Width |
64 mm (2.52 in.) including connector, 58.5 mm (2.3 in.) edge to edge installed |
| Depth |
64 mm (2.52 in.), including terminals |
| Height |
170 mm (6.7 in.) including latch |
| Weight |
0.17 kg (0.37 lbs) |
Features and benefits
- Compact installation of I/O modules.
- Up to 8 isolated channels of field signal connections with crimped snap-in connectors.
- Connections to ModuleBus and I/O modules.
- Mechanical keying prevents insertion of the wrong I/O module.
- Latching device to DIN rail for grounding.
- DIN rail mounting.
