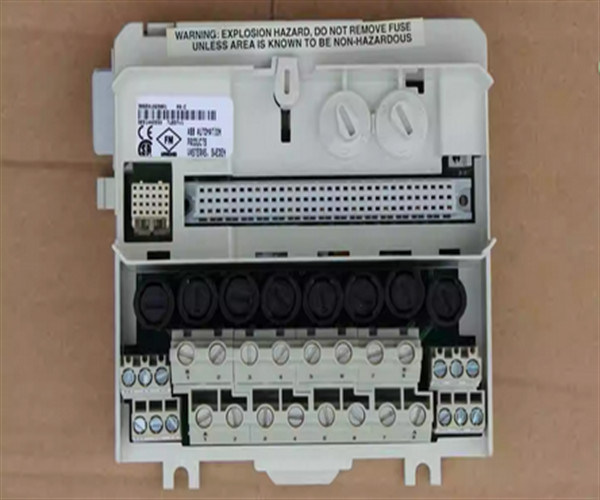

ABB TU837V1 Extended Module Termination Unit MTU 250 V, ABB 3BSE013238R1 Supply Module
Description
The TU837V1 MTU can have up to 8 I/O channels. The maximum rated voltage is 250 V and maximum rated current is 3 A per channel. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.
The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. The latch can be released with a screwdriver. Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations.
Additional Information
Medium Description: Extended Module Termination Unit 8x1 fused isol. signals, 8x1 L terminals, 2x6 N terminals.
Product Type: Module_Termination_Unit
Ordering
853690-- Electrical apparatus for switching or protecting electrical circuits, or for making connections to or in electrical circuits (for example, switches, relays, fuses, surge suppressors, plugs, sockets, lamp-holders and other connectors, junction boxes), for a voltage not exceeding 1,000 volts; connectors for optical fibres, optical fibre bundles or cables.- Other apparatus
Customs Tariff Number: 85369095
Dimensions
Product Net Depth / Length: 64 mm
Product Net Height: 120.5 mm
Product Net Width: 110 mm
Product Net Weight: 0.37 kg
Environmental
RoHS Status: Following EU Directive 2011/65/EU
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
SCIP: No SVHC present Bulgaria (BG)
Features and benefits
Up to 8 individually isolated channels of field signals and process power connections.
Each channel has two terminals and one is fused.
Allows a mix of isolated and grouped channels.
Process voltage return can be connected to two individually isolated groups.
Connections to ModuleBus and I/O modules.
Mechanical keying prevents insertion of the wrong I/O module.
Latching device to DIN rail for grounding.
DIN rail mounting.
General info
Article number 3BSE013238R1
Type Extended
Connection Terminal block
Channels 8
Voltage 250 V
Mounting Both directions
Mounting detail 55 ºC (131 °F)
Use with I/O DO820, and DO821
Process connections 28
up to 8 I/O channels
(2 terminals per channel)
2 x 6 power common terminals
Single/redundant I/O Single
