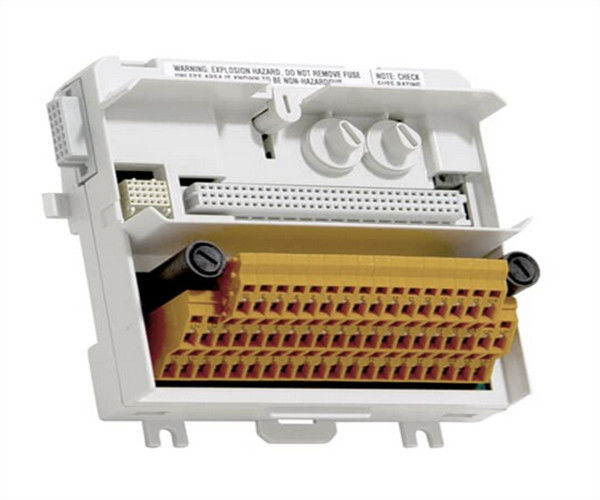

ABB TU833 3BSE038726R1 Extended MTU Redundant Power Supply Module
Description
The TU833 MTU can have up to 16 I/O channels and two process voltage connections. Each channel has two I/O connections and one ZP connection. The process voltage can be connected to two individually isolated groups. Each group has a 6.3 A fuse. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel. It is recommended that the fuse rating be chosen to meet the applications needs, see S800 I/O Getting Started chapter Power and Cooling.
The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.
The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail.
General Information
- Product ID: 3BSE038726R1
- ABB Type Designation: TU833
- Catalog Description: TU833 Extended MTU, 50V
- Long Description: 2x16 signal terminals, Spring-cage terminals.
Additional Information
- Medium Description: 2x16 signal terminals, Spring-cage terminals.
- Product Type: Module_Termination_Unit
Dimensions
- Product Net Depth / Length: 64 mm
- Product Net Height: 120.5 mm
- Product Net Width: 110 mm
- Product Net Weight: 0.34 kg
Environmental Information
- RoHS Status: Following EU Directive 2011/65/EU
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
- Number of Batteries: 0
- SCIP: No SVHC present Bulgaria (BG)
Features and benefits
- Complete installation of I/O modules using 3-wire connections, fuses and field power distribution.
- Up to 16 channels of field signals and process power connections.
- Connections to ModuleBus and I/O modules.
- Mechanical keying prevents insertion of the wrong I/O module.
- Latching device to DIN rail for grounding.
- DIN rail mounting.
- Spring-case terminal.
FAQ:
Q: What is the brand name of the product?
A: The brand name of the product is ABB.
Q: What is the model number of the product?
A: The model number of the product is TU833 3BSE038726R1.
Q: Where is the product manufactured?
A: The product is manufactured in FI.
Q: What are the available payment terms?
A: The available payment terms are T/T, Western Union, and PAYONEER.
Q: What is the delivery time for the product?
A: The delivery time for the product is 3-5 days.
