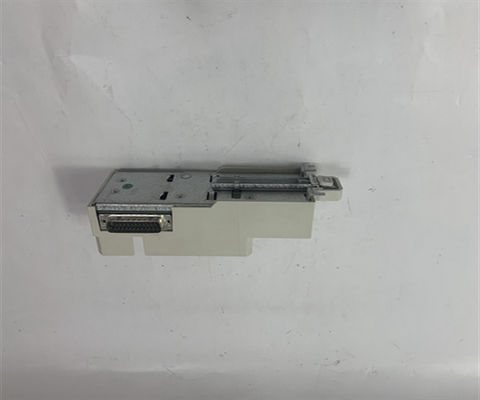

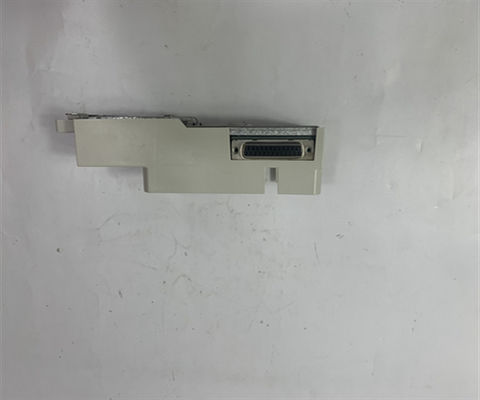

TY804K01 3BSE033670R1 ABB Controller Module 1000 Ohms Shunt
Product details:
This standard is subject to revision as new materials and methods of construction are developed.
The latest revision of this standard shall be applicable. Revised sheets shall be
issued from time to time and should be inserted as soon as these are received.
Superseded or obsolete sheets shall be removed immediately upon receipt of revised sheets.
The date of the latest issue of each sheet is printed at the top corner under the standard number.
The grounding rod shall be made of solid steel core bonded uniformly with copper through an electrolytic process.
The copper shall be deposited over a layer of nickel to ensure adherence between the copper layer and the steel core.
The steel core shall not be less than 98% iron and when tested in accordance with ASTM A370 shall have mechanical tensile strength of not less than 650 N/mm².
The copper coating shall be 99.5% pure copper with minimum coating thickness of 0.25 mm per ASTM E376.
The inter-layer of nickel is 99.5% nickel and a minimum thickness of 3.0μm.
General info
| Article number |
3BSE033670R1 |
| Mechanics |
S800 |
Environment and certification
| CE mark |
Yes |
| Electrical safety |
IEC 61131-2, UL 61010-1, UL 61010-2-201 |
| Hazardous Location |
C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Temperature, Operating |
0 to +55 °C (Storage -25 to +70 °C), RH=5 to 95 % no condensation, IEC/EN 61131-2 |
| Pollution degree |
Degree 2, IEC 60664-1 |
| Corrosion protection |
ISA-S71.04: G3 |
| Protection class |
IP20 according to IEC 60529 |
| Mechanical operating conditions |
IEC 61131-2 |
| EMC |
EN 61000-6-4 and EN 61000-6-2 |
| Overvoltage categories |
IEC/EN 60664-1 |
| Equipment class |
Class I according to IEC 61140; (earth protected) |
| RoHS compliance |
DIRECTIVE/2011/65/EU (EN 50581:2012) |
| WEEE compliance |
DIRECTIVE/2012/19/EU |
Dimensions
| Width |
15.5 mm |
| Depth |
62 mm |
| Height |
11 mm |
| Weight |
0.06 kg |
FAQ:
Q: What is the brand name of the product?
A: The brand name of the product is ABB.
Q: What is the model number of the product?
A: The model number of the product is TY804K01 3BSE033670R1.
Q: Where is the product manufactured?
A: The product is manufactured in FI.
Q: What are the available payment terms?
A: The available payment terms are T/T, Western Union, and PAYONEER.
Q: What is the delivery time for the product?
A: The delivery time for the product is 3-5 days.
