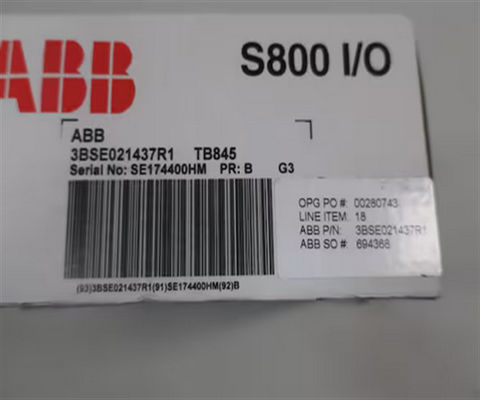

Name: Abb 3BSE021437R1 TB845 S800 Dual Modulebus Outlet Module
Brand: Wisdomlong Technology CO.，LTD
SKU: TB845 3BSE021437R1
Price: 1.00 USD
Availability: InStock

Home Products Redundant Power Supply Module

Abb 3BSE021437R1 TB845 S800 Dual Modulebus Outlet Module

Product Details:

Place of Origin:	FI
Brand Name:	ABB
Certification:	Does not supply
Model Number:	TB845 3BSE021437R1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	in box
Delivery Time:	3-5days
Payment Terms:	T/T, Western Union, PAYONEER
Supply Ability:	10

Contact Now

Detailed Product Description

Brand:	ABB	Channel Type:	DI
Weight:	0.3kg	Isolation:	Individually Galvanic Isolated Channels
Product Type:	I-O_Module	Product ID:	TB845 3BSE021437R1
RoHS Status:	Following EU Directive 2011/65/EU	Part Number:	TB845 3BSE021437R1
Highlight:	3BSE021437R1 Dual Modulebus Outlet Module , TB845 S800 Dual Modulebus Outlet Module , Dual Modulebus Outlet Module

Abb 3BSE021437R1 TB845 S800 Dual Modulebus Outlet Module

Product details:
The TB845 redundant ModuleBus Cable Adaptor is used together with TB846 and two TK801V0xx to extend the ModuleBus. Using this extension I/O modules on the same electrical ModuleBus can be mounted on different DIN rails.

Additional Information

Medium Description: Modulebus extension cable adaptor two D-sub, female. Two TK801 cables for redundancy

Product Type: Module_Termination_Unit

Ordering

HS Code:

853690-- Electrical apparatus for switching or protecting electrical circuits, or for making connections to or in electrical circuits (for example, switches, relays, fuses, surge suppressors, plugs, sockets, lamp-holders and other connectors, junction boxes), for a voltage not exceeding 1,000 volts; connectors for optical fibres, optical fibre bundles or cables.- Other apparatus

Customs Tariff Number: 85369095

General info

Article number	3BSE021437R1
Mechanics	S800

Environment and certification

CE mark	Yes
Electrical safety	IEC 61131-2, UL 61010-1, UL 61010-2-201
Hazardous Location	C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
Marine certification	ABS, BV, DNV, LR
Temperature, Operating	0 to +55 °C (Storage -25 to +70 °C), RH=5 to 95 % no condensation, IEC/EN 61131-2
Pollution degree	Degree 2, IEC 60664-1
Corrosion protection	ISA-S71.04: G3
Protection class	IP20 according to IEC 60529
Mechanical operating conditions	IEC 61131-2
EMC	EN 61000-6-4 and EN 61000-6-2
Overvoltage categories	IEC/EN 60664-1
Equipment class	Class I according to IEC 61140; (earth protected)
RoHS compliance	Directive 2011/65/EU (EN 50581:2012)
WEEE compliance	DIRECTIVE/2012/19/EU

Dimensions

Width	43 mm
Depth	31.5 mm
Height	186 mm
Weight	180 g

FAQ:

Q: What is the brand name of the product?
A: The brand name of the product is ABB.
Q: What is the model number of the product?
A: The model number of the product is TB845 3BSE021437R1.
Q: Where is the product manufactured?
A: The product is manufactured in FI.
Q: What are the available payment terms?
A: The available payment terms are T/T, Western Union, and PAYONEER.
Q: What is the delivery time for the product?
A: The delivery time for the product is 3-5 days.
