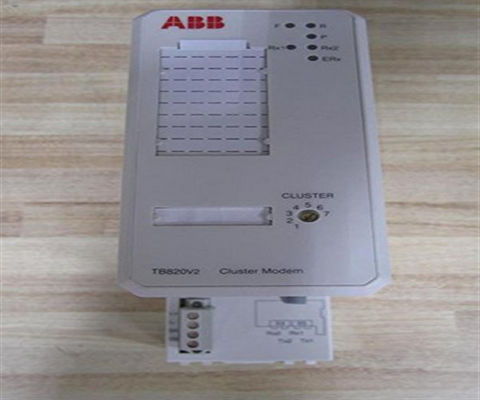

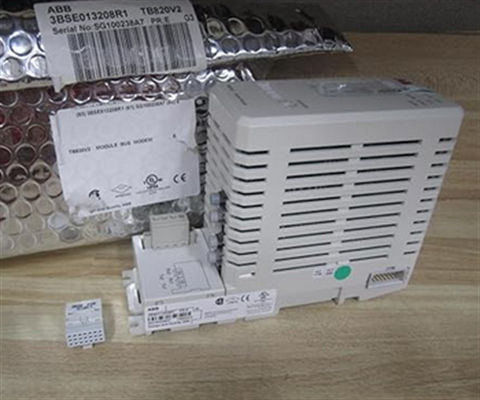

ABB 3BSE013208R1 Module Bus Cluster Modem Type TB820V2

Product Details:

Place of Origin:	FI
Brand Name:	ABB
Certification:	Does not supply
Model Number:	TB820V2 3BSE013208R1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	in box
Delivery Time:	3-5days
Payment Terms:	T/T, Western Union, PAYONEER
Supply Ability:	10

Contact Now

Detailed Product Description

Brand:	ABB	Channel Type:	DI
Weight:	0.3kg	Isolation:	Individually Galvanic Isolated Channels
Product Type:	I-O_Module	Product ID:	TB820V2 3BSE013208R1
RoHS Status:	Following EU Directive 2011/65/EU	Part Number:	TB820V2 3BSE013208R1

ABB 3BSE013208R1 Module Bus Cluster Modem Type TB820V2

Description

S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers and PLCs over industry-standard field buses. The TB820V2 ModuleBus Modem is a fiber optic interface to the ModuleBus. The ModuleBus Modem has an electric and an optical interface which are logically the same bus. A maximum of 12 I/O modules can be connected to the electrical ModuleBus and up to seven clusters can be connected to the fiber optic ModuleBus. The fiber optic interface is intended for local distribution of I/O clusters and where more than 12I/O modules are required in an I/O station.

General info

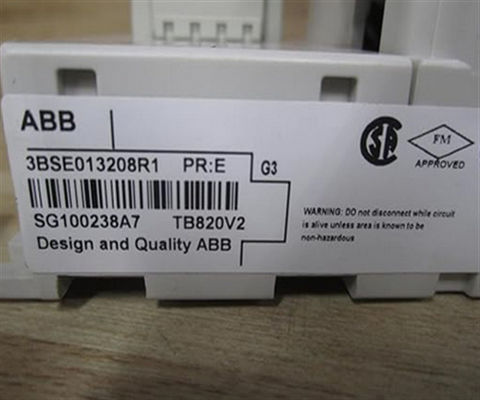

Article number	3BSE013208R1
Communication protocol	Modulebus
Master or slave	Slave
Line redundancy	No
Module redundancy	No
Hot Swap	No
Used together with HI Controller	No

Detailed data

24 V consumption typ.

100 mA

Environment and certification

CE- marking	Yes
Electrical Safety	EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201
Hazardous location	C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
Marine certificates	ABS, BV, DNV-GL, LR
Temperature, Operating	0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C
Temperature, Storage	-40 to +70 °C (-40 to +158 °F)
Pollution degree	Degree 2, IEC 60664-1
Corrosion protection	ISA-S71.04: G3
Relative humidity	5 to 95 %, non-condensing
Max ambient temperature	55 °C (131 °F), for vertical mounting 40 °C (104 °F)
Protection class	IP20 according to EN60529, IEC 529
RoHS compliance	DIRECTIVE/2011/65/EU (EN 50581:2012)
WEEE compliance	DIRECTIVE/2012/19/EU

Dimensions

Width	58 mm (2.39 in.)
Height	170 mm (6.7 in.) including latch
Depth	122 mm (4.8 in.)
Weight	0.3 kg (0.66 lbs)

Features and benefits

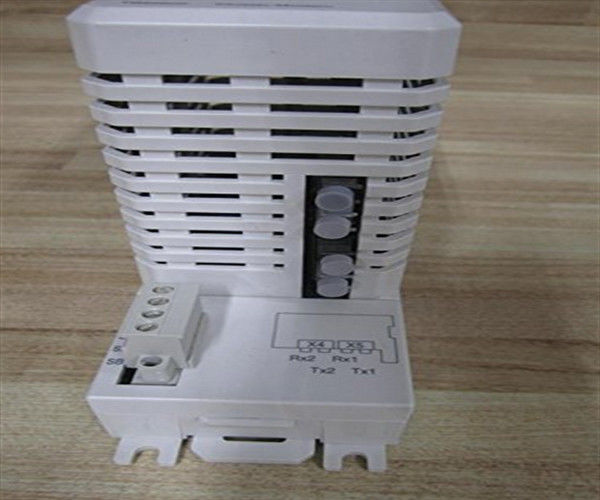

2 fiber optic ports to optical ModuleBus
ModuleBus (electrical) to the I/O Modules
Supervisory functions of I/O ModuleBus and power supply
Isolated power supply to I/O modules
TB820/TB820V2 has a rotary switch that selects its cluster number, 1 to 7, on the optical ModuleBus
