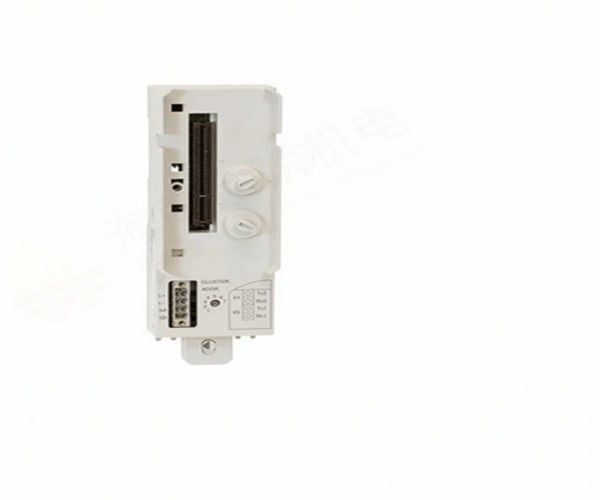

TU807-3BSE039025R1 Module Termination Unit Ensure Stable Signal Transmission
Description
The TU807 is a module termination unit (MTU) for single configuration of Optical ModuleBus Modem TB840/TB840A. The MTU is a passive unit having connections for power supply, a single electrical ModuleBus, one TB840/TB840A and a rotary switch for cluster address (1 to 7) setting.
General info
| Article number |
3BSE039025R1 |
| Communication protocol |
Modulebus |
| Master or slave |
N/A |
| Hot Swap |
No |
| Used together with HI Controller |
Yes |
| Power input |
24 V d.c. (19.2 - 30 V) |
| Mounting |
Vertical or Horizontal |
Detailed data
| Connector |
Terminal Block |
| 24 V consumption typ. |
N/A |
| ModuleBus current distribution |
Maximum 5V 1.5 A
24V 1.5 A |
| Mechanical Keys |
36 different combinations |
| Acceptable wire sizes |
Solid: 0.2 - 2.5 mm²
Stranded: 0.2 - 2.5 mm², 24 - 12 AWG
Recommended torque: 0.5 Nm |
| Rated insulation voltage |
50 V |
| Dialectic test voltage |
500 V a.c. |
Environment and certification
| CE- marking |
Yes |
| Electrical Safety |
EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 |
| Hazardous location |
cULus Hazardous Location Class 1 Zone 2, ATEX Zone 2 |
| Temperature, Operating |
0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C |
| Temperature, Storage |
-40 to +70 °C (-40 to +158° F) |
| Relative humidity |
5 to 95 %, non-condensing |
| Max ambient temperature |
55 °C (131 °F), for vertical mounting 40 °C (104 °F) |
| Equipment class |
Class I according to IEC 60536; (earth protected) |
| Ingress protection |
IP20 according to IEC 60529 |
| RoHS compliance |
DIRECTIVE/2011/65/EU (EN 50581:2012) |
| WEEE compliance |
DIRECTIVE/2012/19/EU |
Dimensions
| Width |
59 mm (1.57”) |
| Height |
186.5 mm (7.34”) including latch |
| Depth |
47 mm (1.85”) |
| Weight |
0.45 kg (0.99 lbs.) |
Features and benefits
- Support for single modulebus I/O Including 1 pcs of TB807
- A rotary switch for cluster address setting
- Mechanical keying prevents insertion of wrong module type
- Single ModuleBus connection
- Latching device to DIN rail for locking and grounding
- DIN rail mounted
FAQ:
Q: What is the brand name of the product?
A: The brand name of the product is ABB.
Q: What is the model number of the product?
A: The model number of the product is TU807 3BSE039025R1.
Q: Where is the product manufactured?
A: The product is manufactured in FI.
Q: What are the available payment terms?
A: The available payment terms are T/T, Western Union, and PAYONEER.
Q: What is the delivery time for the product?
A: The delivery time for the product is 3-5 days.
