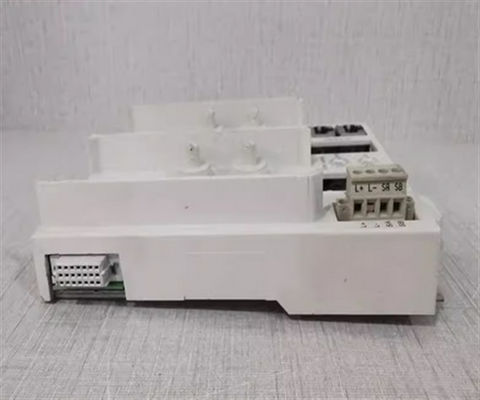

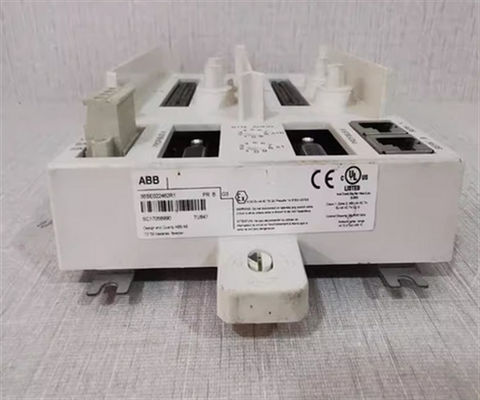

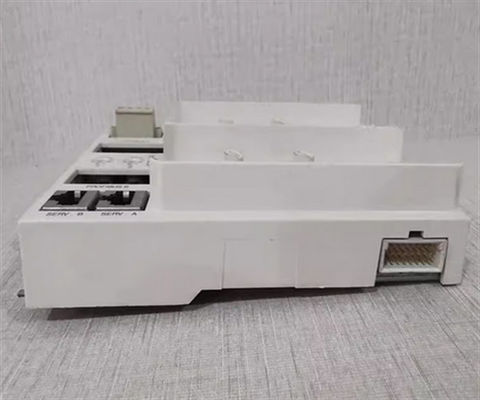

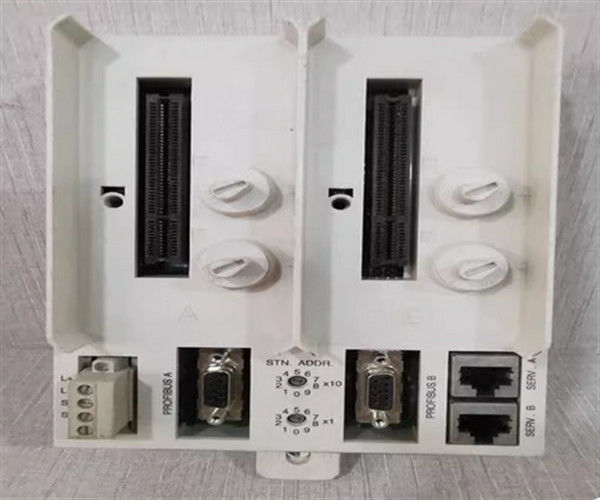

ABB TU849 MTU With Individual Power Supply Termination Unit ABB S800 I/O
Description
The TU849 is a module termination unit (MTU) for redundant configuration of Optical ModuleBus Modem TB840/TB840A.
The MTU is a passive unit having connections for double power supply, one for each modem, a single electrical ModuleBus, two TB840/TB840A and a rotary switch for cluster address (1 to 7) setting.
Four mechanical keys, two for each position, are used to configured the MTU for the right types of modules. Each key has six positions, which gives a total number of 36 different configurations. The configurations can be changed with a screwdriver.
The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. The latch can be locked/unlocked with a screwdriver.
Termination unit TU848 has individual power supply connections and connects TB840/TB840A to redundant I/O. Termination unit TU849 has individual power supply connections and connects TB840/TB840A to non-redundant I/O.
General info
| Article number |
3BSE042560R1 |
| Communication protocol |
Modulebus |
| Master or slave |
N/A |
| Line redundancy |
Yes |
| Hot Swap |
No |
| Type |
Redundant TB840/TB840A, Single I/O, Dual Power |
| Power input |
24 V d.c (19.2 -30 V) |
| Mounting |
Vertical or Horizontal |
Detailed data
| Connector |
N/A |
| 24 V consumption typ. |
N/A |
| ModuleBus current distribution |
Maximum 5 V 1.5 A
24 V 1.5 A |
| Mechanical Keys |
36 differrent combinations |
| Acceptable wire sizes |
Solid: 0.2 - 2.5 mm²
Stranded: 0.2 -2.5 mm², 24 -12 AWG
Recomended torque: 0.5 Nm |
| Rated insulation voltage |
50 V |
| Dialectic test voltage |
500 V a.c |
| Power dissipation |
2.5 W |
Environment and certification
| CE- marking |
Yes |
| Electrical Safety |
EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 |
| Hazardous location |
cULus Hazardous Location class 1 Zone 2, ATEX Zone 2 |
| Marine certificates |
ABS, BV, DNV-GL, LR |
| Temperature, Operating |
0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C |
| Temperature, Storage |
-40 to +70 °C (-40 to +158° F) |
| Relative humidity |
5 to 95 %, non-condensing |
| Max ambient temperature |
55 °C (131 °F), for vertical mounting 40 °C (104 °F) |
| Equipment class |
Class l according to IEC 60536; (earth protected) |
| Ingress protection |
IP20 according to IEC 60529 |
| RoHS compliance |
DIRECTIVE/2011/65/EU (EN 50581:2012) |
| WEEE compliance |
DIRECTIVE/2012/19/EU |
Dimensions
| Width |
124 mm (4.88 in.) |
| Height |
186.5 mm (7.34 in.) including latch |
| Depth |
47 mm (1.85 in.) |
| Weight |
0.45 kg (0.99 lbs.) |
Features and benefits
• Dual power supply connection
• A rotary switch for cluster address setting
• Mechanical keying prevents insertion of wrong module type
• Single ModuleBus connection
• Latching device to DIN rail for locking and grounding
• DIN rail mounted
