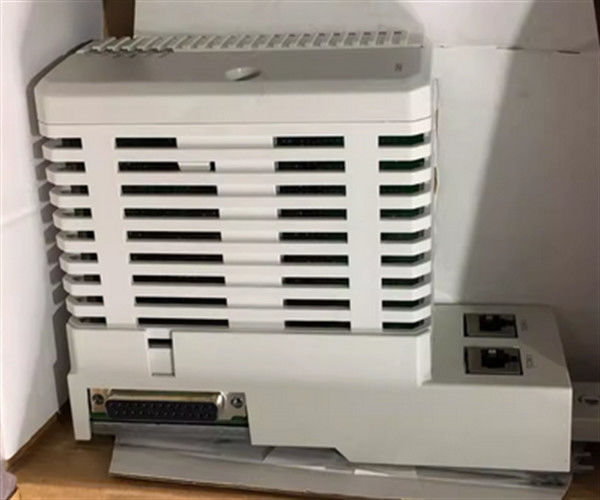

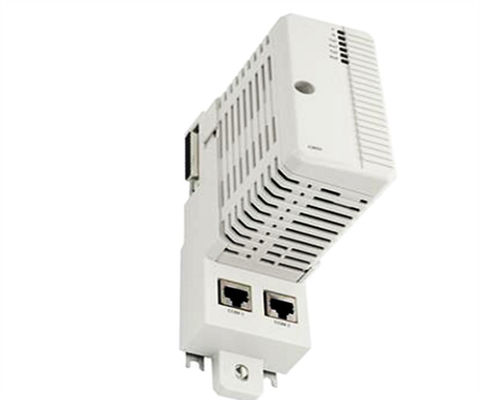

Name: 3BSE018103R1 ABB CI853K01 Dual RS232-C interface Redundant Power Supply Unit
Brand: Wisdomlong Technology CO.，LTD
SKU: CI853K01 3BSE018103R1
Price: 1.00 USD
Availability: InStock

Home Products Redundant Power Supply Module

3BSE018103R1 ABB CI853K01 Dual RS232-C interface Redundant Power Supply Unit

Product Details:

Place of Origin:	FI
Brand Name:	ABB
Certification:	Does not supply
Model Number:	CI853K01 3BSE018103R1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	in box
Delivery Time:	3-5days
Payment Terms:	T/T, Western Union, PAYONEER
Supply Ability:	10

Contact Now

Detailed Product Description

Brand:	ABB	Channel Type:	DI
Weight:	0.3kg	Isolation:	Individually Galvanic Isolated Channels
Product Type:	I-O_Module	Product ID:	CI853K01 3BSE018103R1
RoHS Status:	Following EU Directive 2011/65/EU	Part Number:	CI853K01 3BSE018103R1

3BSE018103R1 ABB CI853K01 Dual RS232-C interface Redundant Power Supply Unit

Description

CI853 RS-232 module protocols:

COMLI can be used on the build in COM3 port and optionally on the CI853 ports. The cable length can be extended considerably (to several km) using a fiber optic converter. RS-232C is the standard communication interface used for serial communication with COMLI. The CI853 supports Hot Swap. COMLI is an ABB protocol for data transmission between controllers. It is designed for asynchronous master/slave communication in half-duplex. COMLI protocol supports dial-up modem controlled from the application. CI853 supports both Master/Slave mode in COMLI.

MODBUS RTU is a standard protocol widely spread because of its ease of use and reliability. Modbus RTU is an open, serial (RS-232 or RS-485) protocol derived from the Master/Slave architecture exchanging information in half duplex mode. The Modbus functionality can be configured both on the COM ports of AC 800M and CI853. Module Redundancy is not available in MODBUS RTU. CI853 supports only Master mode in MODBUS RTU.

General info

Article number	3BSE018103R1 (CI853K01)
Communication protocol	COMLI and MODBUS RTU
Master or slave	Master/Slave
Number of channels	2
Transmission speed	75 - 19 200 b/s
Line redundancy	No
Module redundancy	No
Hot Swap	Yes
Used together with HI Controller	Yes

Detailed data

Max units on CEX bus	12
Connector	RJ-45 female (8-pin)
24 V consumption typ.	100 mA

Environment and certification

Temperature, Operating	+5 to +55 °C (+41 to +131 °F)
Temperature, Storage	-40 to +70 °C (-40 to +158 °F)
Corrosion protection	G3 compliant to ISA 71.04
Protection class	IP20 according to EN60529, IEC 529
CE- marking	Yes
Marine certificates	ABS, BV, DNV-GL, LR
RoHS compliance	DIRECTIVE/2011/65/EU (EN 50581:2012)
WEEE compliance	DIRECTIVE/2012/19/EU

Dimensions

Width	59 mm (2.3 in.)
Height	185 mm (7.3 in.)
Depth	127.5 mm (5.0 in.)
Weight (including base)	700 g (1.5 lbs)

Features and benefits

COMLI can be used on the build in COM3 port and optionally on the CI853 ports. RS-232C is the standard communication interface used for serial communication with COMLI. The CI853 supports Hot Swap. COMLI is an ABB protocol for data transmission between controllers.
MODBUS RTU is an open, serial (RS-232 or RS-485) protocol derived from the Master/Slave architecture exchanging information in half duplex mode. The Modbus functionality can be configured both on the COM ports of AC 800M and CI853.
Siemens 3964R can be used on the build in COM3 port and optionally on the CI853 ports. A standard RS-232C/485 communication channel is required.
Self-defined Serial Communication can be used on the built in COM3 port (on an AC 800M Controller) and optionally on the CI853 ports.
The CI853 module also supports Hot Swap.

FAQ:

Q: What is the brand name of the product?
A: The brand name of the product is ABB.
Q: What is the model number of the product?
A: The model number of the product is CI853K01 3BSE018103R1.
Q: Where is the product manufactured?
A: The product is manufactured in FI.
Q: What are the available payment terms?
A: The available payment terms are T/T, Western Union, and PAYONEER.
Q: What is the delivery time for the product?
A: The delivery time for the product is 3-5 days.
