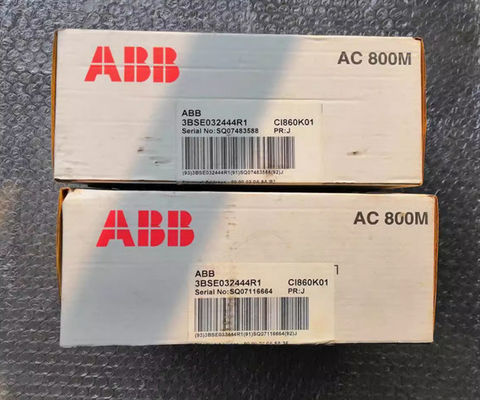

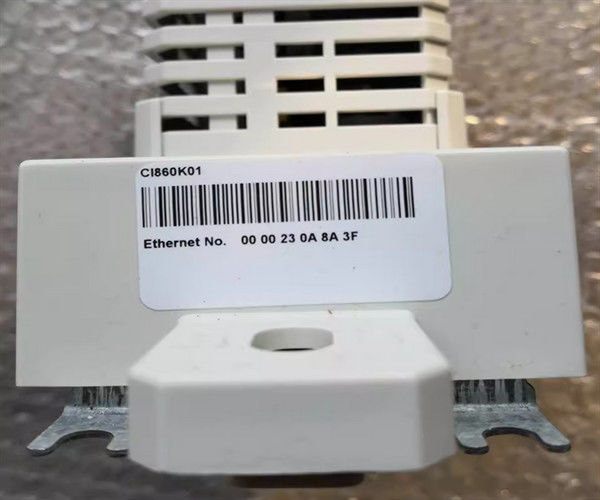

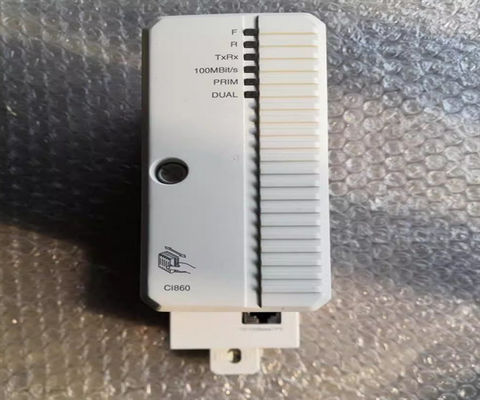

ABB 3BSE032444R1 CI860K01 Foundation Fieldbus HSE Interface

Product Details:

Place of Origin:	FI
Brand Name:	ABB
Certification:	Does not supply
Model Number:	CI860K01 3BSE032444R1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	in box
Delivery Time:	3-5days
Payment Terms:	T/T, Western Union, PAYONEER
Supply Ability:	10

Contact Now

Detailed Product Description

Brand:	ABB	Channel Type:	DI
Weight:	0.3kg	Isolation:	Individually Galvanic Isolated Channels
Product Type:	I-O_Module	Product ID:	CI860K01 3BSE032444R1
RoHS Status:	Following EU Directive 2011/65/EU	Part Number:	CI860K01 3BSE032444R1

ABB 3BSE032444R1 CI860K01 Foundation Fieldbus HSE Interface

Description

The CI860K01 Foundation Fieldbus HSE interface is a product produced by ABB for redundancy mode. In redundant mode, up to 12 CI860 modules can be placed on an AC800M, each of which can be connected to the same or separate FOUNDATION Fieldbus HSE subnet.
In addition, the CI860K01 has high-speed communication capabilities, and its communication speed can reach 100,000/1 000,000 kbit/second. The interface operates in a temperature range of -10 to 50.C and a humidity range of 20 to 95%. At the same time, it has a typical power consumption of 24V and a typical value of 100 MA.
In addition, the dimensions of the interface (H x W x D) are approximately 18.5 cm X 5.9 cmx 12.75 cm, the weight is 0 55 kg, and the shipping weightis 2 kg.
In practice, the C1860K01 establishes a connection between the HSE subnet and the AC 800M controller, allowing users to access FOUNDATION Fieldbus process data on HSE from the IEC 61131 application in the AC 800M controller.

Additional Information

Medium Description:

FOUNDATION Fieldbus HSE Interface. Package including: - CI860, Communication Interface - TP860, Baseplate

Product Type: Communication_Module

Ordering

HS Code:

851762-- Telephone sets, including telephones for cellular networks or for other wireless networks; other apparatus for the transmission or reception of voice, images or other data, including apparatus for communication in a wired or wireless network (such as a local or wide area network), other than transmission or reception apparatus of heading 84.43, 85.25, 85.27 or 85.28.- Other apparatus for transmission or reception of voice, images or other data, including apparatus for communication in a wired or wireless network (such as a local or wide area network) :-- Machines for the reception, conversion and transmission or regeneration of voice, images or other data, including switching and routing apparatus

Customs Tariff Number: 85176200

Dimensions

Product Net Depth / Length: 1275 mm

Product Net Height: 185 mm

Product Net Width: 59 mm

Product Net Weight: 0.55 kg

Environmental

RoHS Status: Following EU Directive 2011/65/EU

WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)

Number of Batteries: 0

SCIP: 4cb0b958-71d8-46e7-bed2-9518416c9b60 Sweden (SE)
