Name: ABB CI865K01 3BSE040795R1 AC 800 Module External Desktop Power Supply
Brand: Wisdomlong Technology CO.，LTD
SKU: CI865K01 3BSE040795R1
Price: 1.00 USD
Availability: InStock

Home Products Redundant Power Supply Module

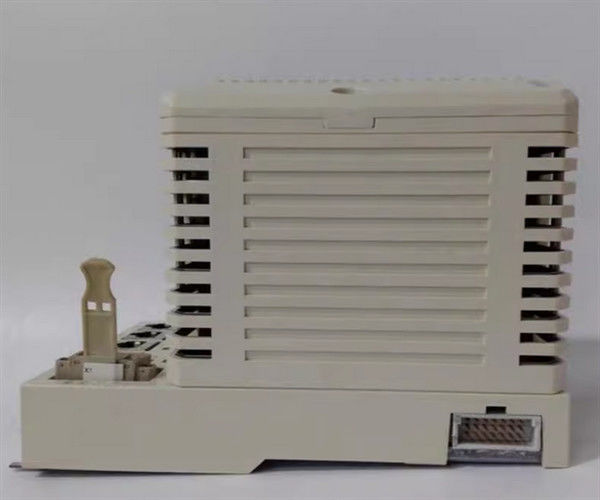

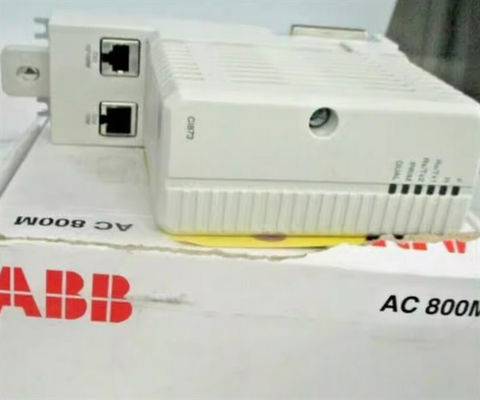

ABB CI865K01 3BSE040795R1 AC 800 Module External Desktop Power Supply

Product Details:

Place of Origin:	FI
Brand Name:	ABB
Certification:	Does not supply
Model Number:	CI865K01 3BSE040795R1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	in box
Delivery Time:	3-5days
Payment Terms:	T/T, Western Union, PAYONEER
Supply Ability:	10

Contact Now

Detailed Product Description

Brand:	ABB	Channel Type:	DI
Weight:	0.3kg	Isolation:	Individually Galvanic Isolated Channels
Product Type:	I-O_Module	Product ID:	CI865K01 3BSE040795R1
RoHS Status:	Following EU Directive 2011/65/EU	Part Number:	CI865K01 3BSE040795R1

ABB CI865K01 3BSE040795R1 AC 800 Module External Desktop Power Supply

Description
The CI865 module is the AC 800M system’s communication interface for Satt ControlNet and bridges different bus standards used on AC 800M and Satt ControlNet. The CI865 module makes it possible to use older Satt I/O system (Rack I/O and Series 200 I/O) with the AC 800M controller platform, but it cannot be used as a general ControlNet interface. CI865 cannot be used in a High Integrity controller.

General info

Article number	3BSE040795R1
Communication protocol	ABB's Satt I/O
Master or slave	Master
Transmission speed	-
Line redundancy	No
Module redundancy	No
Hot Swap	Yes
Used together with HI Controller	No

Detailed data

Max units on CEX bus	4
Connector	BNC
24 V consumption typ.	typ 120 mA

Environment and certification

Temperature, Operating	+5 to +55 °C (+41 to +131 °F)
Temperature, Storage	-40 to +70 °C (-40 to +158 °F)
Corrosion protection	G3 compliant to ISA 71.04
Protection class	IP20 according to EN60529, IEC 529
CE- marking	Yes
RoHS compliance	DIRECTIVE/2011/65/EU (EN 50581:2012)
WEEE compliance	DIRECTIVE/2012/19/EU

Dimensions

Width	59 mm (2.3 in.)
Height	185 mm (7.3 in.)
Depth	127.5 mm (5.0 in.)
Weight (including base)	700 g (1.5 lbs)

Feature and benefit

Satt 19 inch rack I/O, a rack-based I/O system, can be connected to AC 800M using the CI865 interface module
CI865 supports online replacement (Hot Swap), and does not require any configuration before installation
The CI865 unit handles I/O scanning of up to 31 distributed I/O systems

FAQ:

Q: What is the brand name of the product?
A: The brand name of the product is ABB.
Q: What is the model number of the product?
A: The model number of the product is CI865K01 3BSE040795R1.
Q: Where is the product manufactured?
A: The product is manufactured in FI.
Q: What are the available payment terms?
A: The available payment terms are T/T, Western Union, and PAYONEER.
Q: What is the delivery time for the product?
A: The delivery time for the product is 3-5 days.
