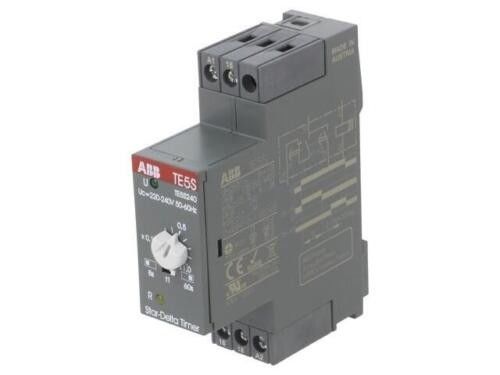

ABB TE5S-240 1SBN020010R1003 Electronic Timer Average Holding Value 50 Hz 6.5 V·A

Minimum Order Quantity: 1 piece

Customs Tariff Number: 85364900

Data Sheet, Technical Information: 1SBC100122C0202_Ch04

Product Net Width: 23 mm

Product Net Depth / Length: 75 mm

Product Net Height: 85 mm

Product Net Weight: 0.08 kg

Number of Main Contacts NC: 0

Number of Auxiliary Contacts NO: 1

Number of Auxiliary Contacts NC: 1

Rated Operational Voltage: Auxiliary Circuit 240 V

Rated Frequency (f): Auxiliary Circuit 50 / 60 Hz

Control Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (Ith): acc. to IEC 60947-5-1, Θ = 40 °C 10 A

Rated Operational Current AC-15 (Ie):

(24 / 127 V) 5 A

(220 / 240 V) 4 A

(380 / 400 V) 3 A

Short-Circuit Protective Devices: gG Type Fuses 10 A

Rated Operational Current DC-13 (Ie): (24 V) 4 A

Maximum Mechanical Switching Frequency: 720 cycles per hour

Rated Control Circuit Voltage (Uc): 50 Hz / 60 Hz 220 ... 240 V AC

Coil Consumption:

Average Holding Value 50 Hz 6.5 V·A

Average Holding Value 60 Hz 6.5 V·A

Connecting Capacity Auxiliary Circuit:

Flexible with Cable End 0.75 ... 2.5 mm²

Rigid Cable 1/2x 1 ... 2.5 mm²

Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

Terminal Type: Screw Terminals

Suitable For:

Resistance to Shock acc. to IEC 60068-2-27:

Half-sine Pulse for 11 ms, Shock Direction: A 20 m/s²

Half-sine Pulse for 11 ms, Shock Direction: B 15 m/s²

Half-sine Pulse for 11 ms, Shock Direction: C 20 m/s²

Conflict Minerals Reporting Template (CMRT):

REACH Declaration:

RoHS Information:

RoHS Status: Following EU Directive 2011/65/EU

WEEE B2C / B2B: Business To Business

WEEE Category:  5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Units:  box 1 piece

Package Level 1 Width: 23 mm

Package Level 1 Depth / Length: 75 mm

Package Level 1 Height: 85 mm

Package Level 1 Gross Weight: 0.08 kg

Package Level 1 EAN: 3471522121677
