Name: ABB DC522 B4 DIGITAL INPUT/OUTPUT MODULE 1SAP240600R0001
Brand: Wisdomlong Technology CO.，LTD
SKU: DC522 1SAP240600R0001
Price: 1.00 USD
Availability: InStock

Home Products Redundant Power Supply Module

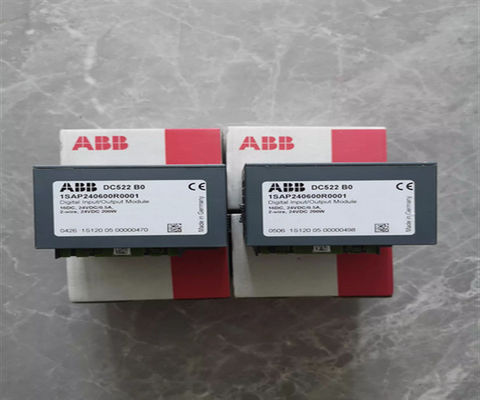

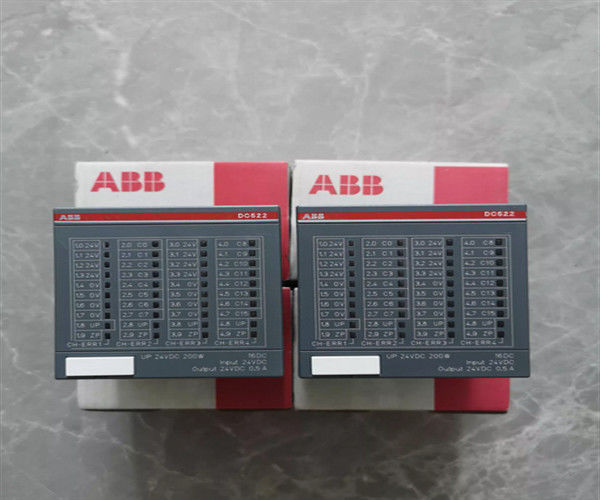

ABB DC522 B4 DIGITAL INPUT/OUTPUT MODULE 1SAP240600R0001

Product Details:

Place of Origin:	FI
Brand Name:	ABB
Certification:	Does not supply
Model Number:	DC522 1SAP240600R0001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	in box
Delivery Time:	3-5days
Payment Terms:	T/T, Western Union, PAYONEER
Supply Ability:	10

Contact Now

Detailed Product Description

Brand:	ABB	Channel Type:	DI
Weight:	0.3kg	Isolation:	Individually Galvanic Isolated Channels
Product Type:	I-O_Module	Product ID:	DC522 1SAP240600R0001
RoHS Status:	Following EU Directive 2011/65/EU	Part Number:	DI524 1SAP240000R0001

ABB Drives 1SAP240000R0001 DI524 S500 Digital Input Module

Ordering

CN8: 85389091

Invoice Description: Digital input/output module. 16 configurable DI/DO: 24VDC 0.5A. 8 aux. terminals 0 V. 8 aux. terminals 24VDC (DC522-XC)

Made To Order: No

Minimum Order Quantity: 1 piece

Order Multiple: 1 piece

Selling Unit of Measure: piece

Dimensions

Product Net Weight: 0.107 kg

Product Net Depth / Length: 62 mm

Product Net Height: 76 mm

Product Net Width: 67.5 mm

Gross Weight: 0.131 kg

Package Level 1 Depth / Length: 84 mm

Package Level 1 Height: 72 mm

Package Level 1 Width: 71 mm

Package Level 1 Units: 1 carton

Technical

Function: 16 configurable DI/DO: 24VDC 0.5A. 8 aux. terminals 0 V. 8 aux. terminals 24VDC

Number of Digital Configurable I/Os: 16

Input Voltage Type: DC

Input Current: 5 mA

Maximum Input Voltage: 0 ... 30 V

Delay Time (τ): 0.1 … 32 ms

Output: Transistor

Output Voltage Type: DC

Output Current: 0.5 A

Output Voltage Maximum: 20.4 … 28.8 V

Degree of Protection: IP20

Supply Voltage: 20.4 … 28.8 V DC

Additional Information

Product Main Type: DC522

Product Name: Distributed Automation I/Os

Classifications

eClass: 27-24-22-04

ETIM 8: EC001419 - PLC digital I/O-module

UNSPSC: 32151705

FAQ:

Q: What is the brand name of the product?
A: The brand name of the product is ABB.
Q: What is the model number of the product?
A: The model number of the product is DI524 1SAP240000R0001.
Q: Where is the product manufactured?
A: The product is manufactured in FI.
Q: What are the available payment terms?
A: The available payment terms are T/T, Western Union, and PAYONEER.
Q: What is the delivery time for the product?
A: The delivery time for the product is 3-5 days.
