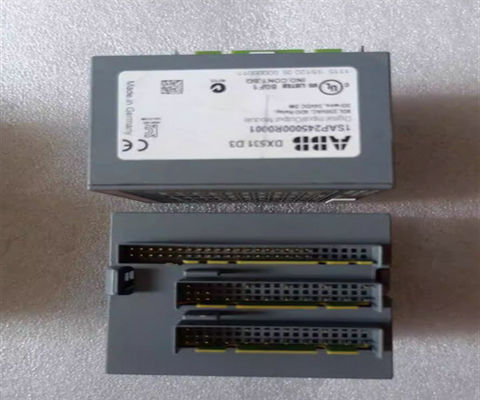

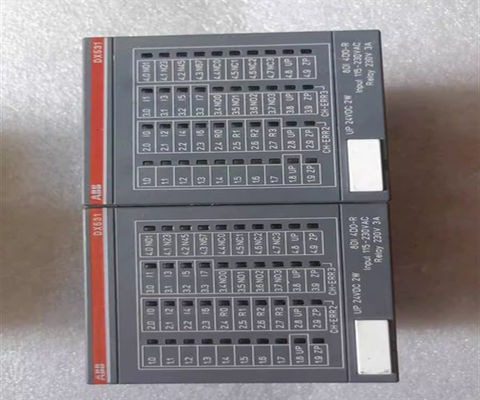

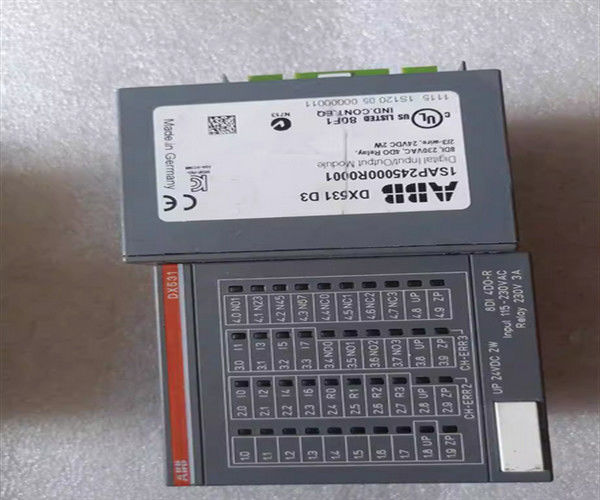

ABB DX531 1SAP245000R0001 Analog Input Module

Overview:

General Information

• Extended Product Type: DX531
• Product ID: 1SAP245000R0001
• ABB Type Designation: DX531
• EAN: 4016779650960
• Catalog Description: Digital input/output module with 8 digital inputs and 4 relay outputs, suitable for 24 to 230 V AC/DC, with a current rating of 3 A.
• Long Description: The DX531 is an S500 series digital I/O module featuring 8 digital inputs at 115-230 VAC and 4 relay outputs at 230 VAC with a current rating of 3 A, in a 2-wire configuration.

Ordering Information

• CN8 Code: 85389091
• Invoice Description: Digital input/output module with specifications matching the catalog description.
• Made To Order: No
• Minimum Order Quantity: 1 piece
• Order Multiple: 1 piece
• Selling Unit of Measure: Piece

Dimensions

• Product Net Weight: 0.151 kg
• Product Net Depth / Length: 62 mm
• Product Net Height: 76 mm
• Product Net Width: 67.5 mm
• Gross Weight: 0.175 kg
• Package Level 1 Depth / Length: 84 mm
• Package Level 1 Height: 72 mm
• Package Level 1 Width: 71 mm
• Package Level 1 Units: 1 carton

Technical Specifications

• Function: 8 Digital Inputs (115-230 VAC) and 4 Relay Digital Outputs (230 VAC, 3 A)
• Number of Analog Configurable I/Os: 0
• Number of Digital Inputs: 8
• Number of Digital Outputs: 4
• Number of Digital Configurable I/Os: 0
• Input Voltage Type: AC
• Maximum Input Voltage: 0 to 265 V
• Delay Time (τ): 20 to 20 ms
• Output: Relay
• Output Voltage Type: AC/DC
• Output Voltage (Uout): 24 to 230 V
• Output Current: 3 A
• Output Voltage Maximum: 195.5 to 276 V
• Degree of Protection: IP20
• Supply Voltage: 20.4 to 28.8 V DC
• Ambient Air Temperature (Operation): 0 to +60 °C
• Ambient Air Temperature (Storage): -40 to +70 °C

Additional Information

• Product Main Type: DX531
• Product Name: Distributed Automation I/Os

Classifications

• eClass: 27-24-22-04
• ETIM 8: EC001419 – PLC digital I/O-module
• UNSPSC: 32151705
