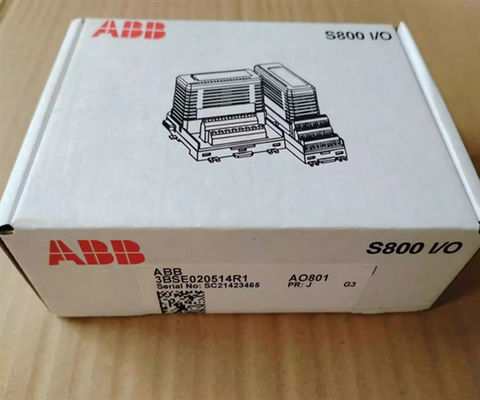

Name: AO801 3BSE020514R1 Analog Output 8 Ch ABB Redundant Power Supply Module
Brand: Wisdomlong Technology CO.，LTD
SKU: AO801 3BSE020514R1
Price: 1.00 USD
Availability: InStock

Home Products Redundant Power Supply Module

AO801 3BSE020514R1 Analog Output 8 Ch ABB Redundant Power Supply Module

Product Details:

Place of Origin:	FI
Brand Name:	ABB
Certification:	Does not supply
Model Number:	AO801 3BSE020514R1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	in box
Delivery Time:	3-5days
Payment Terms:	T/T, Western Union, PAYONEER
Supply Ability:	10

Contact Now

Detailed Product Description

Brand:	ABB	Channel Type:	DI
Weight:	0.3kg	Isolation:	Individually Galvanic Isolated Channels
Product Type:	I-O_Module	Product ID:	AO801 3BSE020514R1
RoHS Status:	Following EU Directive 2011/65/EU	Part Number:	AO801 3BSE020514R1
Highlight:	AO801 Redundant Power Supply Module , 3BSE020514R1 Redundant Power Supply Module , 8 Ch Redundant Power Supply Module

AO801 3BSE020514R1 Analog Output 8 Ch ABB Redundant Power Supply Module

Description

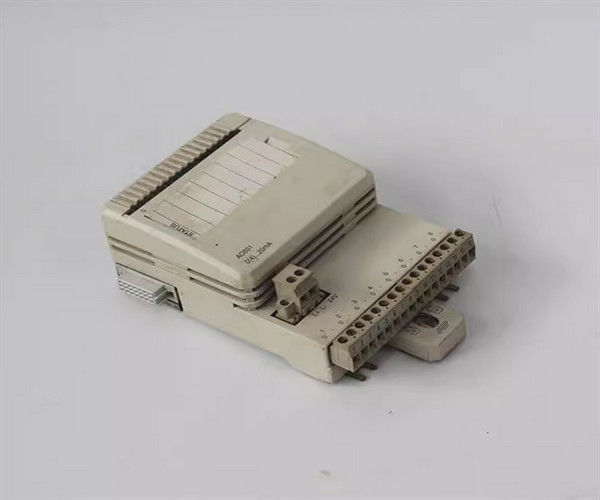

The AO801 Analog Output Module has 8 unipolar analog output channels. The module performs selfdiagnostic cyclically. A low internal power supply sets the module in INIT state (no signal from the module).

General info

Article number	3BSE020514R1
Type	Analog Output
Signal specification	0... 20 mA, 4...20 mA
Number of channels	8
Signal type	Unipolar single ended
HART	No
SOE	No
Redundancy	No
High integrity	No
Intrinsic safety	No
Mechanics	S800L

Detailed data

Resolution	12 bit
Isolation	Groupwise isolated from ground
Under/over range	- / +15%
Output load	Max 850 Ω
Error	0,1 %
Temperature drift	Typ 30 ppm/°C, Max 50 ppm/°C
Rise Time	10 µs
Update cycle time	1 ms
Current limiting	Short circuit proof current limited output
Maximum field cable length	600 meters (656 yards)
Rated insulation voltage	50 V
Dielectric test voltage	500 V a.c.
Power dissipation	3.8 W
Current consumption +5 V Modulebus	70 mA
Current consumption +24 V Modulebus	-
Current consumption +24 V external	200 mA
Supported wire size	Solid: 0.05-2.5 mm², 30-12 AWG Stranded: 0.05-1.5 mm², 30-12 AWG Recommended torque: 0.5-0.6 Nm Stripping length 6-7.5mm, 0.24-0.30 inch

Dimensions

Width	86.1 mm (3.4”)
Depth	58.5 mm (2.3”)
Height	110 mm (4.33”)
Weight	0.24 kg (0.53 lbs.)

Features and benefits

8 channels of 0...20 mA, 4...20 mA outputs
OSP sets outputs to predetermined state upon error detection
Analog Output is to be short circuit secured to ZP or +24 V
Process and power connection via detachable connectors

FAQ:

Q: What is the brand name of the product?
A: The brand name of the product is ABB.
Q: What is the model number of the product?
A: The model number of the product is AO801 3BSE020514R1.
Q: Where is the product manufactured?
A: The product is manufactured in FI.
Q: What are the available payment terms?
A: The available payment terms are T/T, Western Union, and PAYONEER.
Q: What is the delivery time for the product?
A: The delivery time for the product is 3-5 days.
