Name: ABB 3BSE008516R1 Analog Input Output Termination Module AI810
Brand: Wisdomlong Technology CO.，LTD
SKU: AI810 3BSE008516R1
Price: 1.00 USD
Availability: InStock

Home Products Redundant Power Supply Module

ABB 3BSE008516R1 Analog Input Output Termination Module AI810

Product Details:

Place of Origin:	FI
Brand Name:	ABB
Certification:	Does not supply
Model Number:	AI810 3BSE008516R1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	in box
Delivery Time:	3-5days
Payment Terms:	T/T, Western Union, PAYONEER
Supply Ability:	10

Contact Now

Detailed Product Description

Brand:	ABB	Channel Type:	DI
Weight:	0.3kg	Isolation:	Individually Galvanic Isolated Channels
Product Type:	I-O_Module	Product ID:	AI810 3BSE008516R1
RoHS Status:	Following EU Directive 2011/65/EU	Part Number:	AI810 3BSE008516R1

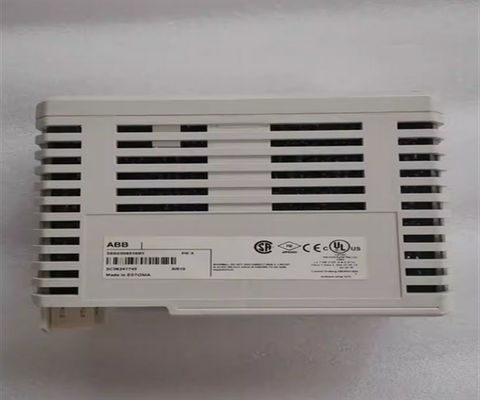

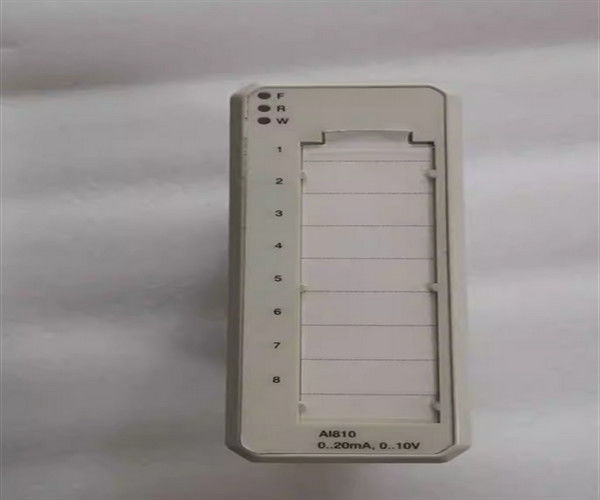

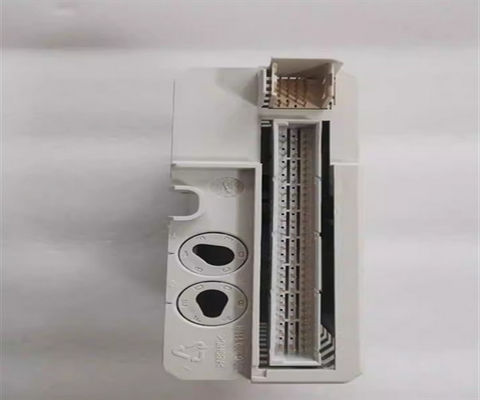

ABB 3BSE008516R1 Analog Input Output Termination Module AI810

Description

The AI810 Analog Input Module has 8 channels. Each channel can be either a voltage or current input. The current input is able to handle a short circuit to the transmitter supply at least 30 V d.c without damage. Current limiting is performed with a PTC resistor. The input resistance of the current input is 250 ohm, PTC included.

The voltage input is able to withstand an over or undervoltage of at least 30 V d.c. Input resistance is 290k ohm. Transmitter supply can be connected to L1+, L1- and/or L2+, L2-.

General info

Article number	3BSE008516R1
Type	Analog Input
Signal specification	0..20mA, 4..20mA, 0..10V, 2..10V
Number of channels	8
Signal type	Unipolar single ended
HART	No
SOE	No
Redundancy	No
High integrity	No
Intrinsic safety	No
Mechanics	S800

Detailed data

Resolution	12 bit
Input impedance	290 kΩ (voltage input) 230 - 275 kΩ (current input)
Isolation	Groupwise isolated from ground
Under/over range	-5% / +15%
Error	Max. 0.1%
Temperature drift	Voltage: Typ. 70 ppm/°C Max. 100 ppm/°C; Current: Typ. 50 ppm/°C Max. 80 ppm/°C
Input filter (rise time 0-90%)	140 ms
Update cycle time	8 ms
Current limiting	Transmitter power can be current limited by the MTU
Maximum field cable length	600 meters (656 yards)
Max input voltage (non destructive)	30 V d.c.
NMRR, 50Hz, 60Hz	> 40 dB
Rated insulation voltage	50 V
Dielectric test voltage	500 V a.c.
Power dissipation	1.5 W
Current consumption +5 V Modulebus	70 mA
Current consumption +24 V Modulebus	40 mA
Current consumption +24 V external	0

Diagnostics

Front LED’s	F(ault), R(un), W(arning)
Supervision	Internal power supply
Status indication of supervision	Module Error, Module Warning, Channel error

Dimensions

Width	45 mm (1.77”)
Depth	102 mm (4.01”), 111 mm (4.37”) including connector
Height	119 mm (4.7”)
Weight	0.2 kg (0.44 lbs.)

Features and benefits

8 channels for 0...20 mA, 4...20 mA, 0...10 V or 2...10 V d.c., single ended unipolar inputs
1 group of 8 channels isolated from ground
12 Bit resolution
Input shunt resistors protected to 30 V by PTC resistor
Analog inputs are short circuit secured to ZP or +24 V
The input withstand HART communication.

FAQ:

Q: What is the brand name of the product?
A: The brand name of the product is ABB.
Q: What is the model number of the product?
A: The model number of the product is AI810 3BSE008516R1.
Q: Where is the product manufactured?
A: The product is manufactured in FI.
Q: What are the available payment terms?
A: The available payment terms are T/T, Western Union, and PAYONEER.
Q: What is the delivery time for the product?
A: The delivery time for the product is 3-5 days.

Wisdomlong Technology CO.,LTD Featured Products:
【Yaskawa】Servo Drive / Servo Motor
【Mitsubishi】Servo Drive / Servo Motor
【Honeywell】Module DCS / PLC
【Emerson】DeltaV Module / Servo Motor
【ABB】Input Output Module
【AB】Module / Touch Screen
【GE】IC69 Series PLC/ Fanuc Servo Motor and Drive

ABB 3BSE008516R1 Analog Input Output Termination Module AI810 0
