Name: TB825 3BSE036634R1 Optical Media Converter Single Mode ABB
Brand: Wisdomlong Technology CO.，LTD
SKU: TB825 3BSE036634R1
Price: 1.00 USD
Availability: InStock

Home Products Redundant Power Supply Module

TB825 3BSE036634R1 Optical Media Converter Single Mode ABB

Product Details:

Place of Origin:	FI
Brand Name:	ABB
Certification:	Does not supply
Model Number:	TB825 3BSE036634R1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	in box
Delivery Time:	3-5days
Payment Terms:	T/T, Western Union, PAYONEER
Supply Ability:	10

Contact Now

Detailed Product Description

Brand:	ABB	Channel Type:	DI
Weight:	0.3kg	Isolation:	Individually Galvanic Isolated Channels
Product Type:	I-O_Module	Product ID:	TB825 3BSE036634R1
RoHS Status:	Following EU Directive 2011/65/EU	Part Number:	TB825 3BSE036634R1

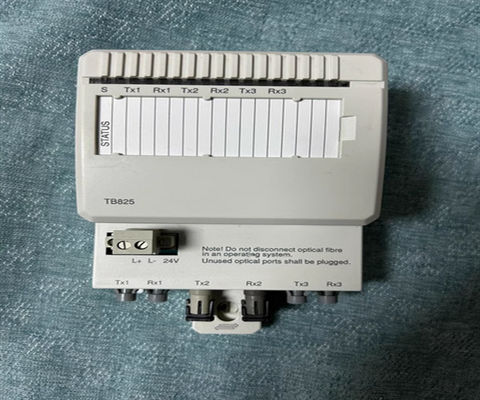

TB825 3BSE036634R1 Optical Media Converter Single Mode ABB

Description of TB825 3BSE036634R1
S800 I/O is a comprehensive. distributed and modular process I/O system that communicates with parent controllers and PLCs over industry-standard field buses. The TB825 ModuleBus Optical media converter, converts between plastic opto fiber or HCS fiber with versatile link connectors and glass optical fiber with ST connetcors.
The TB825 is built in S800L mechanics and DIN rails mounted. TB825 allows distribution of the optical ModuleBus up to 1000 m per cluster in star configurations.

General info

Article number	3BSE036634R1
Communication protocol	Modulebus
Master or slave	Slave
Line redundancy	No
Module redundancy	No
Hot Swap	No
Used together with HI Controller	Yes

Detailed data

24 V consumption typ.

96 mA

Environment and certification of TB825 3BSE036634R1

CE- marking	Yes
Electrical Safety	EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201
Hazardous location	C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
Marine certificates	ABS, BV, DNV-GL, LR
Temperature, Operating	0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C
Temperature, Storage	-40 to +70 °C (-40 to +158 °F)
Pollution degree	Degree 2, IEC 60664-1
Corrosion protection	ISA-S71.04: G3
Relative humidity	5 to 95 %, non-condensing
Max ambient temperature	55 °C (131 °F), for vertical mounting 40 °C (104 °F)
Protection class	IP20 according to EN60529, IEC 529
RoHS compliance	DIRECTIVE/2011/65/EU (EN 50581:2012)
WEEE compliance	DIRECTIVE/2012/19/EU

Dimensions

Width	85.6 mm (3.37 in.)
Height	136 mm (5.35 in.) including latch
Depth	58.5 mm (2.30 in.)
Weight	0.21 kg (0.46 lbs)

Features and benefits of TB825 3BSE036634R1

Converts between plastic or HCS optp fiber and glass optical fiber
DIN rail mounted
Multi Mode functionallity
S800L mechanics

FAQ:

Q: What is the brand name of the product?
A: The brand name of the product is ABB.
Q: What is the model number of the product?
A: The model number of the product is TB825 3BSE036634R1.
Q: Where is the product manufactured?
A: The product is manufactured in FI.
Q: What are the available payment terms?
A: The available payment terms are T/T, Western Union, and PAYONEER.
Q: What is the delivery time for the product?
A: The delivery time for the product is 3-5 days.
