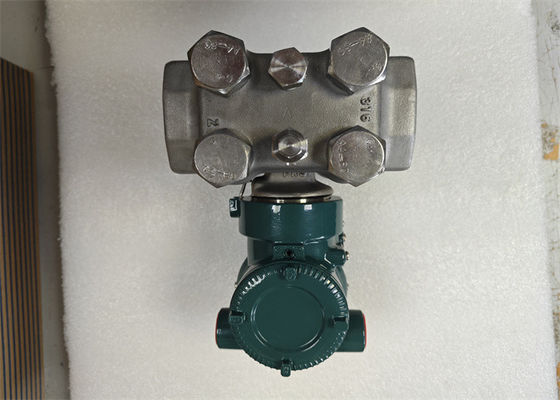

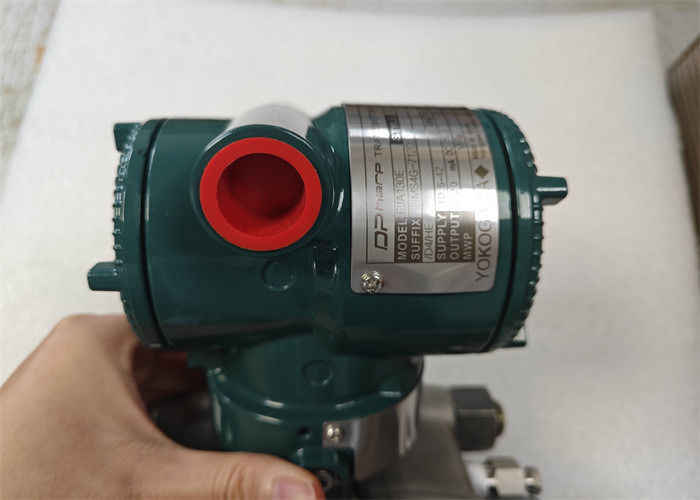

EJA130E-DMS4G-712DD /D4/HE CE Approved Pressure Transmitter with 4-20 mA HART Output
Product Description:
The High Performance Differential Pressure Transmitter
The EJA130E is a state-of-the-art differential pressure transmitter designed to measure liquid, gas, or steam flow, as well as liquid level, density, and pressure. It features a single crystal silicon resonant sensor, which ensures high accuracy and stability when measuring static pressure. The EJA130E outputs a 4 to 20 mA DC signal that corresponds to the measured differential pressure, and it is equipped with an integral indicator and remote monitoring capabilities via BRAIN or HART communications. Quick response, self-diagnostics, and remote set-up using communications are other key features of this transmitter.
The EJA-E series models are available in standard configuration with various communication protocols, including FOUNDATION Fieldbus, PROFIBUS PA, and 1 to 5 V DC with HART (Low Power) protocol types. The standard configuration is certified as complying with SIL 2 for safety requirements.
Standard Specifications
For Fieldbus communication type, refer to GS 01C31T02-01EN. For PROFIBUS PA communication type, refer to GS 01C31T04-01EN.
Span and Range Limits
The EJA130E offers a wide range of span and range limits for various measurements:
| Measurement |
Span/Range |
kPa inH2O (/D1) |
mbar (/D3) |
mmH2O (/D4) |
M |
| Span |
1 to 100 |
4 to 400 |
10 to 1000 |
100 to 10000 |
| Range |
-100 to 100 |
-400 to 400 |
-1000 to 1000 |
-10000 to 10000 |
| H |
5 to 500 |
20 to 2000 |
50 to 5000 |
0.05 to 5 kgf/cm2 |
| Range |
-500 to 500 |
-2000 to 2000 |
-5000 to 5000 |
-5 to 5 kgf/cm2 |
| V |
0.14 to 14 MPa |
20 to 2000 psi |
1.4 to 140 bar |
1.4 to 140 kgf/cm2 |
| Range |
-0.5 to 14 MPa |
-71 to 2000 psi |
-5 to 140 bar |
-5 to 140 kgf/cm2 |
Performance Specifications
The EJA-E series ensures specification conformance to at least ±3σ. It is zero-based calibrated span with a linear output and wetted parts material code S and silicone oil, unless otherwise mentioned. For Fieldbus and PROFIBUS PA communication types, use calibrated range instead of span in the following specifications.
Applications:
The model number of this product is EJA130E-DMS4G-712DD /D4/HE. It has a minimum order quantity of 1 and the price can be obtained by contacting the supplier. The packaging details are original, and the delivery time is 3-5 days. Payment terms are TT and the supply ability can be obtained by contacting the supplier.
The YOKOGAWA Pressure Temperature Transmitter is perfect for use in a variety of different applications. It is great for use in power plants, chemical plants, and oil refineries. The product is also ideal for use in water treatment facilities, food processing plants, and pharmaceutical manufacturing facilities. It is also suitable for use in HVAC systems and building automation systems.
The ambient humidity limits of the YOKOGAWA Pressure Temperature Transmitter are 0 to 100% RH, making it suitable for use in a range of different environments. The product has a weight of 6.8 kg (14.3 lb) without integral indicator, mounting bracket, and process connector. Add 1.5 kg (3.3 lb) for amplifier housing code 2.
The accuracy of the YOKOGAWA Pressure Temperature Transmitter is the same as reference accuracy reference accuracy × 50 square root output (%). The connections for the product can be found in the “MODEL AND SUFFIX CODES” section. The process connection of the cover flange is IEC61518.
Compared to other pressure transmitters like ABB Pressure Transmitter and Emerson Rosemount Pressure Transmitter, the YOKOGAWA Pressure Temperature Transmitter stands out due to its high accuracy, reliability, and durability. It is a great choice for anyone looking for a top-quality pressure and temperature transmitter.
Support and Services:
The Pressure Temperature Transmitter product comes with the following technical support and services:
- Installation assistance and guidance
- Troubleshooting and problem-solving assistance
- Product repair and maintenance services
- Calibration and testing services
- Technical documentation and user manuals
Our team of highly skilled technicians and engineers are available to assist with any technical issues or questions you may have. We are committed to providing excellent customer service and ensuring that our products meet your expectations.
Packing and Shipping:
Product Packaging:
The pressure temperature transmitter is packaged in a sturdy cardboard box with foam inserts for added protection during transportation. The transmitter is securely placed in the center of the box and all necessary accessories and documentation are included.
Shipping:
The pressure temperature transmitter will be shipped via a reliable courier service. Shipping costs will vary depending on the destination and urgency of the shipment. Please allow 2-3 business days for processing and handling before the item is shipped.
