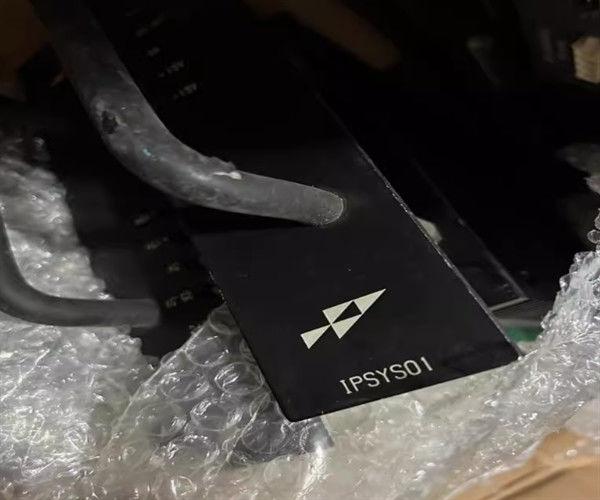

IPSYS01 | ABB | SYSTEM POWER MODULE Redundant Power Supply Module
Description of IPSYS01
The ABB IPSYS01 System Power is a rack-mounted circuit board that supplies 5 VDC, 15 VDC, and –15 VDC system operating voltages to rack I/O devices and 24 VDC field I/O power to a cabinet. It is part of the Modular Power System II (MPS II), which supplies power to Harmony components of the Symphony™ Enterprise Management and Control System.
Features
- Supplies 5 VDC, 15 VDC, –15 VDC, 24 VDC, 48 VDC, and 125 VDC power to Harmony components
- Modular design allows for easy expansion and maintenance
- High efficiency and reliability
- Integrated safety features
- Comprehensive monitoring and diagnostics
Technical Specifications
-
- Input voltage: 120/240 VAC, 125 VDC
- Output voltages: 5 VDC, 15 VDC, –15 VDC, 24 VDC, 48 VDC, and 125 VDC
- Output current: Up to 60 A per output
- Efficiency: Up to 95%
- Operating temperature: -40 to +70°C
The ABB Harmony Modular Power System II is designed to be flexible so that it can be easily adapted to the needs of the application.
When two power sources are utilized the Modular Power System II can be split into two sections with four power module slots per section. This 2N split architecture offers the highest level of power availability. Each section supplies only 50 percent of the load under normal conditions but is capable of supplying 100 percent of the load under a failure condition. The low stress at 50 percent of capacity assures a long lifetime.
When only one power source is used to supply secure power to the Modular Power System II, the two sections of the split architecture are strapped together providing N+x power architecture. Each power module is supplied from one source and shares the load equally.
FAQ:
Q: What is the brand name of the product?
A: The brand name of the product is ABB.
Q: What is the model number of the product?
A: The model number of the product is P-HC-BRC-10000000.
Q: Where is the product manufactured?
A: The product is manufactured in FI.
Q: What are the available payment terms?
A: The available payment terms are T/T, Western Union, and PAYONEER.
Q: What is the delivery time for the product?
A: The delivery time for the product is 3-5 days.
