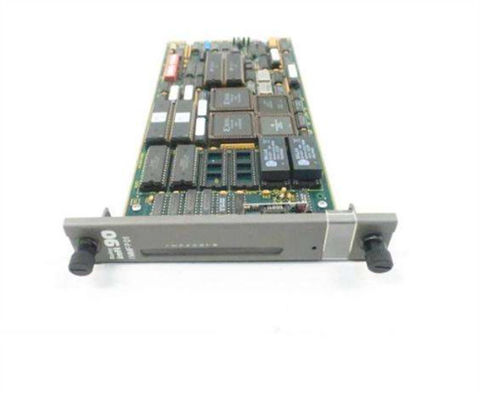

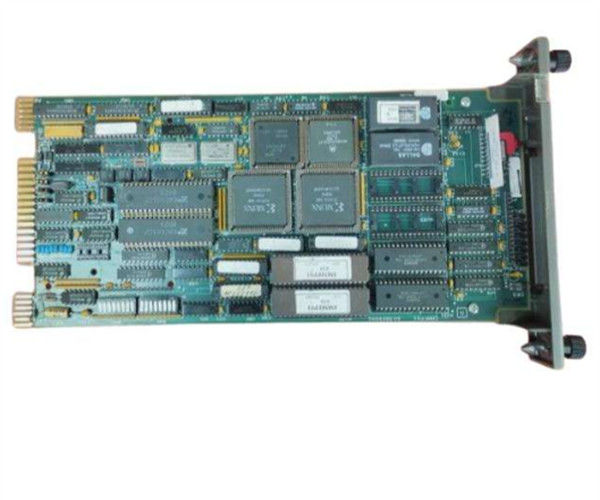

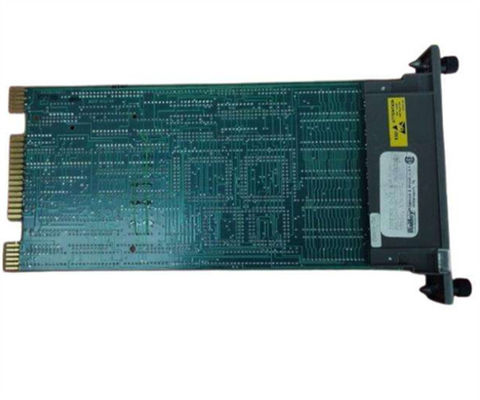

Bailey Controls IMMFP01 infi90 Multi-Function Processor Interface Module with DI Channel Type

Bailey Controls IMMFP01 infi90 Multi-Function Processor Interface Module

Description  of  IMMFP01

The IMMFP01 Multi-Function Processor Module is a powerful stand-alone controller for use in complex control applications. It has the processing speeds and storage capabilities necessary for advanced control applications. The IMMFP01 module is a user-configurable device that receives process input and output through a variety of analog and digital I/O modules.
This instruction manual provides information about how the IMMFP01 module works and how to install, configure, operate, and troubleshoot the module.

The IMMFP01 Multi-Function Processor Module (MFP) is one of the workhorses of the INFI 90® control module line. It is a multiple loop analog, sequential, batch and advanced controller that provides powerful solutions to process control problems. It also handles data acquisition and information processing requirements providing true peer-to-peer communications. The comprehensive set of function codes supported by this module handles even the most complex control strategies. The INFI 90 system uses a variety of analog and digital I/O modules to communicate with and control the process. The MFP module communicates with a maximum of 64 I/O modules in any combination (see Figure 1-1).
The MFP module has three operating modes: execute, configure and error. In the execute mode, the MFP module executes control algorithms while constantly checking itself for errors. When an error is found, the front panel LEDs display an error code corresponding to the type of error found. In the configure mode, it is possible to edit existing or add new control algorithms. In this mode, the MFP module does not execute control algorithms. If the MFP module finds an error while in execute mode, it automatically goes into error mode. Refer to Section 4 of this manual for operating mode details.
A one-megabaud CPU to CPU communication link allows the MFP module to accommodate redundant processors. This link enables a backup MFP module to wait in a hot standby mode while the primary MFP module executes the control algorithms. If the primary MFP module goes off-line for any reason, a bumpless transfer of control to the backup MFP module occurs.

The power architecture of the Harmony Modular Power System II is designed to be flexible so that it can be easily adapted to the needs of the application. When two power sources are utilized the Modular Power System II can be split into two sections with four power module slots per section. This 2N split architecture offers the highest level of power availability. Each section supplies only 50 percent of the load under normal conditions but is capable of supplying 100 percent of the load under a failure condition. The low stress at 50 percent of capacity assures a long life time.
When only one power source is used to supply secure power to the Modular Power System II, the two sections of the split architecture are strapped together providing N+x power architecture. Each power module is supplied from one source and shares the load equally

Specifications of IMMFP01

• Microprocessor:

  • 32-bit processor (16-bit external bus)
  • Operating speed: 16 MHz

• Memory:

  • Total Memory:
    • 512 kbytes ROM
    • 256 kbytes RAM
    • 64 kbytes NVRAM
  • Available Memory:
    • 163,248 bytes RAM
    • 62,656 bytes NVRAM

• Power Requirements:

  • +5 VDC @ 2 A (10 W typical)

• Serial Ports:

  • Two RS-232-C ports, or
  • One RS-485 and one RS-232-C port
  • Data rate: up to 19.2 kbaud

• Station Support:

  • Sixty-four 40-kbaud serial stations (IISAC01)
  • Eight 5-kbaud serial stations (NDCS03 or NDIS01)
