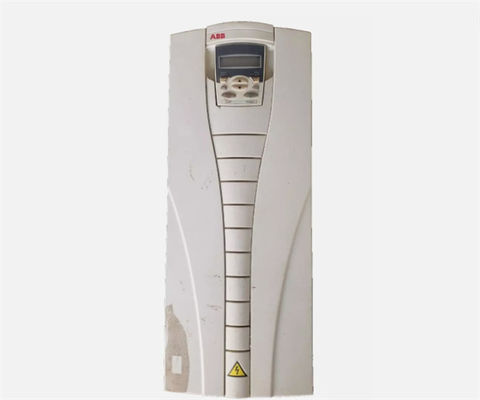

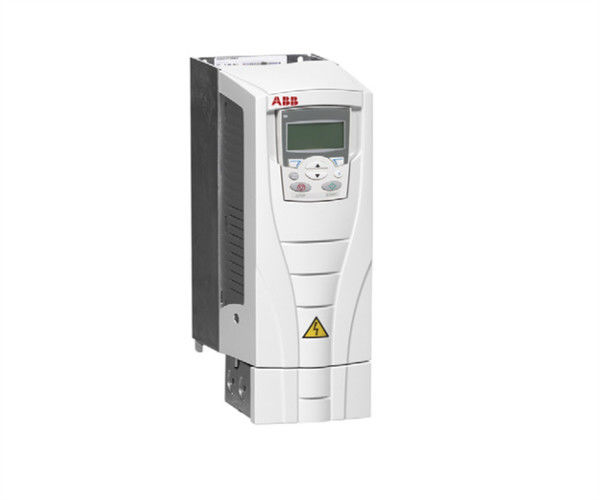

Name: ABB ACS550-01-072A-4 Frequency Converter Lightweight and Powerful for Industrial
Brand: Wisdomlong Technology CO.，LTD
SKU: ACS550-01-072A-4
Price: 1.00 USD
Availability: InStock

Home Products Redundant Power Supply Module

ABB ACS550-01-072A-4 Frequency Converter Lightweight and Powerful for Industrial

Product Details:

Place of Origin:	FI
Brand Name:	ABB
Certification:	Does not supply
Model Number:	ACS550-01-072A-4

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	in box
Delivery Time:	2-5days
Payment Terms:	T/T, L/C
Supply Ability:	10

Contact Now

Detailed Product Description

Brand:	ABB	Channel Type:	DI
Isolation:	Individually Galvanic Isolated Channels	Product Type:	I-O_Module
Product ID:	ACS550-01-072A-4	RoHS Status:	Following EU Directive 2011/65/EU
Part Number:	ACS550-01-072A-4
Highlight:	Industrial ACS550-01-072A-4 , Industrial Frequency Converter , ACS550-01-072A-4 Frequency Converter

3AUA0000002547 | ABB | ACS550-01-072A-4 Frequency Converter

Description of ACS550-01-072A-4
ACS550 frequency inverter is ideal for variable and constant torque applications from pumps and fans to conveyors and mixers as well as many other variable and constant torque applications. It is simple to install, configure and use, saving considerable time as most features are built-in as standard. The product offers a high functionality to cater to the needs for speed and torque control of AC induction motors. Several programming tools are available for easy dimensioning, commissioning and maintenance. The drive meets the requirements of new drive users, installers, machine builders, system integrators and panel builders.

Detail of ACS550-01-072A-4

Manufacturer:	ABB
Series:	ACS550
Model:	ACS550-01-072A-4
Application:	pumps / fans / general purpose
Capacity, kW:	37
Current, А:	72
Main power supply, V:	380~480
Phase:	3
Output frequency, Hz:	0-500
Enclosure:	IP 21 (IP 54 optional)
Overload capacity, % per 1 min.:	110
Acceleration time, sec:	0,1-1800
Deceleration time, sec:	0,1-1800
EMC filter:	+
Braking unit:	optional
Analog input:	2
Digital input:	6
Analog output:	2
Digital output:	-
Relay output:	3
RS485 (Modbus RTU):	+
PID:	PID - regulation
V/f control mode:	-
Vector control with feedback:	-
Sensorless vector control:	+
Operation temperature, °С:	-15......+40
Storage temperature, °С:	-15......+40
Dimensions (W x H x D), mm:	203х689х262
Weight, kg:	24

General Information of ACS550-01-072A-4

Global Commercial Alias:

ACS550-U1-072A-4

Product ID:

3AUA0000002203

ABB Type Designation:

ACS550-U1-072A-4

EAN:

6438177212942

Catalog Description:

ACS550-U1-072A-4,50HP/72AMPS,50HP,380-500V +-10%,IP21-NEMA1,R4,48-63Hz,Dir Connect,Bot/Side Conduit

Long Description:

ACS550-U1-072A-4

Ordering of ACS550-01-072A-4

Core Credit: 0.00

Customs Tariff Number: 85044080

HS Code: 850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters

Invoice Description: ACS550-U1-072A-4,50HP/72AMPS,50HP,380-500V +-10%,IP21-NEMA1,R4,48-63Hz,Dir Connect,Bot/Side Conduit

Made To Order: No

Minimum Order Quantity: 1 EA

Order Multiple: 1 EA

Quote Only: No

Selling Unit of Measure: each
