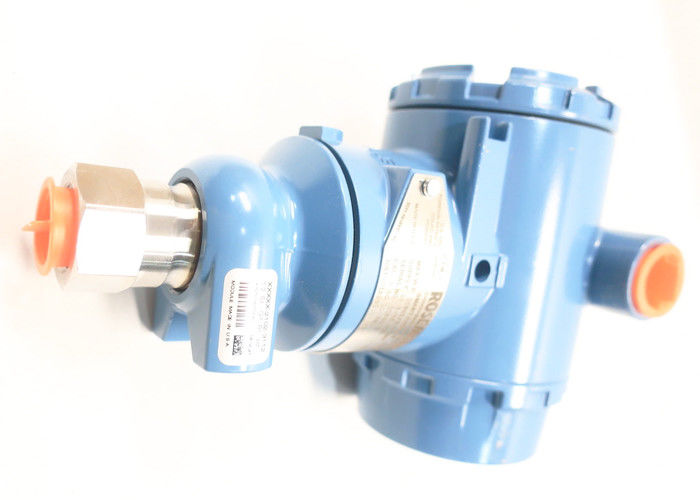

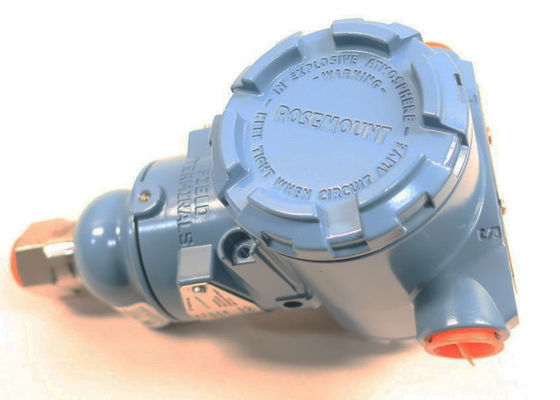

3051CD3A02A1AH2KDL5M5Q4Q8 Rosemount 3051C Coplanar Pressure Transmitters
Rosemount 3051C Coplanar Pressure Transmitters are the industry standard for differential, gage, and absolute pressure measurement. The coplanar platform enables seamless integration with manifolds, flow, and level solutions.
Capabilities include:
1) The Loop Integrity Diagnostic continuously monitors the electrical loop to detect changes that compromise the integrity of the transmitted 4-20mA output signal .
2) LOI with straightforward menus and built-in configuration buttons .
3) Safety certification.
(1) If ordered with Wireless output code X, only available with 316L stainless steel (SST) diaphragm material (code 2), and silicone fill fluid.
(2) Rosemount 3051CD0 is only available with output code A and X. For output code A, only process flange code 0 (Alternate flange H2, H7, HJ,or HK), isolating diaphragm code 2, O ring code A, and bolting option L4 are available. For output code X, only process flange code 0 (Alternate flange H2), isolating diaphragm code 2, O ring code A, and bolting option L4 are available.
(3) HART Revision 5 is the default HART output.
(4) For local addressing and configuration, M4 (LOI) is required.
(5) Available approvals are FM Intrinsically Safe, (option code I5), CSA Intrinsically Safe (option code I6), ATEX Intrinsic Safety (option code I1),IECEx Intrinsic Safety (option code I7) and EAC Intrinsic Safety (option code IM).
More options :
3051TA3A2B21AB4M5E5
3051TA4A2B21AB4M5E5
3051TA5A2B21AB4M5E5
3051TA1A2B21AB4M5I5
3051TA2A2B21AB4M5I5
3051TA3A2B21AB4M5I5
3051TA4A2B21AB4M5I5
3051TA5A2B21AB4M5I5
3051GP1A2B21AB4M5
3051GP2A2B21AB4M5
3051GP3A2B21AB4M5
3051GP4A2B21AB4M5
SGD-02ANY6
SGD-02AP
SGD-02AS
SGD-02BH
SGD-02BP
SGD-02BS+SGM-02B312
SGD-02BS+SGM-02B314
SGD-04AN
SGD-04AN+SGM-04A3NT12
SGD-04AP
SGD-04APY61
SGD-04AS
SGD-04ASY52
SGD-04ASY53
SGD-08AH
SGD-08AN
SGD-08AP
SGD-08APY61
Rosemount 3051C Coplanar Pressure Transmitters Information :
| Model |
Transmitter type |
| 3051C |
Coplanar pressure transmitter |
|
| Measurement type |
| D |
Differential |
★ |
| G |
Gage |
★ |
| A(1) |
Absolute |
|
| Pressure range |
| |
Differential (Rosemount 3051CD) |
Gage (Rosemount 3051CG) |
Absolute (Rosemount 3051CA) |
|
| 1 |
–25 to 25 inH2O (–62,16 to 62,16
mbar)
|
–25 to 25 inH2O (–62,16 to
62,16 mbar)
|
0 to 30 psia (0 to 2,06 bar) |
★ |
| 2 |
–250 to 250 inH2O (–621,60 to
621,60 mbar)
|
–250 to 250 inH2O (–621,60 to
621,60 mbar)
|
0 to 150 psia (0 to 10,34 bar) |
★ |
| 3 |
–1000 to 1000 inH2O (–2,48 to
2,48 bar)
|
–393 to 1000 inH2O (–0,97 to
2,48 bar)
|
0 to 800 psia (0 to 55,15 bar) |
★ |
| 4 |
–300 to 300 psi (–20,68 to 20,68
bar)
|
–14.2 to 300 psi (–0,97 to 20,68
bar)
|
0 to 4000 psia (0 to 275,79 bar) |
★ |
| 5 |
–2000 to 2000 psi (–137,89 to
137,89 bar)
|
–14.2 to 2000 psi (–0,97 to
137,89 bar)
|
N/A |
★ |
| 0(2) |
–3 to 3 inH2O (-7,46 to 7,46 mbar) |
N/A |
N/A |
|
| Transmitter output |
| A(3) |
4–20 mA with digital signal based on HART® Protocol |
★ |
| F |
FOUNDATION™ Fieldbus Protocol |
★ |
| W(4) |
PROFIBUS® PA Protocol |
★ |
| X (5) |
Wireless (requires wireless options and engineered polymer housing) |
★ |
| M(6) |
Low-power, 1–5 Vdc with digital signal based on HART Protocol |
|
| Materials of construction |
| |
Process flange type |
Flange material |
Drain/vent |
|
| 2 |
Coplanar |
SST |
SST |
★ |
| 3(7) |
Coplanar |
Cast C-276 |
Alloy C-276 |
★ |
| 4 |
Coplanar |
Alloy 400 |
Alloy 400/K-500 |
★ |
| 5 |
Coplanar |
Plated CS |
SST |
★ |
| 7(7) |
Coplanar |
SST |
Alloy C-276 |
★ |
| 8(7) |
Coplanar |
Plated CS |
Alloy C-276 |
★ |
| 0 |
Alternate process connection |
★ |
| Isolating diaphragm |
| 2(7) |
316L SST |
★ |
| 3(7) |
Alloy C-276 |
★ |
| 4(8) |
Alloy 400 |
|
| 5(8) |
Tantalum (available on Rosemount 3051CD and CG, ranges 2–5 only; not available on Rosemount 3051CA) |
|
| 6(8) |
Gold-plated alloy 400 (use in combination with O-ring option code B) |
|
| 7(8) |
Gold-plated 316 SST |
|
| O-ring |
|
| A |
Glass-filled PTFE |
★ |
| B |
Graphite-filled PTFE |
★ |
| Sensor fill fluid |
| 1 |
Silicone |
★ |
| 2(8) |
Inert (differential and gage only) |
★ |
| Housing material |
Conduit entry size |
|
| A |
Aluminum |
½–14 NPT |
★ |
| B |
Aluminum |
M20 x 1.5 |
★ |
| E |
Aluminum, ultra low copper |
½–14 NPT |
★ |
| F |
Aluminum, ultra low copper |
M20 x 1.5 |
★ |
| J |
SST |
½–14 NPT |
★ |
| K |
SST |
M20 x 1.5 |
★ |
| P(9) |
Engineered polymer |
No conduit entries |
★ |
| D(10) |
Aluminum |
G½ |
|
| M(10) |
SST |
G½ |
|
| Wireless options(11) |
| Wireless transmit rate, operating frequency, and protocol |
| WA3 |
User Configurable Transmit Rate, 2.4 GHz WirelessHART |
★ |
| Antenna and SmartPower™ |
| WP5 |
Internal antenna, compatible with Green Power Module (I.S. Power Module sold separately) |
★ |
| Options |
| Extended product warranty |
| WR3 |
3-year limited warranty |
★ |
| WR5 |
5-year limited warranty |
★ |
| Plantweb™ control functionality |
| A01 |
FOUNDATION Fieldbus control function block suite |
★ |
| Plantweb diagnostic functionality |
|
| DA0 |
Loop Integrity HART Diagnostic |
★ |
| D01 |
FOUNDATION Fieldbus Diagnostics Suite |
★ |
| Alternate flange(12) |
| H2 |
Traditional flange, 316 SST, SST drain/vent |
★ |
| H3(7) |
Traditional flange, alloy C, alloy C-276 drain/vent |
★ |
| H4 |
Traditional flange, cast alloy 400, alloy 400/K-500 drain/vent |
★ |
| H7(7) |
Traditional flange, 316 SST, alloy C-276 drain/vent |
★ |
| HJ |
DIN-compliant traditional flange, SST, 7/16-in. (10 mm) adapter/manifold bolting |
★ |
| FA |
Level flange, SST, 2-in. (51 mm), ANSI class 150, vertical mount 316 SST drain/vent |
★ |
| FB |
Level flange, SST, 2-in. (51 mm), ANSI Class 300, vertical mount 316 SST drain/vent |
★ |
| FC |
Level flange, SST, 3-in. (76 mm), ANSI Class 150, vertical mount 316 SST drain/vent |
★ |
| FD |
Level flange, SST, 3-in. (76 mm), ANSI Class 300, vertical mount 316 SST drain/vent |
★ |
| FP |
DIN level flange, SST, DN 50, PN 40, vertical mount 316 SST drain/vent |
★ |
| FQ |
DIN level flange, SST, DN 80, PN 40, vertical mount 316 SST drain/vent |
★ |
| HK(13) |
DIN compliant traditional flange, SST, .4 in. (10 mm) adapter/manifold bolting 316 SST |
|
| HL |
DIN compliant traditional flange, SST, .5 in. (12 mm) adapter/manifold bolting 316 SST |
|
| Manifold assembly(14) |
| S5 |
Assemble to Rosemount 305 Integral Manifold |
★ |
| S6 |
Assemble to Rosemount 304 Manifold or Connection System |
★ |
| Integral mount primary element(13)(14) |
| S3 |
Assemble to Rosemount 405 Compact Orifice Plate |
★ |
| S4(15) |
Assemble to Rosemount Annubar™ or Rosemount 1195 Integral Orifice |
★ |
| Seal assemblies(14) |
| S1(16) |
Assemble to one Rosemount 1199 seal |
★ |
| S2(17) |
Assemble to two Rosemount 1199 seals |
★ |
| Mounting bracket(18) |
| B4 |
Coplanar flange bracket, all SST, 2-in. pipe and panel |
★ |
| B1 |
Traditional flange bracket, CS, 2-in. pipe |
★ |
| B2 |
Traditional flange bracket, CS, panel |
★ |
| B3 |
Traditional flange flat bracket, CS, 2-in. (51 mm) pipe |
★ |
| B7 |
Traditional flange bracket, B1 with SST bolts |
★ |
| B8 |
Traditional flange bracket, B2 with SST bolts |
★ |
| B9 |
Traditional flange bracket, B3 with SST bolts |
★ |
| BA |
Traditional flange bracket, B1, all SST |
★ |
| BC |
Traditional flange bracket, B3, all SST |
★ |
| Product certifications |
| E8 |
ATEX Flameproof and Dust Certification |
★ |
| I1(19) |
ATEX Intrinsic Safety and Dust |
★ |
| IA |
ATEX FISCO Intrinsic Safety; for FOUNDATION Fieldbus or PROFIBUS PA Protocol only |
★ |
| N1 |
ATEX Type n Certification and Dust |
★ |
| K8 |
ATEX Flameproof, Intrinsic Safety, Type n, Dust (combination of E8, I1 and N1) |
★ |
| E4(20) |
TIIS Flame-proof |
★ |
| E5 |
FM Explosion-proof, Dust Ignition-Proof |
★ |
| I5(21) |
FM Intrinsically Safe, Nonincendive |
★ |
| IE |
FM FISCO Intrinsically Safe; for FOUNDATION Fieldbus or PROFIBUS PA Protocol only |
★ |
| K5 |
FM Explosion-proof, Dust Ignition-Proof, Intrinsically Safe, and Division 2 |
★ |
| C6 |
CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2 |
★ |
| E6 |
CSA Explosion-proof, Dust Ignition-proof, Division 2 |
★ |
| I6(9) |
CSA Intrinsic Safety |
★ |
| K6 |
CSA and ATEX Explosion-proof, Intrinsically Safe, and Division 2 (combination of C6, E8, and I1) |
★ |
| E7 |
IECEx Flameproof, Dust Ignition-proof |
★ |
| I7 |
IECEx Intrinsic Safety |
★ |
| N7 |
IECEx Type n Certification |
★ |
| K7 |
IECEx Flame-proof, Dust Ignition-proof, Intrinsic Safety, and Type n (combination of I7, N7, and E7) |
★ |
| E2 |
INMETRO Flameproof |
★ |
| I2 |
INMETRO Intrinsic Safety |
★ |
| IB |
INMETRO FISCO intrinsically safe; for FOUNDATION Fieldbus or PROFIBUS PA Protocols only |
★ |
| K2 |
INMETRO Flameproof, Intrinsic Safety |
★ |
| E3 |
China Flameproof |
★ |
| I3 |
China Intrinsic Safety |
★ |
| N3 |
China Type n |
★ |
| EM |
Technical Regulations Customs Union (EAC) Flameproof |
★ |
| IM |
Technical Regulations Customs Union (EAC) Intrinsic Safety |
★ |
| KM |
Technical Regulations Customs Union (EAC) Flameproof and Intrinsic Safety |
★ |
| KB |
FM and CSA Explosion-proof, Dust Ignition Proof, Intrinsically Safe, and Division 2 (combination of K5 and C6) |
★ |
| KD |
FM, CSA, and ATEX Explosion-proof, Intrinsically Safe (combination of K5, C6, I1, and E8) |
★ |
| EP(22) |
Republic of Korea Flameproof |
★ |
| IP(23) |
Republic of Korea Intrinsic Safety |
★ |
| KP(24) |
Republic of Korea Flameproof, Intrinsic Safety |
★ |
| Drinking water approval(25) |
| DW |
NSF drinking water approval |
★ |
| Shipboard approvals(8) |
| SBS |
American Bureau of Shipping |
★ |
| SBV(26) |
Bureau Veritas (BV) |
★ |
| SDN |
Det Norske Veritas |
★ |
| SLL(26) |
Lloyds Register (LR) |
★ |
| Custody transfer(27) |
| C5 |
Measurement Canada Accuracy Approval (limited availability depending on transmitter type and range; contact an Emerson representative). |
★ |
| Bolting material |
| L4 |
Austenitic 316 SST bolts |
★ |
| L5 |
ASTM A 193, grade B7M bolts |
★ |
| L6 |
Alloy K-500 bolts |
★ |
| Display and interface options |
| M4(28) |
LCD display with LOI |
★ |
| M5 |
LCD display |
★ |
| Calibration certificate |
| Q4 |
Calibration Certificate |
★ |
| QG(29) |
Calibration Certificate and GOST Verification Certificate |
★ |
| QP |
Calibration certification and tamper evident seal |
★ |
| Material traceability certification |
| Q8 |
Material Traceability Certification per EN 10204 3.1 |
★ |
| Quality certification for safety (27) |
| QS |
Prior-use certificate of FMEDA data |
★ |
| QT |
Safety certified to IEC 61508 with certificate of FMEDA |
★ |
| Configuration buttons |
| D4(27) |
Analog zero and span |
★ |
| DZ(30) |
Digital zero trim |
★ |
| Transient protection(8) (31) |
| T1 |
Transient protection terminal block |
★ |
| Software configuration(30) |
| C1 |
Custom software configuration (For wired, see the Rosemount 3051 Configuration Data Sheet. For wireless, see the Rosemount 3051 Wireless Configuration Data Sheet.) |
★ |
| Low power output |
| C2 |
0.8–3.2 Vdc output with digital signal based on HART Protocol (available with output code M only) |
★ |
| Gage pressure calibration |
| C3 |
Gage calibration (Rosemount 3051ca4 only) |
★ |
| Alarm levels(27) |
| C4(32) |
Analog output levels compliant with NAMUR recommendation NE 43, alarm high |
★ |
| CN(32) |
Analog output levels compliant with NAMUR recommendation NE 43, alarm low |
★ |
| CR |
Custom alarm and saturation signal levels, high alarm (requires C1 and Rosemount 3051 Configuration Data Sheet) |
★ |
| CS |
Custom alarm and saturation signal levels, low alarm (requires C1 and Rosemount 3051 Configuration Data Sheet) |
★ |
| CT |
Rosemount standard low alarm |
★ |
| Pressure testing |
| P1 |
Hydrostatic testing with certificate |
|
| Cleaning process area |
| P2 |
Cleaning for special service |
|
| P3(33) |
Cleaning for < 1 ppm chlorine/fluorine |
|
| Flange adapters (34) |
| DF |
½–14 NPT flange adapter(s) |
★ |
| Vent/drain valves |
| D7 |
Coplanar flange without drain/vent ports |
|
| DC |
Ports left open - None |
|
| Conduit plug(8) |
| DO |
316 SST conduit plug |
★ |
| RC¼ RC½ process connection(35) |
| D9 |
RC¼ flange with RC½ flange adapter - SST |
|
| Max static line pressure |
| P9 |
4500 psig (310,26 bar) static pressure limit (Rosemount 3051CD Ranges 2–5 only) |
★ |
| Ground screw(8)(36) |
| V5 |
External ground screw assembly |
★ |
| Surface finish |
| Q16 |
Surface finish certification for sanitary remote seals |
★ |
| Toolkit total system performance reports |
| QZ |
Remote seal system performance calculation report |
★ |
| Conduit electrical connector(8) |
| GE |
M12, 4-pin, male connector (eurofast®) |
★ |
| GM |
A size mini, 4-pin, male connector (minifast®) |
★ |
| NACE® certificate(37) |
| Q15 |
Certificate of Compliance to NACE MR0175/ISO 15156 for wetted materials |
★ |
| Q25 |
Certificate of Compliance to NACE MR0103 for wetted materials |
★ |
| Cold temperature(38) |
| BR5(39) |
–58 °F (–50 °C) cold temperature operation |
★ |
| BR6(40) |
–76 °F (–60 °C) cold temperature operation |
★ |
| HART revision configuration (requires HART Protocol output code A)(3) |
| HR5 |
Configured for HART Revision 5 |
★ |
| HR7 |
Configured for HART Revision 7 |
★ |
| Typical Model Number: 3051CD 2 A 2 2 A 1 A B4 |
|
Good Service in WTL:
> We offer high quality, fast delivery, competitive price for Mitsubishi Servo Motor and Servo Drive.
> Please send your RFQ to get the latest price.
> Normally, we will ship the items in 1-2 weeks after receive the payment.
> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways.
> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate.
If needed, please contact us for specific prices.
OUR MAIN BRAND:
Your message must be between 20-3,000 characters!
