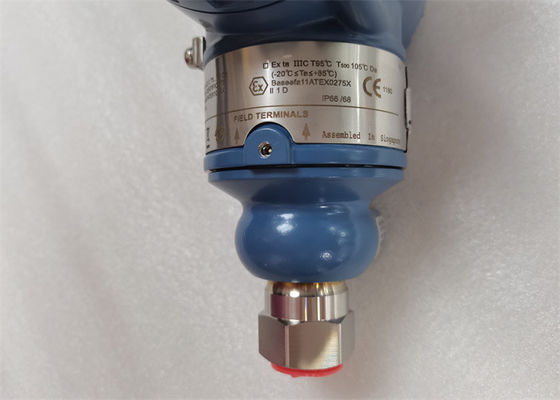

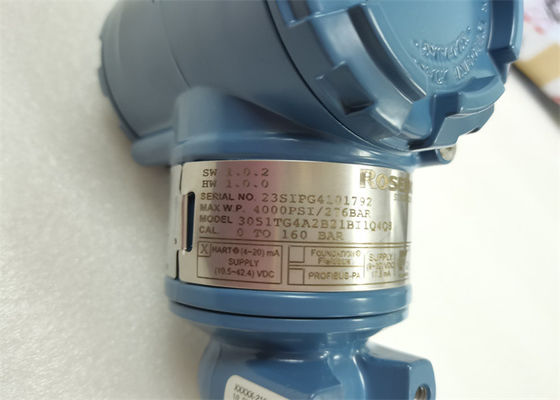

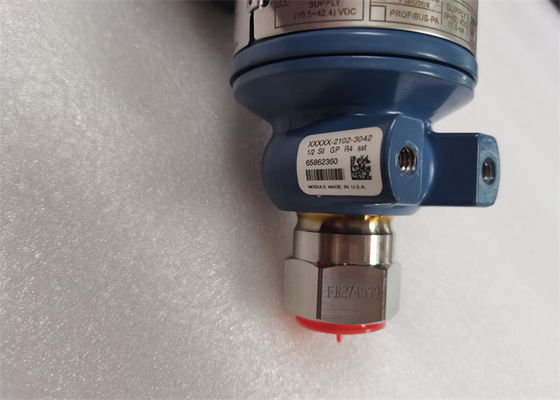

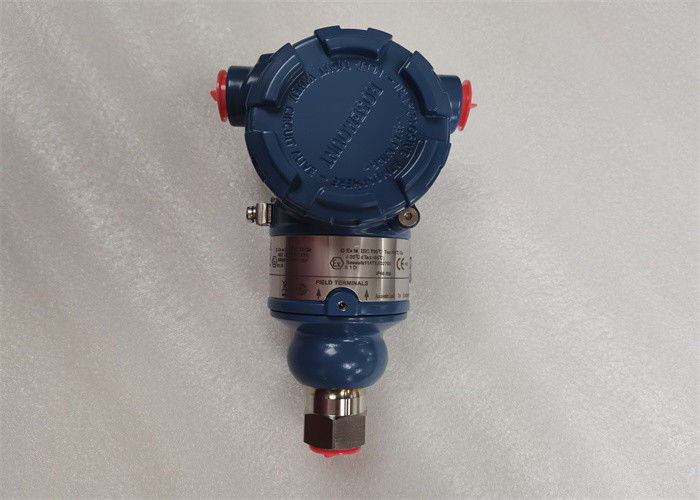

3051TG4A2B21BI1Q4Q8 Rosemount 3051T Pressure Transmitter 4-20 mA with digital signal

Description of  3051TG4A2B21BI1Q4Q8 Rosemount 3051T Pressure Transmitter

Quick Detail of 3051TG4A2B21BI1Q4Q8

• Output
• 4-20 mA with digital signal based on HART Protocol
• Low Power, 1-5 V dc with digital signal based on HART Protocol
• Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional
• Range
• 0-0.3 to 0-10,000 psig
• Accuracy
• 1-4: +/-0.04% of span
• 5: +/-0.075% of span
• Power
• 4-20 mA: 10.5-42.4 V dc with no load
• Low Power: 6-12 V dc with no load
• Materials
• Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum
• Fluid
• Sensor fill fluid: Silicone, Inert (Halocarbon)
• Mounting
• Coplanar and Traditional flanges
• Adapters: Cadmium and Nickel-plated CS, 316 SST

• Rangedown

  Up to 150:1

  Communication Protocol

  4-20 MA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART®

  Measurement Range

  Up to 20000 psig (1378,95 bar) gage
  Up to 20000 psia (1378,95 bar) absolute

  Process Wetted Material

  316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated 316L SST, Gold-plated Alloy 400

  Diagnostics

  Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics

  Certifications/Approvals

  SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications

  Wireless Update Rate

  1 sec. to 60 min., user selectable

  Power Module Life

  Up to 10-year life, field replaceable (order separately)

  Wireless Range

  Internal antenna (225 m)



Features

In-line gage and absolute pressure measurements support up to 20,000 psi (1378,95 bar) for pressure or level solutions

Application specific configuration allows you to transform your pressure transmitter into a level transmitter with volume calculations

Complete pressure or level assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation

10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibility

Bluetooth® wireless connectivity unlocks a far simpler process to perform maintenance and service tasks without the need for a physical connection or separate configuration tool

The graphical, back-lit display allows for easy operation in 8 different languages in all lighting conditions

Loop Integrity and Plugged Impulse Line diagnostics detect electrical loop issues and plugged impulse piping before it impacts the quality of the process for increased safety and reduced downtime

Quick service buttons offer built-in configuration buttons for streamlined commissioning

SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations

Wireless Features

WirelessHART® technology is secure and cost-effective and delivers >99% data reliability

SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal

Easy installation enables quick instrumentation of measurement points without the cost of wiring
