GE FANUC IC693APU300 500 MA AT 10-30 VDC OR 20 MA AT 4.75 TO 6 VDC OUTPUT RATINGS

GE FANUC IC693APU300 500 MA AT 10-30 VDC OR 20 MA AT 4.75 TO 6 VDC OUTPUT RATINGS

Technical Specifications for IC693APU300

Brand GE Fanuc
Series Series 90-30
Manufacturer GE Fanuc
Manufacturer GE Fanuc (Former); Emerson Automation (Current)
Part Number IC693APU300
Series Series 90-30
Product Description High-Speed Counter (HSC) module
No of input channels Twelve (12) source inputs
No of input channels Twelve (12) positive logic inputs
Product Description High Sped counter module
Input voltage 5 VDC; 10-30 VDC
Input signal voltage 5 VDC; 10VDC - 30 VDC
Maximum Count Rate 80 kiloHertz
Input frequency 8 kHz
Minimum Count Rate 20 kiloHertz
Input count frequency 80 kHz
Output ratings 10 to 30 VDC @ 500 mA maximum; 4.75 to 6 VDC @ 20 mA maximum
No. of output channels Four (4) Positive Logic outputs
Input/Output Type Positive Logic
No. of Logic Inputs 12
Output voltage range 4.75 VDC - 6 VDC; 10-30 VDC

Maximum count rate up to 200 kHz
Output protection Short circuit protection
Input Voltage Range 5 Volts DC, 10-30 Volts DC
Module operating voltage 5 VDC sourced from the backplane
Current draw 250 mA at 5VDC
No. Logic Outputs 4
CMOS Load Drive Capability Yes
Output Voltage Range 4.7 to 40 Volts DC
Counter modes Up; Down; bi-directional; Differential
LED indicators BOARD OK and CONFIG OK
Compatible applications metering, flowmeter and flow totalizing, velocity measurement, material handling, motion

and process control applications.
Output Protection 3 Amps Fuse for all points
Output Points Powered by user supplied 5V, or 10 to 30 VDC
Applications supported Turbine flowmeter, Meter proving, Velocity measurement, Material handling, Motion control,

and Process control.
LED indicators BOARD OK; CONFIG OK
Isolation 250 Volts AC
Product Lifecycle Status Discontinued/Obsolete
Power Consumption 250 mA at 5 Volts DC

Product Lifecycle Status* Discontinued/Obsolete







About IC693APU300

The IC693APU300 is a High-Speed Counter (HSC) module that belongs to the Series 90-30 PLC Platform that is formerly

produced by GE Fanuc Automation, however, recently acquired by Emerson Automation. This HSC module is specially designed

for use in a variety of processes but not limited to Turbine flowmeter, Meter proving, Velocity measurement, Material handling,

Motion Control, and Process Control. For metering applications, this HSC module can be used to generate the totalized supplied

or received material which can be a reference of billing and payment or simply for monitoring consumption and operation

efficiency. For motion control, this module can be used to pair with encoders, accepting high-speed, low-level voltage signals

that represent the position or the amount of motion that the load has traveled which can be a reference of control. In

Material handling applications, this module can be used for rapid counting of products to implement accurate sorting of

materials and goods produced. With process control, the module can be used to measure high-speed Process Variables

such as magnetic speed pickups. The IC693APU300 features Twelve (12) Positive logic inputs, operating at 5VDC or 10-30

VDC signal voltages. It also has Four (4) Positive Logic outputs that generate 500 mA at 10-30 VDC or 20 mA at 4.75 to

6 VDC rated output voltages. This high-speed counter module has a maximum count rate of 200 kHz and accepts a signal

switching frequency of up to 8 kHz. This module is categorized as an option module therefore, it can be installed to any

available I/O slots of Series 90-30 baseplates.

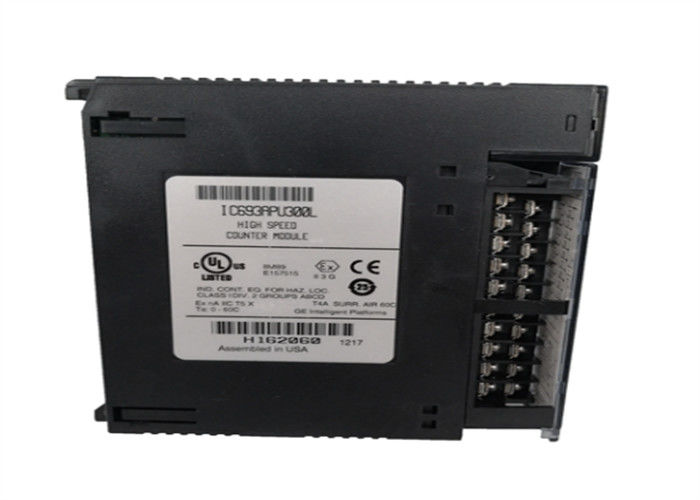

The GE IC693APU300 High-Speed Counter Module is a single-slot counter module from GE Fanuc. It is suitable to use in

applications such as Turbine flowmeter, Meter proving, Velocity measurement, Material handling, Motion control, and Process

control. The main benefit of this counter module is that it is capable of processing rapid signal pulses that are rated at up

to 80 kiloHertz of frequency. This high-speed counter module can sense inputs and outputs as well as count input and

output responses without communicating with the CPU. The IC693APU300 High-Speed Counter Module can count both up

and down and it can count the difference between 2 changing values. In order to indicate the operating status and

configuration parameter’s status, the module has 2 green LEDs on its top face.

The IC693APU300 High-Speed Counter Module can be arranged to have 4 identical independent simple counters, 1 complex

counter, and 2 identical independent complex counters. Some of the features of this high-speed counter module include

counts per time-based register for each counter, a removable terminal board for field wiring, and internal module diagnostics.

The power for the module is drawn from the 5 Volts DC rated Bus of the PLC backplane. The IC693APU300 High-Speed

Counter Module can be installed in any Series 90-30 baseplate. Never install this module in an enclosure that is only accessible

with the use of tools. This module cannot be removed or replaced without shutting down the PLC properly. It can be

configured by using the Logicmaster 90-30/20, Hand-Held Programmer, Logic Developer-PLC, or VersaPro software. This

module can be used in industrial applications which have pulse input rates that exceed the input capability of the PLC such

as meter proving, material handling, velocity measurement, motion control, and turbine flow meter applications.
