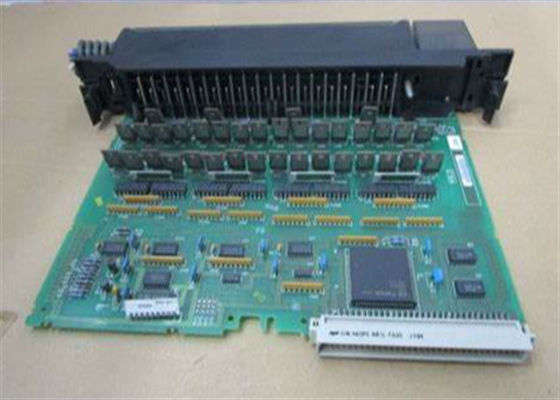

GE FANUC IC693BEM331 SERIES 90-30 PROGRAMMABLE LOGIC CONTROLLER (PLC)

GE FANUC IC693BEM331 SERIES 90-30 PROGRAMMABLE LOGIC CONTROLLER (PLC)

Technical Specifications for IC693BEM331

Brand GE Fanuc
Series Series 90-30
Part Number IC693BEM331
Current consumption <300mA at +5V DC
Number of LEDs 2 (OK and COMM OK)
Power Supply 5 V DC from the Series 90-30 Backplane
Module Type Genius Bus Interface

Compatible Systems IC693CPU311K, 321K, 331L or later, or any version of the IC693CPU313, 323, 340, 341, 350, 351, 352,

360, 363, and 364.
Compatible Series 90-30 controllers IC693CPU311K, 321K, 331L or later, or any version of the IC693CPU313, 323, 340, 341,

350, 351, 352, 360, 363, and 364. The CPU
Compatible Series 6 controllers IC660CBB902F/903F
Type of component Genius Bus Interface for Series 90-30 PLC
Number of I/Os 31 Maximum
Maximum Data Rate 128 bytes
IP rating IP 20







About IC693BEM331

The IC693BEM331 is a Bus Controller Module that is part of the GE Sires 90-30 Programmable Logic Controller (PLC) product

family. This module is manufactured by GE Fanuc Automation, for interfacing a Series 90-30 PLC to the proprietary Genius I/O

bus. This bus controller module is capable of communicating with Genius blocks such as discrete, analog, and special purpose

field devices. It also supports communication with Remote I/O drops consisting of Series 90-70 I/O racks connected via Remote

I/O scanner modules, Field control I/O station via Bus interface unit wherein up to Eight (8) additional field control modules is

supported, Genius Hand-Held Monitor, and a variety of Hosts.

A Series 90-30 PLC system may be installed with up to Eight (8) Genius Bus Controllers or enhanced Genius Communications

Modules. The achieve this configuration, the required firmware of the Series 90-30 PLC is Firmware 5.0 or later.

The IC693BEM331 is equipped with a variety of Status LEDs installed on the module’s front panel. These LEDs include OK and

COM LED. The normal operation of the OK LED is steady on-state. This LED remains ON after power-up diagnostics are

completed. The COM LED is steadily ON when the bus controller module is actively communicating and blinks for intermittent

bus connection and error.

Compatible Series 90-30 PLC for use with the IC693BEM331 Bus Controller are IC693CPU311K, 321K, 331L or later and any

version of the IC693CPU313, 323, 340, 341, 350, 351, 352, 360, 363, and 364. Required firmware for use is version 5.0 or later.

The GE Fanuc IC693BEM331 Bus Controller is able to handle a maximum of 128 bytes of incoming and outgoing data from the

field devices on the Bus. The configuration of the GE Fanuc IC693BEM331 Bus Controller is done through an additional

proprietary GE Fanuc handheld monitor. Some of the I/O device types that can send and receive data to a Series 90-30 PLC

that is using the GE Fanuc IC693BEM331 Bus Controller as a communication interface include discrete I/O devices such as

solenoid valves, motor starters, and limit switches or analog I/O devices such as pressure transmitters and temperature sensors.

The manufacturer recommends mounting the GE Fanuc IC693BEM331 Bus Controller inside a protective enclosure in order to

avoid direct contact with water, excess humidity, and extreme high and low extremes of temperatures. Any work requiring

maintenance on the circuitry should be carried out only by qualified personnel, because the mishandling of the equipment or

the incorrect connection of any its wiring can produce application process malfunctions, property damage, or serious injury.
