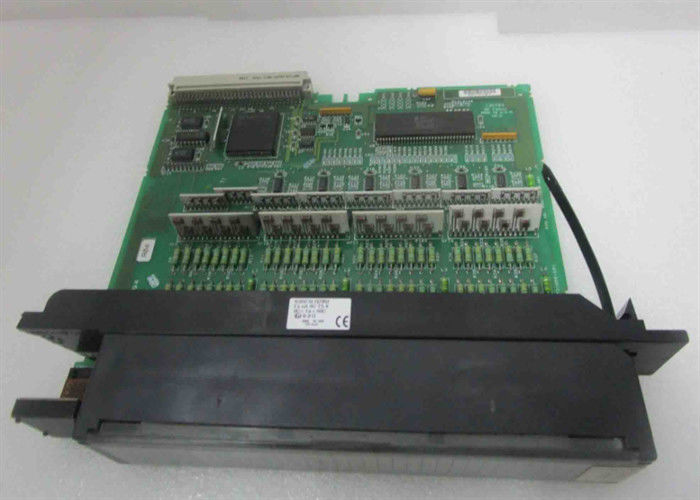

GE FANUC IC693CPU331 SERIES 90-30 PROGRAMMABLE LOGIC CONTROLLER (PLC)

GE FANUC IC693CPU331 SERIES 90-30 PROGRAMMABLE LOGIC CONTROLLER

Technical Specifications for IC693CPU331

Brand GE Fanuc
Series Series 90-30
Manufacturer GE Fanuc
Part Number IC693CPU331
Product Description Modular CPU
Product type CPU module
User memory 16 Kbytes
Processor type 80188
Compatibility GE Fanuc 90-30 PLCs
Clock speed 10 Megahertz
Typical scan rate 0.4 ms per 1K of Boolean logic
Microprocessor 80188
Processor speeds 10 MHz
Serial port 1
Expandable Yes

Discrete inputs 512
No. of extension baseplates Four (4) expansion baseplate; Four (4) Remote I/O baseplate
Discrete outputs 512
Discrete Input Points - %I 512
Operating temperature 32 to 140 degrees Fahrenheit
Discrete Output Points - %Q 512
Analog Inputs - %AI 128 Words
Analog Outputs - %AQ 64 words
Built-in Serial Ports 1 (uses connector on PLC power supply). Supports SNP slave and SNP-X slave protocols
Timers / Counters 680
Interrupts No
Shift register Yes
Current load: 350mA
Bus voltage: +5VDC



About IC693CPU331

The IC693CPU331 is a modular CPU that is part of the Series 90-30 PLC of GE Fanuc Automation. This CPU is equipped with a

80188 processor with processing speed of 10 MegaHertz. It is also capable of scanning 1K of Boolean logic in 0.4 milliseconds.

This CPU has 16Kbytes user memory that is sized to accommodate 512 Discrete input bits; 512 Discrete output bits; 128 Words

of Analog input and 64 Words of analog outputs. Additionally, this CPU has internal memory structures that is comprised of

1280 bits Discrete global memory; 1024 bits of internal coils; 256 bits of temporary coils; 128 bits of system status references;

2048 words of register memory and 16 Words of System registers. Additionally, there are 680 units of Timers / Counters

available to the CPU and supports Shift register instructions.

Compared to embedded CPUs, the IC693CPU331 modular CPU supports Override function and comes with a battery backed

clock. The default memory type available to this CPU is a Random Access Memory (RAM) type and may also be installed with

optional EPROM or EEPROM.

The IC693CPU331 can be installed in any CPU baseplate, whether 5-slot or 10-slot baseplate. It can only be installed to the

dedicated CPU slot which is slot 1. This module draws current from the backplane amounting to 350 mA @ 5VDC bus voltage.

As this modular CPU supports a larger amount of I/O, it supports I/O expansion with the use of up to Four (4) expansion

baseplate of Remote I/O baseplate.

The GE Fanuc IC693CPU331 module is a 10 megahertz CPU module for the GE Series 90-30 PLC systems. The IC693CPU331

module uses an 80188 series microprocessor. The operating temperature for the module is from 32 to 140 degrees Celsius.

The IC693CPU331 module occupies a single slot in a 5-slot baseplate and it draws 350 milliamps of current from the backplane

at 5 Volts DC input voltage. The typical scan rate for the module is 0.4 milliseconds per 1K of Boolean logic. There are 16 words

allocated for system registers which are for reference table viewing only and cannot be referenced in the user logic program.

The total number of timers and counters supported by the IC693CPU331 module is 680. The type of memory provided on the

module for data storage is RAM and optional EPROM or EEPROM.

The maximum user program memory is 16 kilobytes. The number of discrete input points is 512. The number of discrete output

points is 512. The discrete global memory is 1280 bits. The memory allocated for analog inputs and analog outputs is 128

words and 64 words, respectively. One built-in serial port is available on the IC693CPU331 module and this port is accessible

through the power supply PLC connector. The protocols supported by the serial port include the SNP slave and SNPX slave

protocols. A separate CMM module is required for SNP master SNP-X master, CCM, and RTU slave support. A separate PCM

module is required for RTU master support. An AD693CMM301 module provides 2 additional serial ports for the IC693CPU331

module. An SLP (State Logic Processor) is also compatible with the IC693CPU331 module and it can be used to provide

multi-tasking control.
