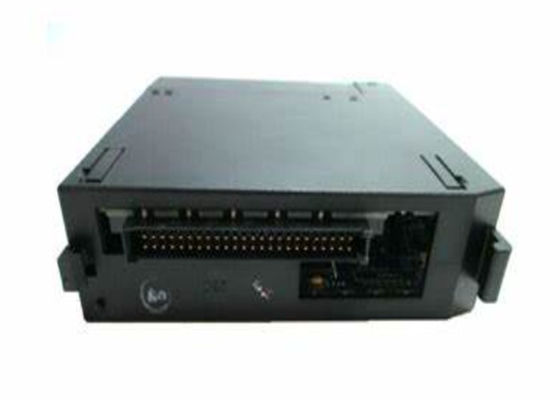

GE FANUC IC693CPU340 SERIES 90-30 PLC CPU module 20 Megahertz

GE FANUC IC693CPU340 SERIES 90-30 PLC CPU module 20 Megahertz

Technical Specifications for IC693CPU340



Brand GE Fanuc
Series Series 90-30
Part Number IC693CPU340
Product type CPU module
Clock speed 20 Megahertz
Microprocessor 80C188XL

Register memory 19.9 kilobytes
User program memory 32 kilobytes
I/O points 512
Current input 490 milliamps
Voltage input 5 Volts DC



About IC693CPU340



The IC693CPU340 module is a 20 Megahertz CPU module for the Series 90-30 PLC systems from GE Fanuc. The IC693CPU340

module is based on the 80C188XL processor. The input points and output points supported by the IC693CPU340 module are

512 of each. The total register memory is 19.9 kilobytes. The maximum user program memory is 32 kilobytes. The

IC693CPU340 module does not support floating point math. The IC693CPU340 module uses flash memory for user program

storage. Flash memory operations, including the read, write, and verify functions, are accessed from the Program Utilities

Function menu or from another Program Utilities screen in the Logicmaster 90-30, 20, or Micro programming software. The

State Logic Processor (SLP) module is installed in a Series 90-30 PLC ladder logic control system to provide real-time

multi-tasking control for machine applications.



The Series 90-30 SLP module can only be installed in a Series 90-30 PLC system that uses a model 331 CPU module, a model

340 CPU module like the IC693CPU340 module, or a model 341 CPU module. The number of 16-channel analog input modules

supported by the IC693CPU340 module is 12. The number of 2-channel analog voltage output modules supported by the

IC693CPU340 module is 30. The number of 2-channel current output modules supported by the IC693CPU340 module is 15.

The number of 8-channel output modules supported by the IC693CPU340 module is 32. The IC693CPU340 module supports

32 high-speed counter modules. The IC693CPU340 module supports 16 I/O processor modules. The current consumption of the

IC693CPU340 module is 490 milliamps at 5 Volts DC. The IC693CPU340 module is a modular CPU. GE Fanuc also manufactures

embedded CPUs which are comparatively more cost-effective but less powerful than the CPU modules.
