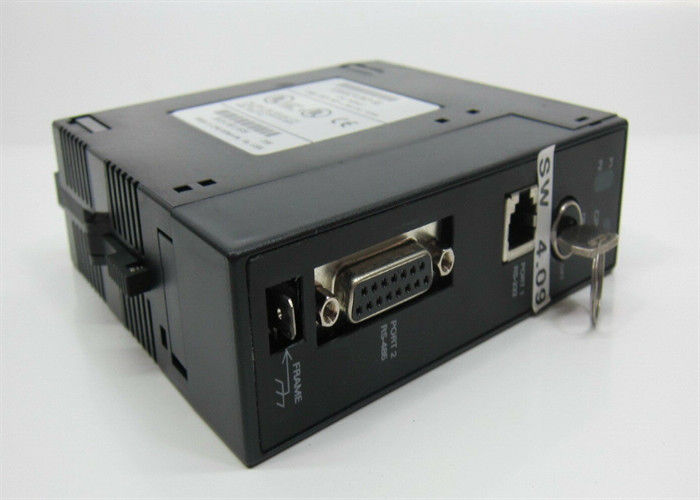

Ge Fanuc IC693CPU363 Typical Scan Rate Series 90-30 Processor Module

GE FANUC IC693CPU363 TYPICAL SCAN RATE SERIES 90-30 PROCESSOR MODULE



Technical Specifications for IC693CPU363



Series Series 90-30
Storage temperature -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit)
Operating temperature 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)
Number of Ethernet ports N/A
Type of Memory Storage RAM and Flash
Typical Scan Rate 0.22 milliseconds per 1K of logic (boolean contacts)
Serial port RS-485 (via power supply
Power requirements 890 Amps from +5 VDC supply
Register memory 240 kilobytes
CPU type Single slot CPU module

User memory 240K Bytes
Part Number IC693CPU363
Brand GE Fanuc
Product type CPU module
Compatibility GE Fanuc 90-30 PLCs
Serial ports 3
Clock speed 25 Megahertz
Microprocessor 80386EX
Discrete inputs 2048
Discrete outputs 2048





About IC693CPU360

The IC693CPU360 is a Programmable Logic Controller (PLC) module from the GE Fanuc 90-30 series. This

module is essentially a Central Processing Unit (CPU) module with the primary function of executing the

downloaded user program to the module’s 240Kbytes user memory. This processor is equipped with a 80386EX

microprocessor having a processor speed of 25 MegaHertz at a typical scan rate of 0.22 ms per 1K of logic for

Boolean contacts.

This CPU module does not come with a communication port however, for programming and communication

purposes, the RS485 communication port located on the power supply module may be used. This port is

accessed by opening the swing door of the power supply module which is situated at the left most of the

baseplate.

The IC693CPU360 is capable of controlling up to Eight (8) baseplates. These baseplates includes the local rack

where the CPU ins installed and Seven (7) baseplates acting as distributed or remote I/O system I/O. The

IC693CPU360 is a single slot CPU with backplane current draw of 670 milliamps from +5 VDC supply.

This CPU has a total memory of 240K Bytes where up to 2048 Discrete Input, 2048 Discrete output, 1280

Discrete Global memory, 4096 internal coils, 256 bits of temporary outputs. This controller supports Random

Access Memory (RAM) and Flash memory storage devices.

This controller may be configured using a variety of programming software application. This includes

LogicMaster90, Control, VersaPro and CIMPLICITY Machine Edition Logic Developer. It also supports

programming using the legacy Hand-Held Programmer (HHP).

The current draw of the IC693CPU360 module is 670 milliamps at 5 Volts DC. The CPU clock speed is 25

Megahertz. The IC693CPU360 module occupies a single slot in an 8-slot baseplate. The typical scan rate is 0.22

milliseconds for 1K of logic (Boolean contacts). Starting with the Release 9 firmware, the register memory ranges

from 128 to 16384 words in 128-word increments with Logicmaster and from 128 to 32640 words in Control version

2.2. For firmware versions prior to Release 9, the register memory size is fixed at 9999 words. Timers and counters

numbering in excess of 2000 are supported on the IC693CPU360 module. The CPU module comes with a single

integrated serial port which uses the connector on the PLC power supply.
