Technical Specifications for IC693MAR590

Brand GE Fanuc
Series Series 90-30
Part Number IC693MAR590
Number of channels 8 inputs/8 outputs
Rated input voltage 0 to 132 Volts AC
Rated output voltage 5 to 30 Volts DC / 5 to 250 Volts AC
Isolation voltage 1500 Volts RMS between field and logic side / 500 Volts RMS between inputs
Maximum output load 2 Amps

Maximum inrush 5 Amps
Response time 15 milliseconds
Power consumption 80 milliAmps from 5 Volts DC / 70 milli Amps from relay 24 Volts DC
ON-state voltage 74 to 132 Volts AC
OFF-state voltage 0 to 20 Volts AC
ON-state current 6 milliAmps
OFF-state current 2.2 milliAmps for the duration of 30 millis

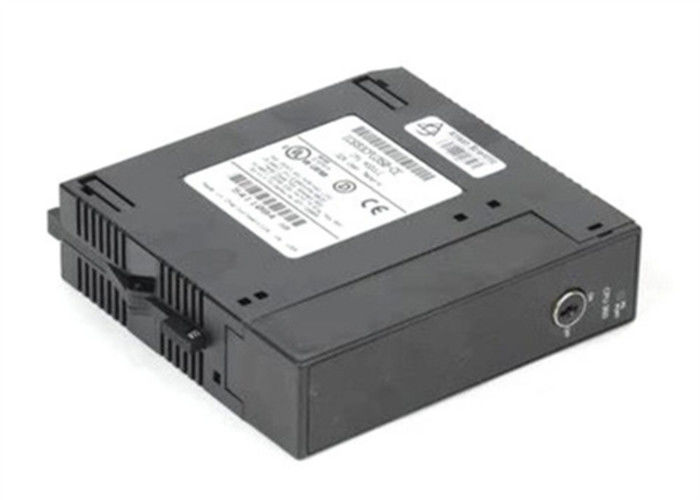

About IC693MAR590

The GE Series 90-30 IC693MAR590 industrial module is designed for use with the GE Series 90-30 programmable logic

controllers and it provides 8 input points along with 8 output points. This input and relay output module is made by GE Fanuc

and it operates on an input voltage range of 0 to 132 Volts AC. In addition to that, the unit has a rated output voltage of 5 to

30 Volts DC or 5 to 250 Volts AC. The IC693MAR590 module provides features like load device control, LED indicators, control

of the circuit wiring and identification, support for either a 5-slot or 10-slot baseplate, a response time of 15 milliseconds, and

many more.



The 120 Volts AC IC693MAR590 module has an isolation voltage of 1500 Volts RMS between the field and logic side and 500

Volts RMS between inputs. The maximum inrush current of the module is 5 Amps and its maximum output load is 2 Amps. The

maximum power consumption rating is 80 milliAmps of current at 5 Volts DC and 70 milliAmps of relay current of 24 Volts DC.

In addition to that, the IC693MAR590 module has an on-state voltage of 74 to 132 Volts AC and an off-state voltage of 0 to 20

Volts AC. The on-state current is 6 milliAmps while the off-state current is 2.2 milliAmps for 30 milliseconds. The high-voltage

IC693MAR590 module is equipped with a protective door that holds a card for data recording. The module can be installed into

any I/O slot and it can be used to control switches, buttons, and limit switches. The typical response when the module is turned

on is 30 milliseconds, and it is 45 milliseconds when the module is turned off.
